Rent NowProMaster Film & Negative Digitizing Kit
Camera-Based Film Scanning System – Precision Sliding Rail (545 cm Range), High-CRI LED Light (CRI 97 / TLCI 98, 5600K), Magnetic 35mm & 120 Medium Format Film Carriers, Arca-Type Mount with 1/4″-20 & 3/8″-16 Threads

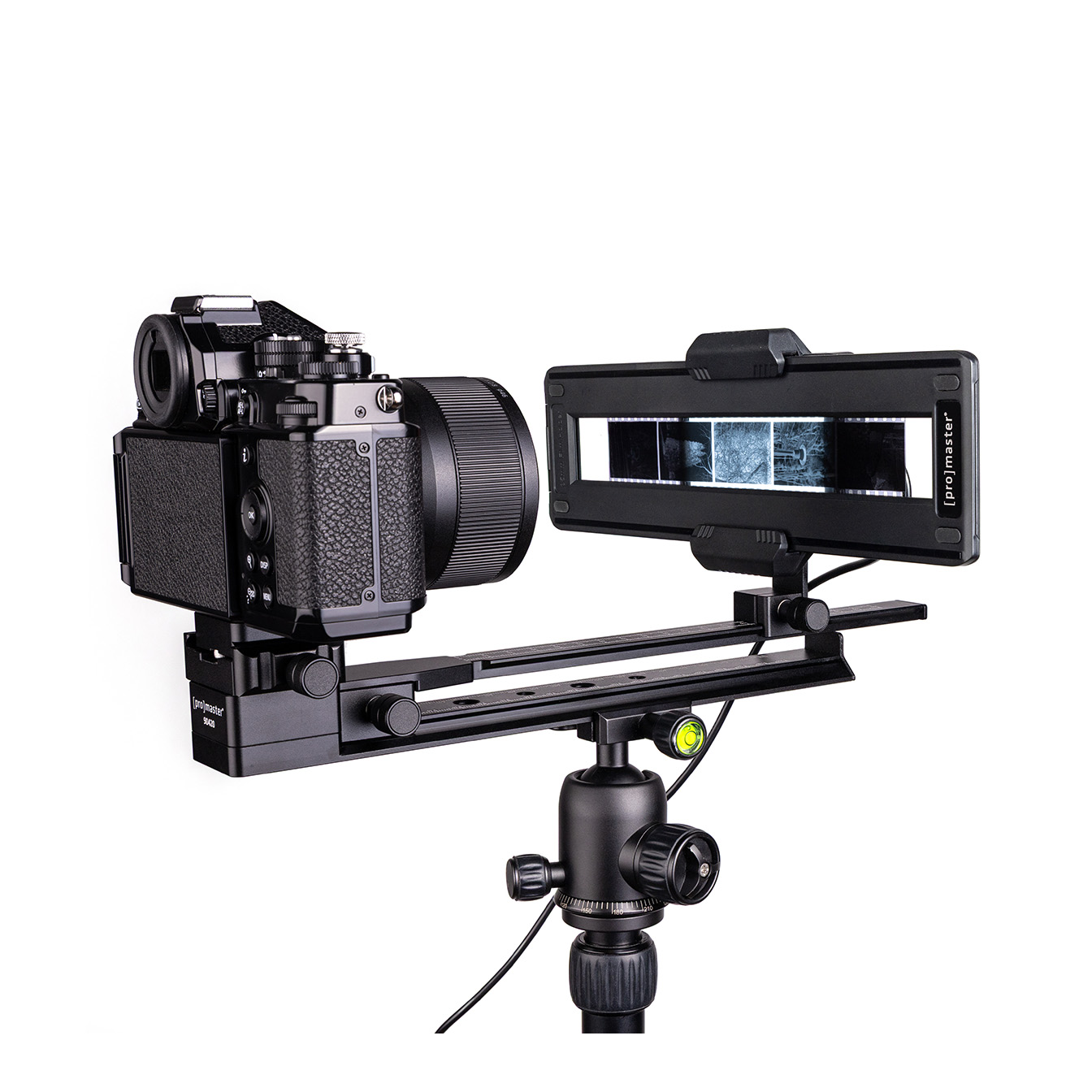

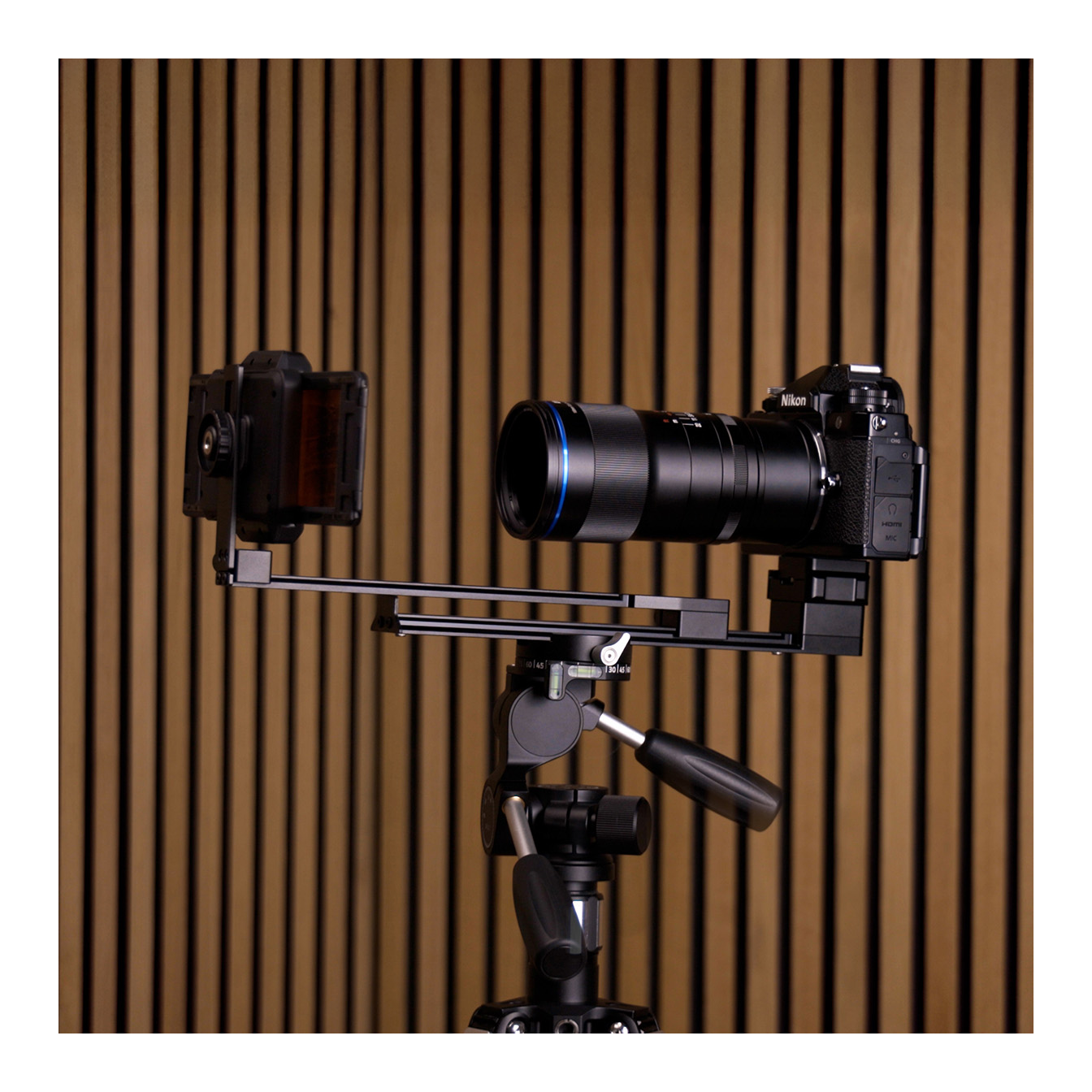

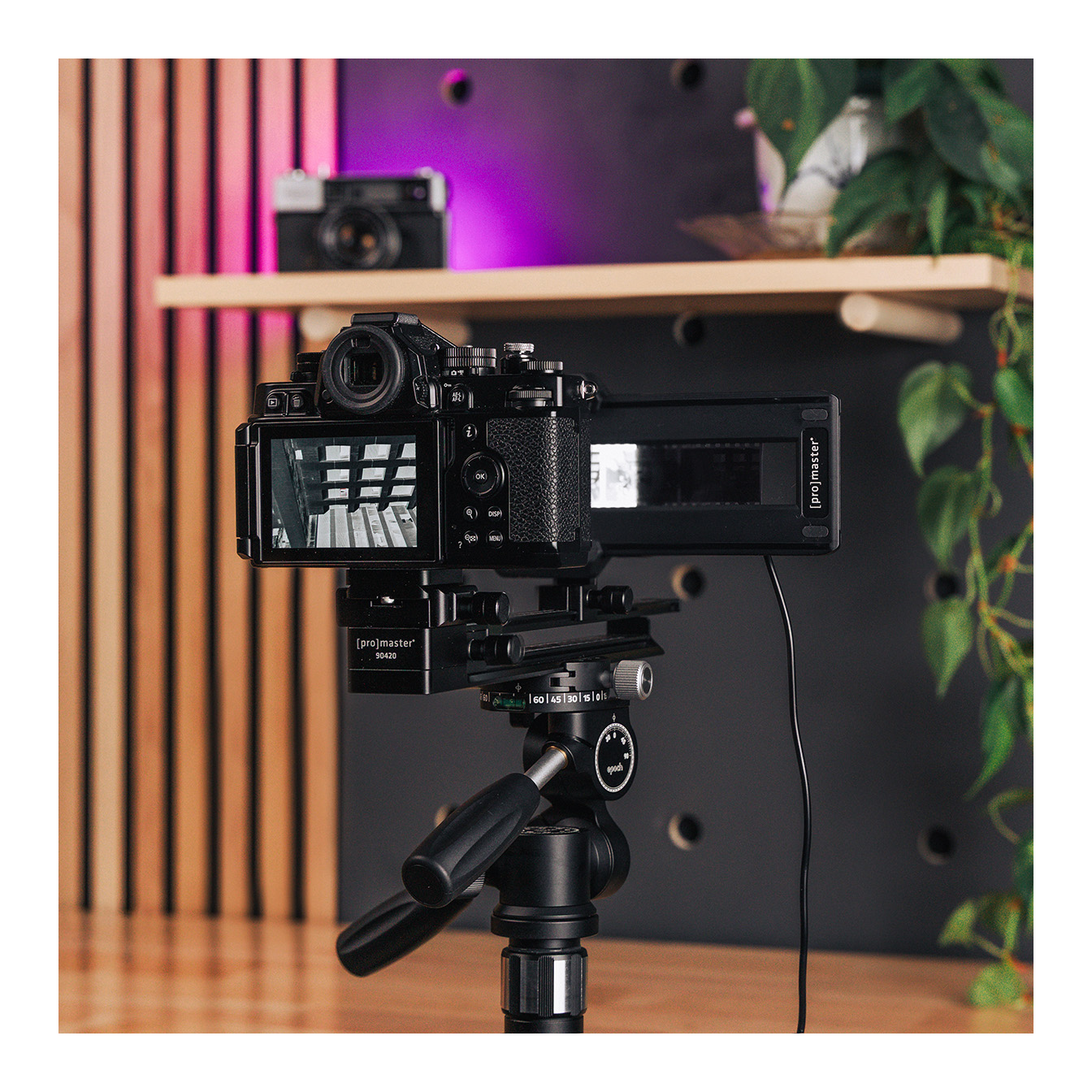

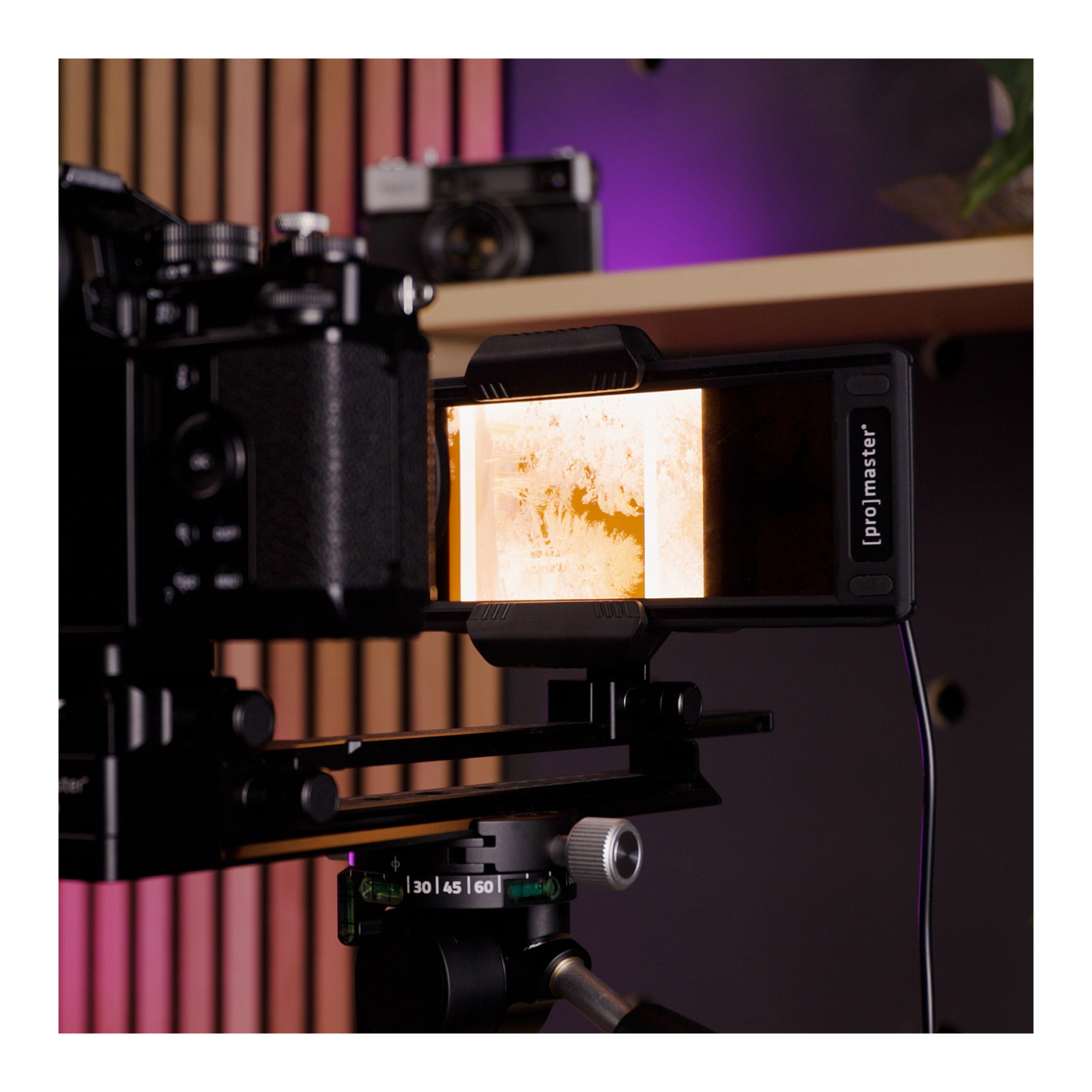

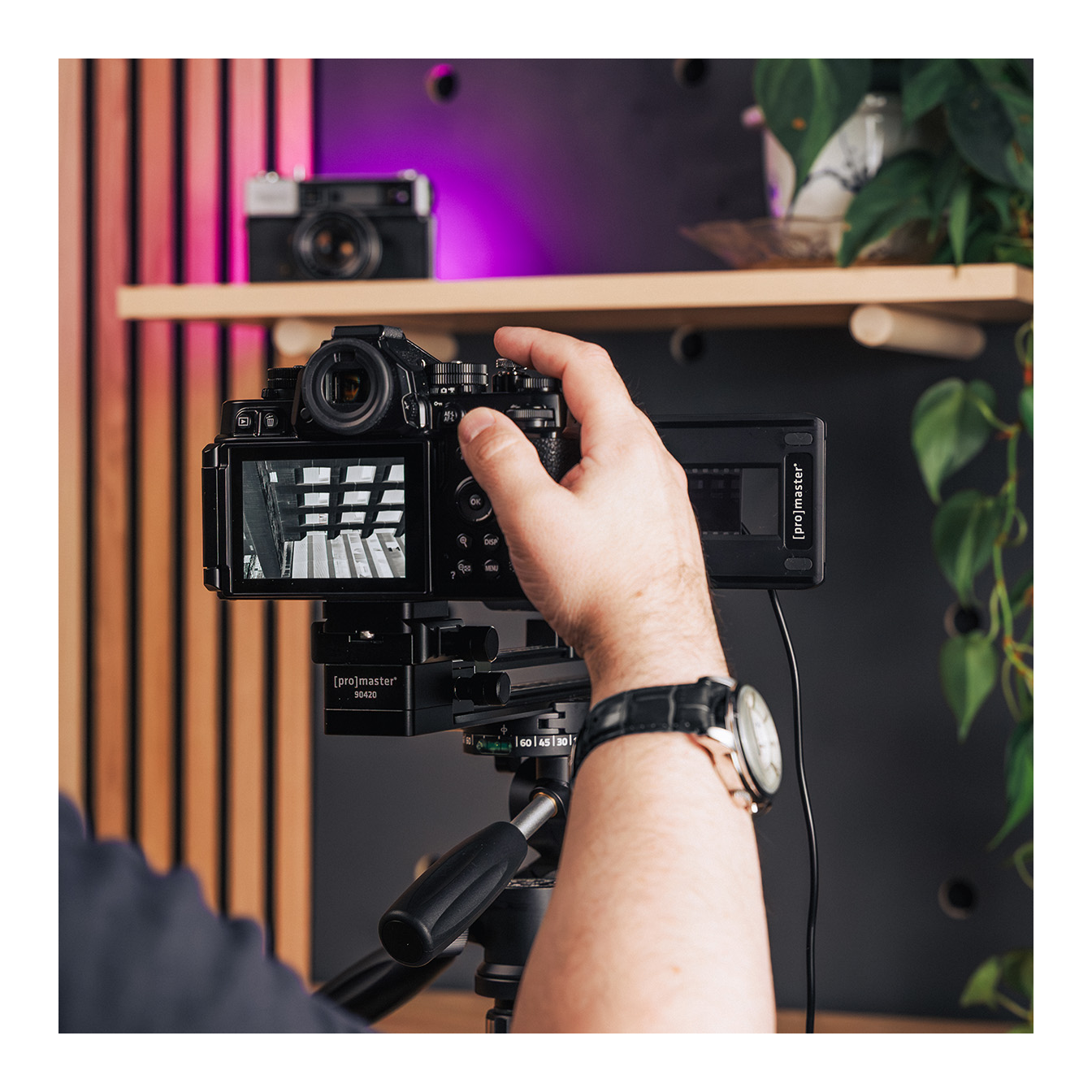

The ProMaster Film & Negative Digitizing Kit is a complete camera-based scanning system designed to transform your interchangeable lens DSLR or mirrorless camera and macro lens into a high-speed, high-resolution film scanner. Offering superior dynamic range, resolution, and color accuracy compared to slow flatbeds and legacy dedicated scanners, this system allows photographers to digitize 35mm and 120 medium format film strips at camera-shutter speeds using modern digital sensors and preferred post-processing software.

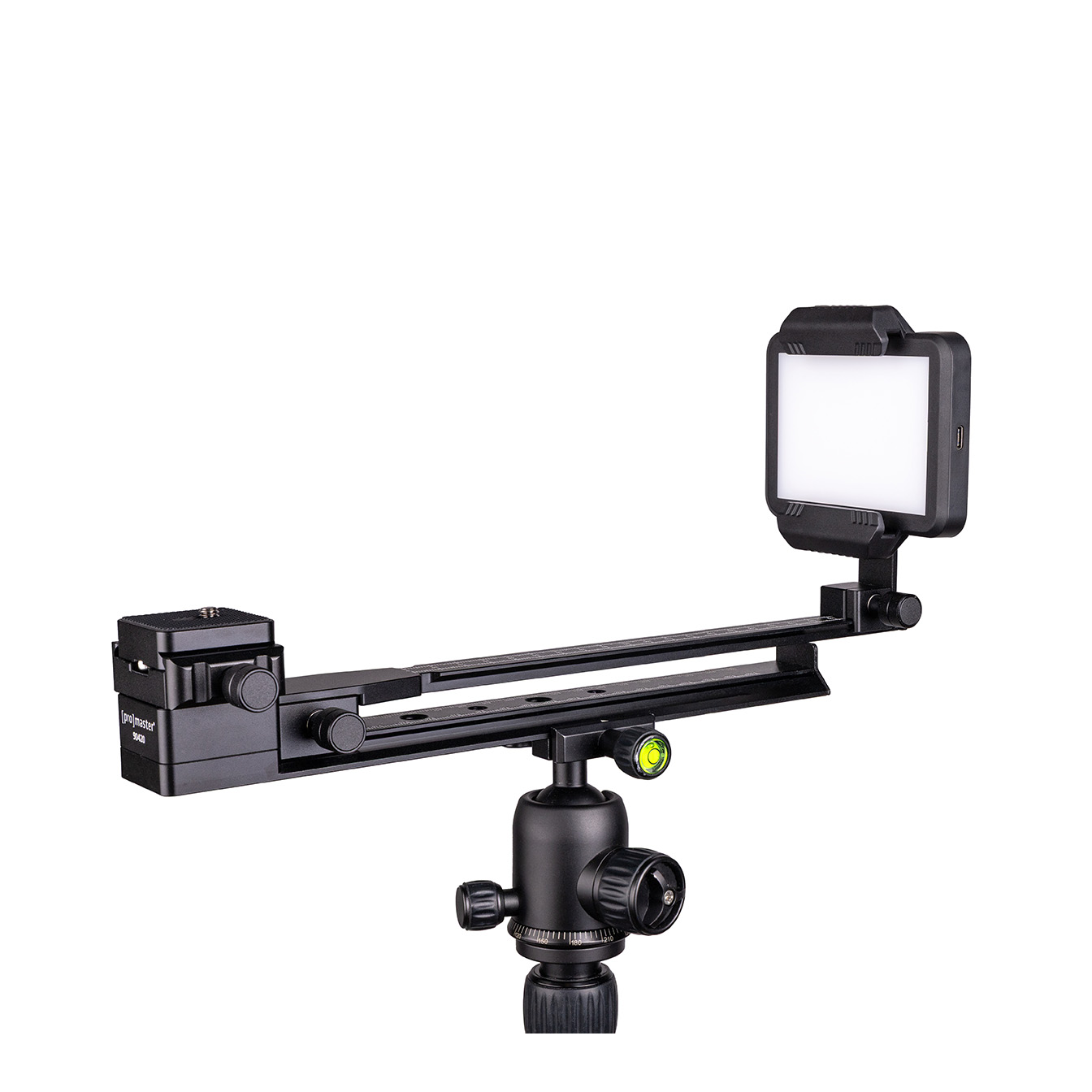

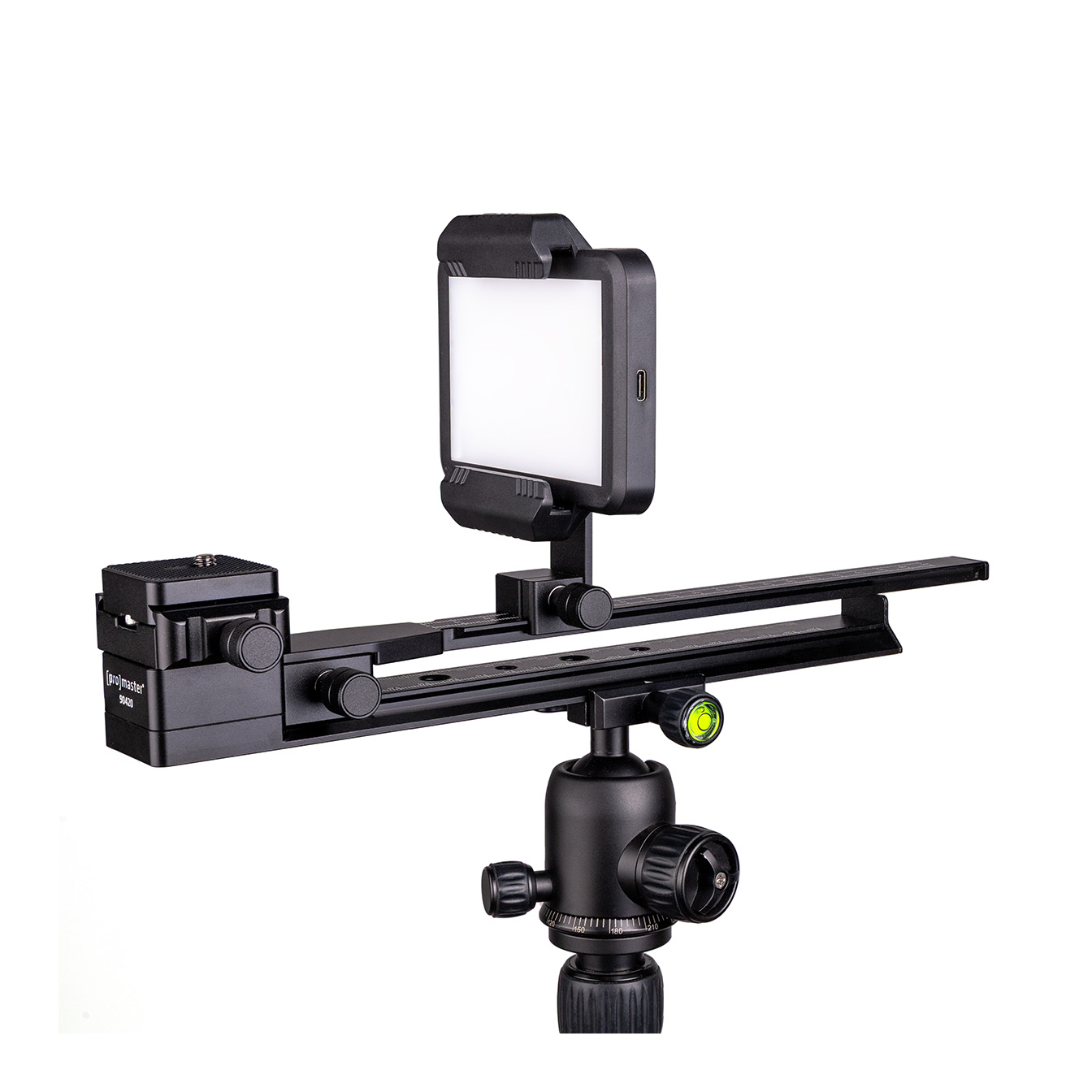

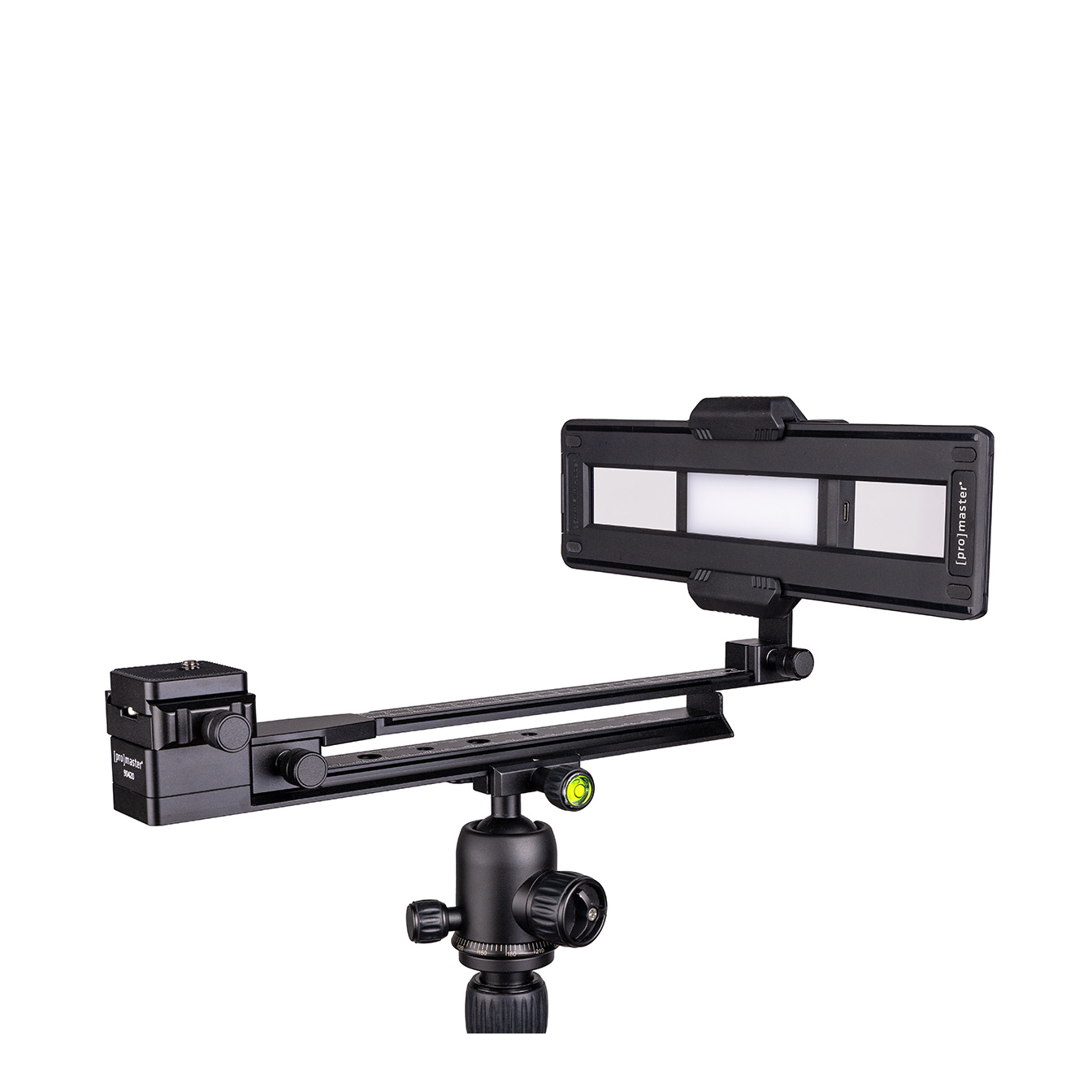

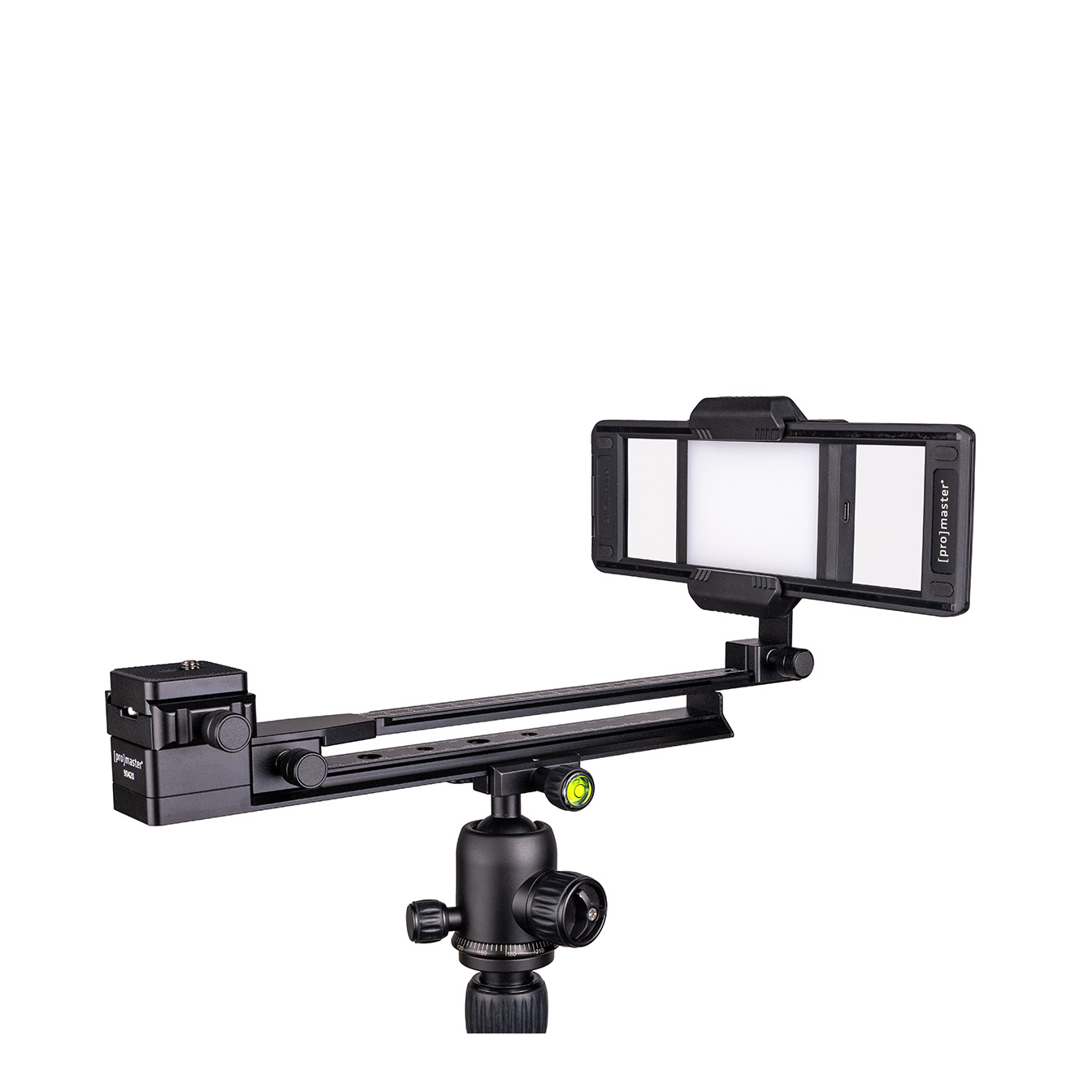

The kit centers around a CNC-machined aluminum sliding rail featuring laser-etched scale markings that adjust from 5 cm to 45 cm, allowing precise, repeatable framing distances between macro lenses and the film carrier. Illumination is provided by a daylight-balanced 5600K USB LED backlight delivering cinema-grade color fidelity (CRI 97 / TLCI 98) across 11 brightness levels. The system includes two magnetic film holders—one dedicated 35mm carrier (fits 6 exposures) and one 120 medium format carrier (fits 6×4.5, 6×6, 6×7, 6×8, or 6×9 formats)—both engineered with transparent backing to hold film flat without fragile mechanical tabs. The entire assembly integrates an Arca-type dovetail base with standard 1/4″-20 and 3/8″-16 tripod threads for seamless tripod or copy stand mounting.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
High-Resolution Camera Scanning: Leverages DSLR/mirrorless camera sensors and macro lenses to achieve ultra-sharp, high-dynamic-range film scans in seconds per frame.

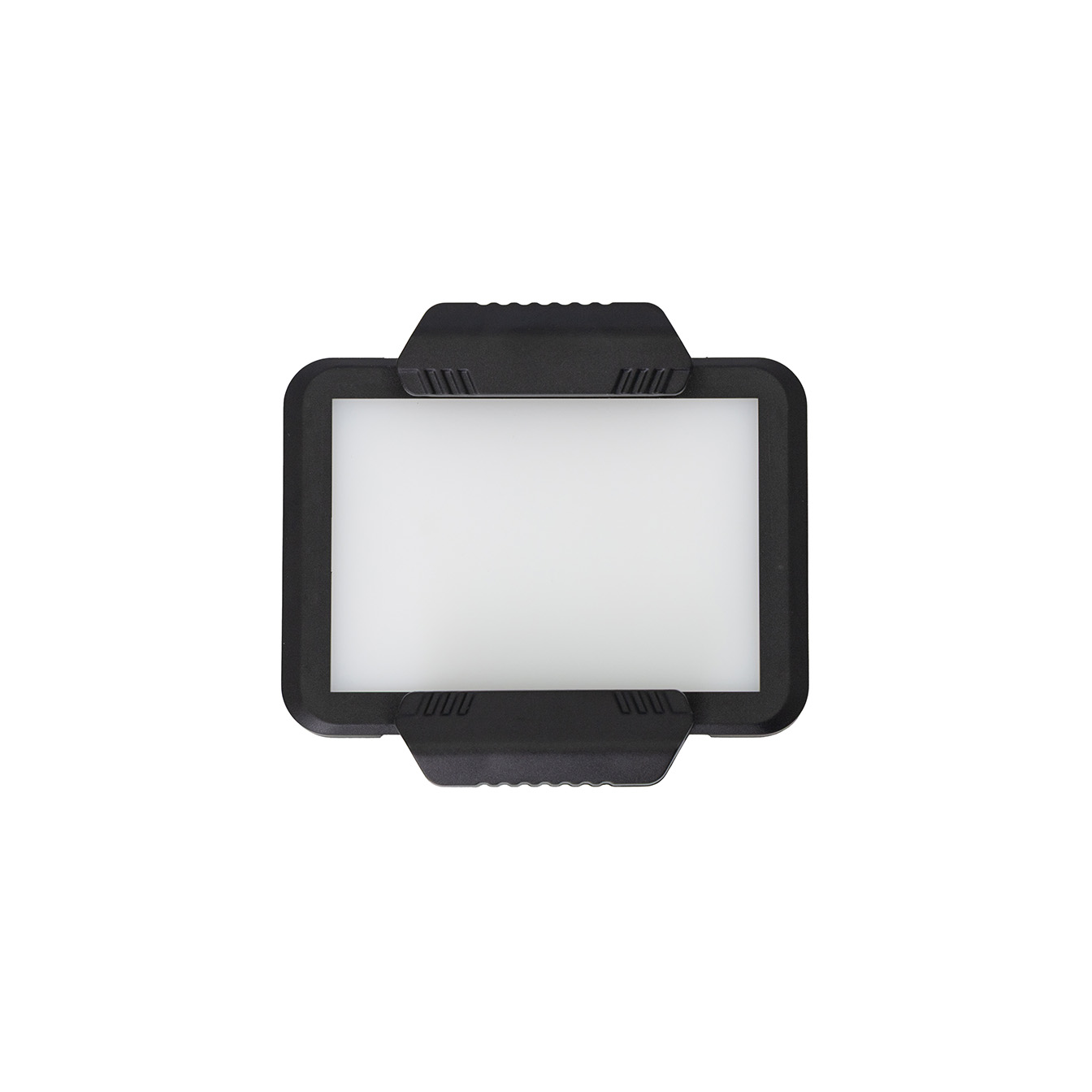

High-CRI Daylight LED Panel: Emits 5600K daylight-balanced illumination with CRI 97 and TLCI 98 ratings for highly accurate, consistent color reproduction.

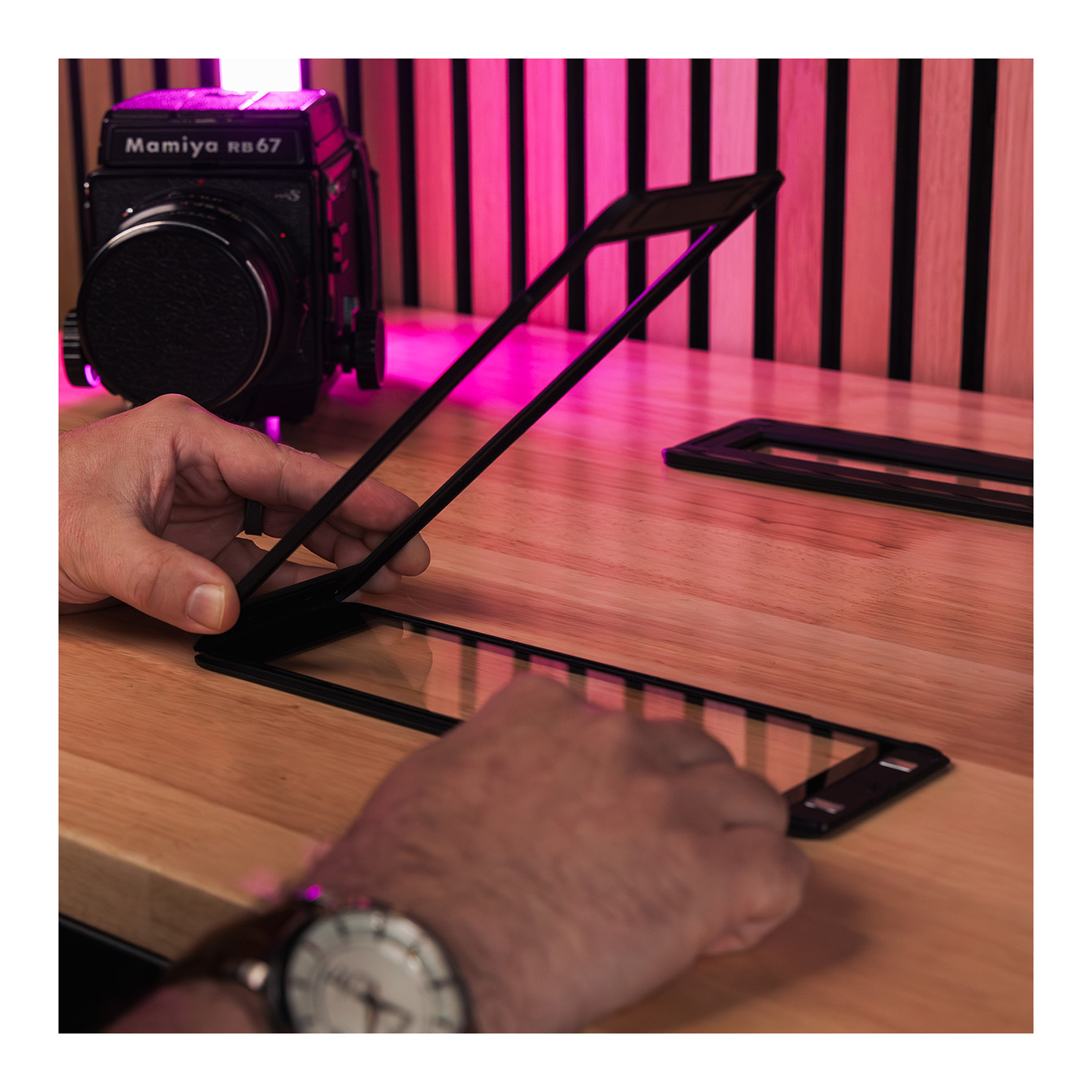

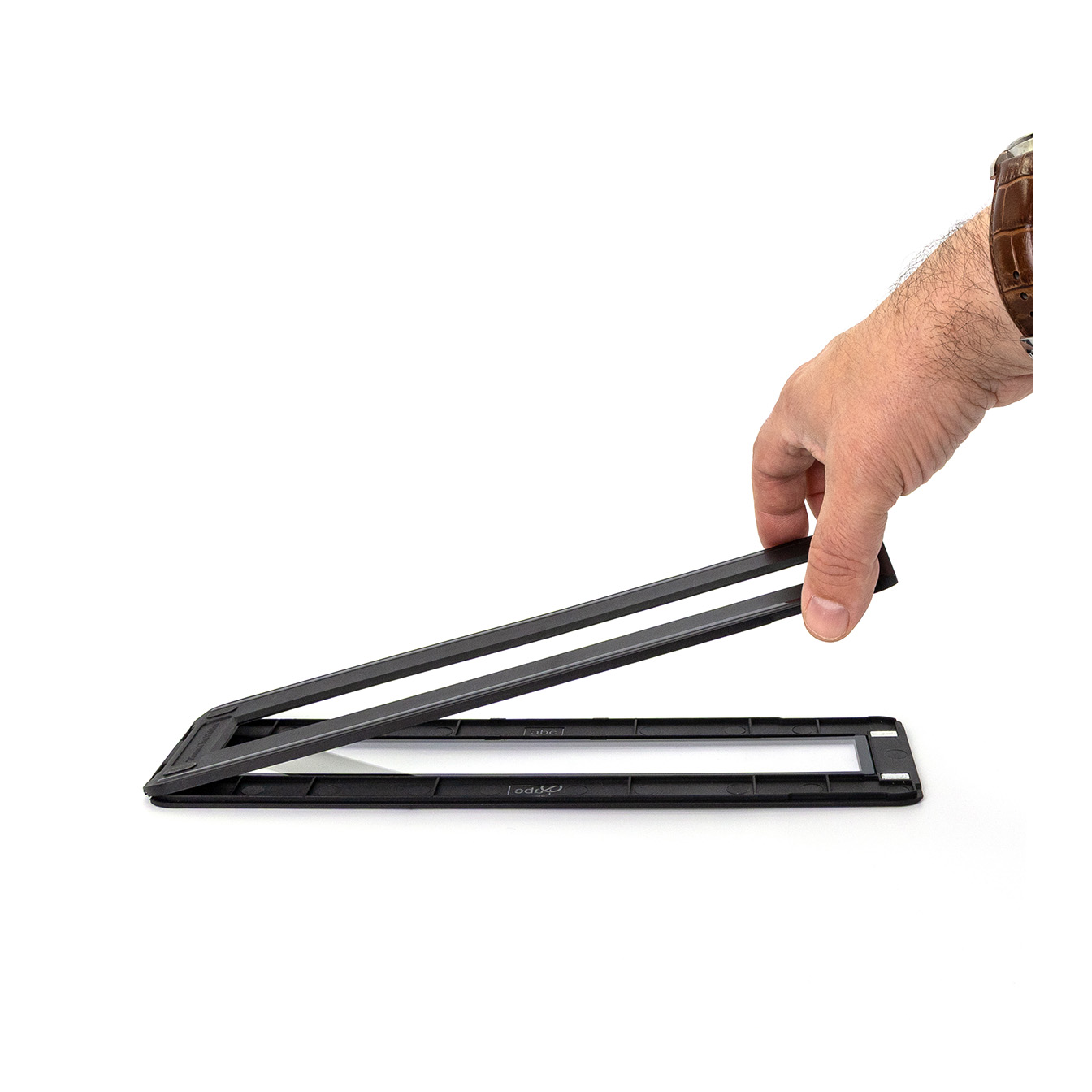

Dual Magnetic Film Holders: Includes dedicated 35mm and 120 medium format holders with transparent backings to keep negative strips flat without fragile tabs.

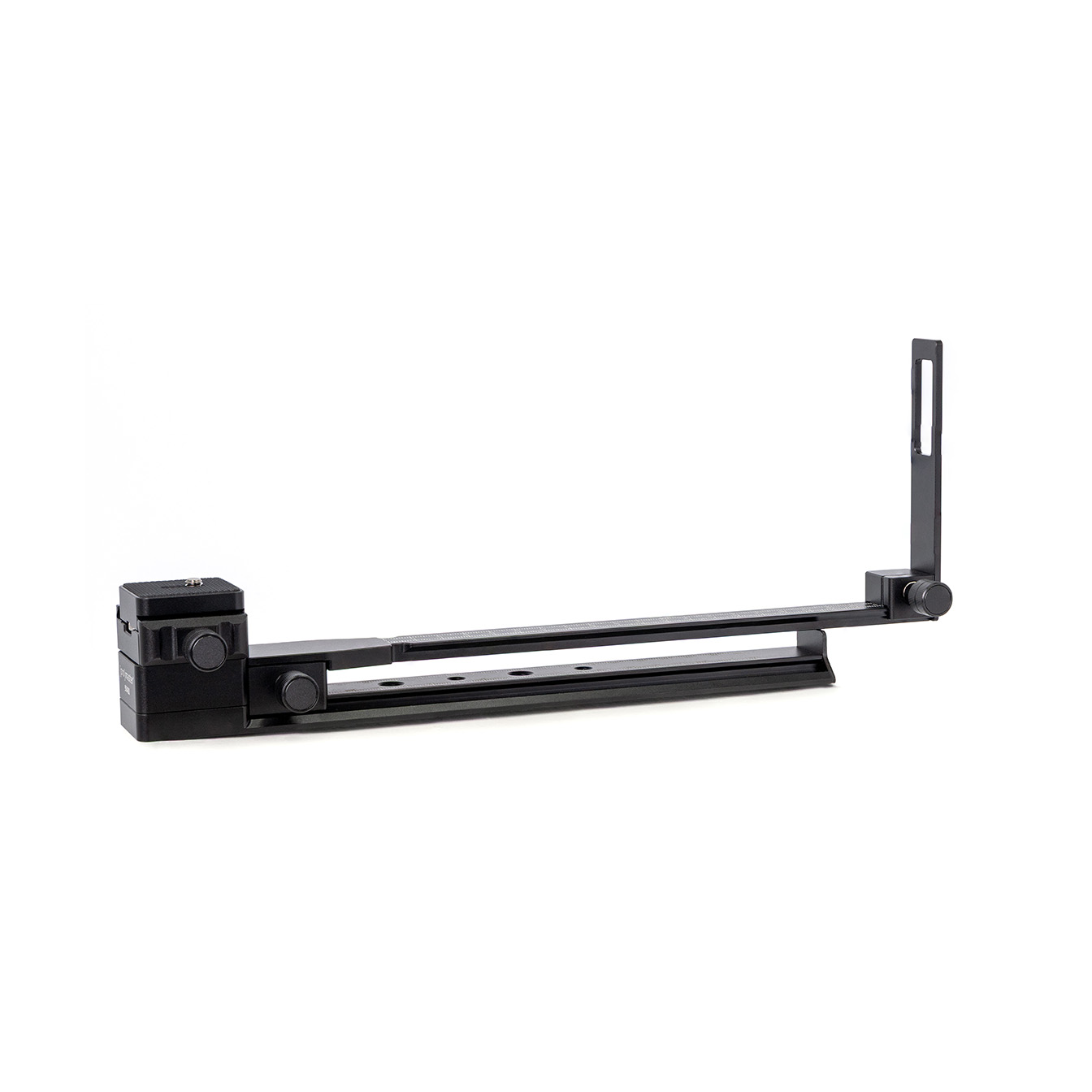

Precision 545 cm Sliding Rail: Features laser-etched alignment markings to easily adjust and repeat the exact distance between lens and film carrier.
Sprocket Hole Scanning: Accommodates 35mm film inside the 120 carrier to capture full vintage-style exposures with visible borders and sprocket holes.
Versatile Mounting System: Built-in Arca-type base dovetail plus 1/4″-20 and 3/8″-16 threaded sockets ensure direct mounting to tripods and copy stands.
TECHNICAL SPECIFICATIONS
Product Type: Camera-Based Negative & Slide Digitizing System
Camera/Lens Compatibility: DSLR or Mirrorless Interchangeable Lens Cameras with Macro Lenses
Film Format Compatibility: 35mm Strips & 120 Medium Format Strips (B&W and Color Negative, Unmounted Positives)

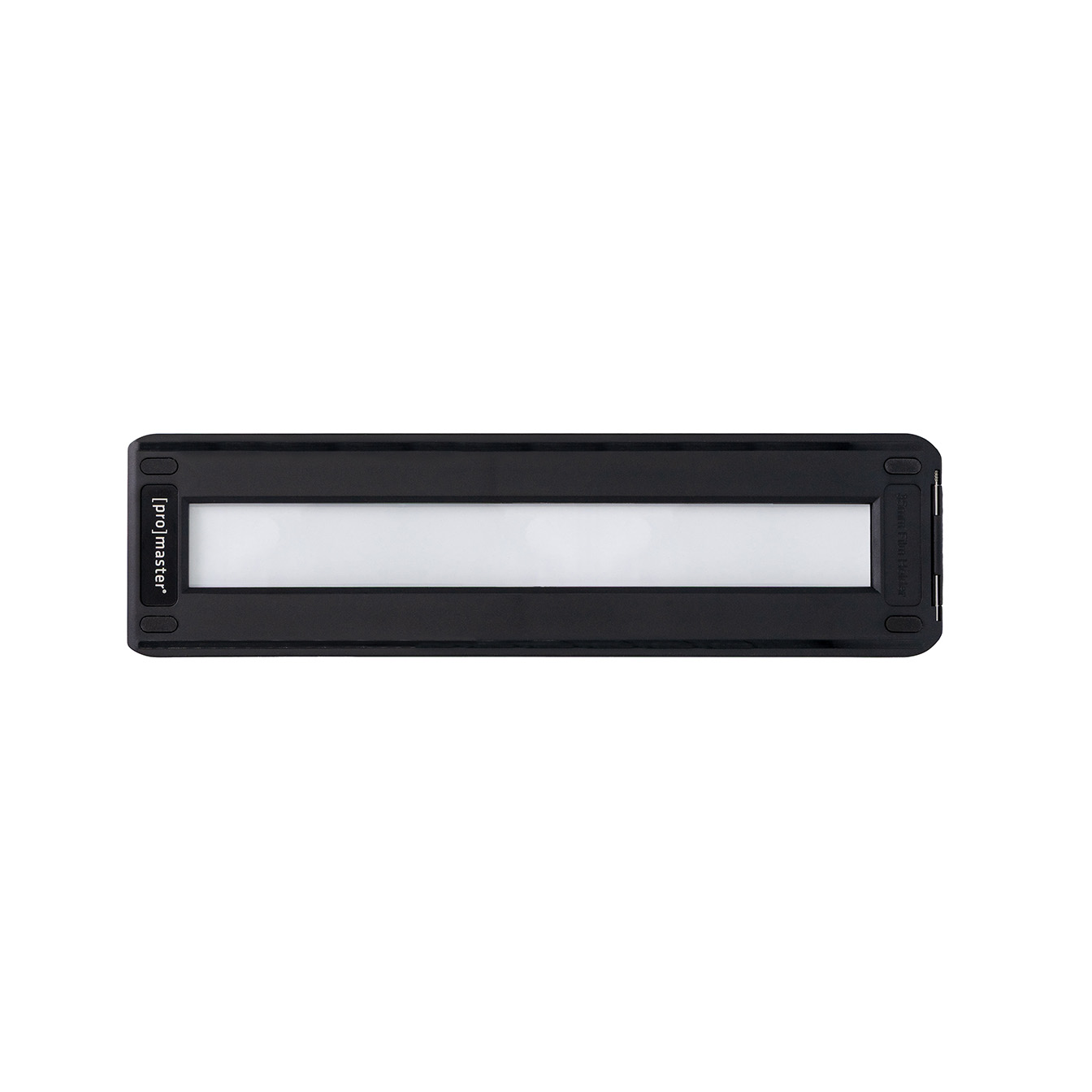

35mm Holder Scan Area: Approx. 9.0 x 1.1 inches / 22.8 x 2.8 cm (Fits up to 6 Frames)

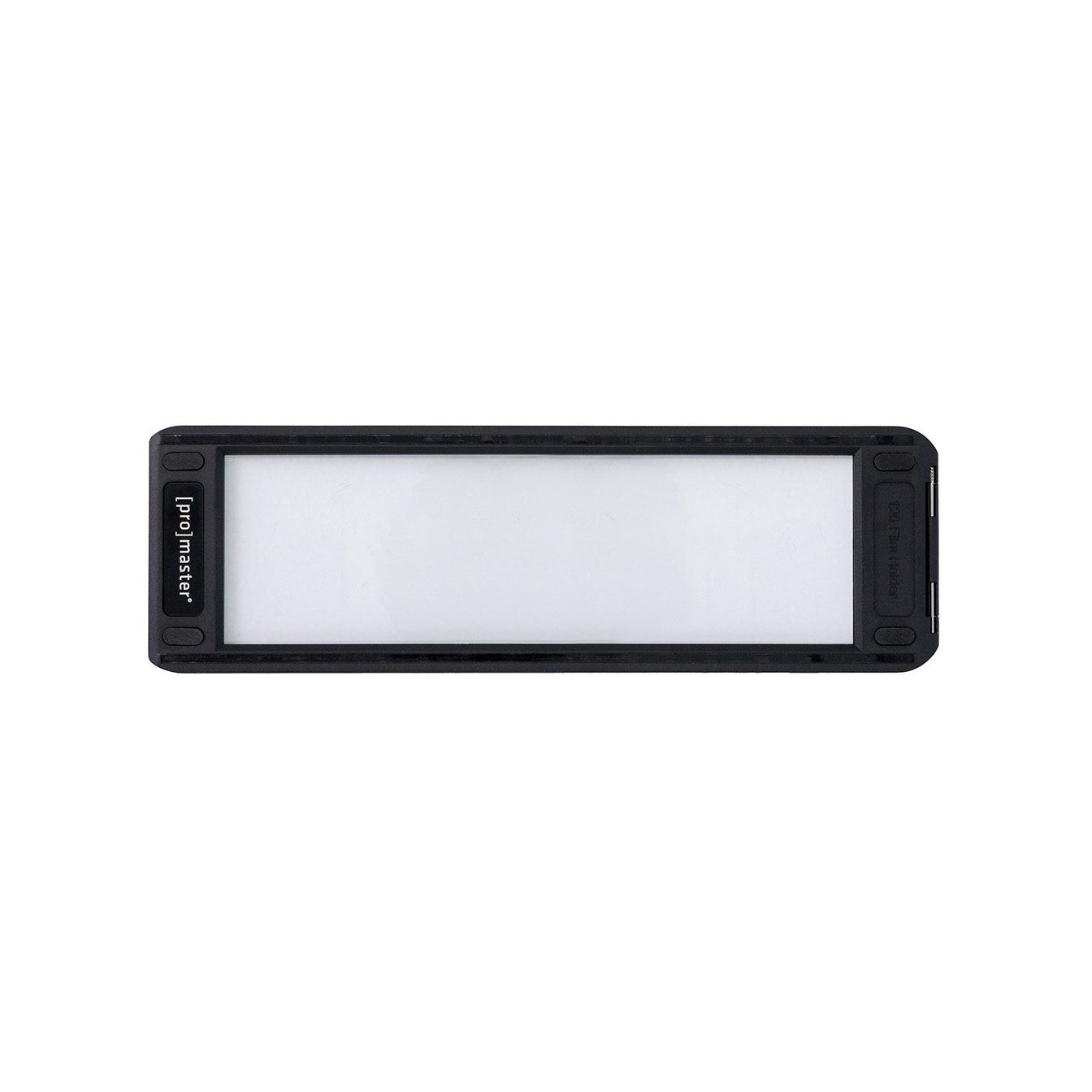

120 Holder Scan Area: Approx. 7.5 x 2.2 inches / 19.0 x 5.7 cm (Fits 4x 645, 3x 6×6, or 2x 6×7 / 6×8 / 6×9 Frames)

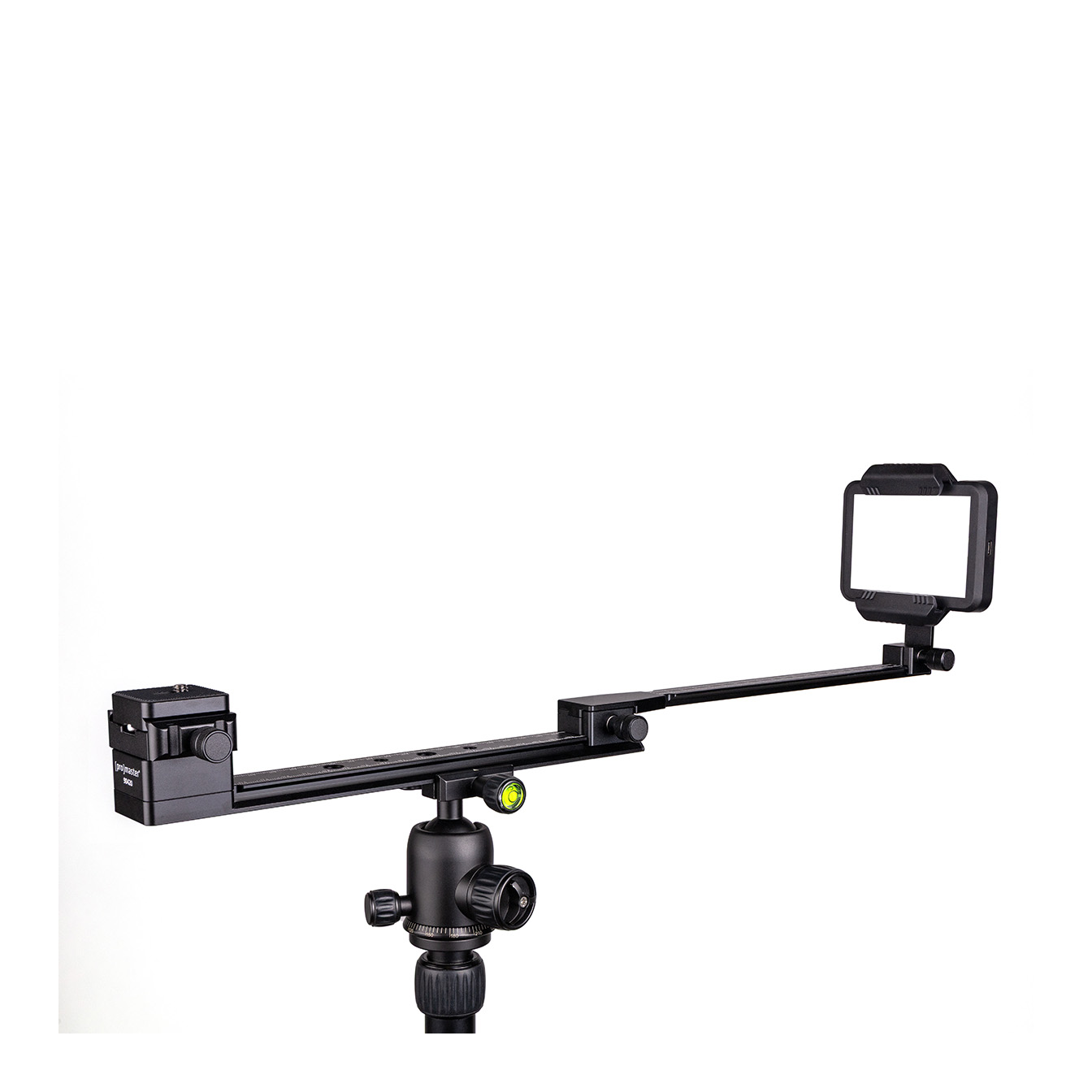

Sliding Rail Adjustment Range: 5 cm to 45 cm (from QR Plate Front Edge to Film Holder)
LED Color Temperature: 5600K ± 200K (Daylight)
LED Color Accuracy Ratings: CRI 97 | TLCI 98
LED Illuminance: 148 Lux at 0.5 m | 33 Lux at 1.0 m (100% Brightness)

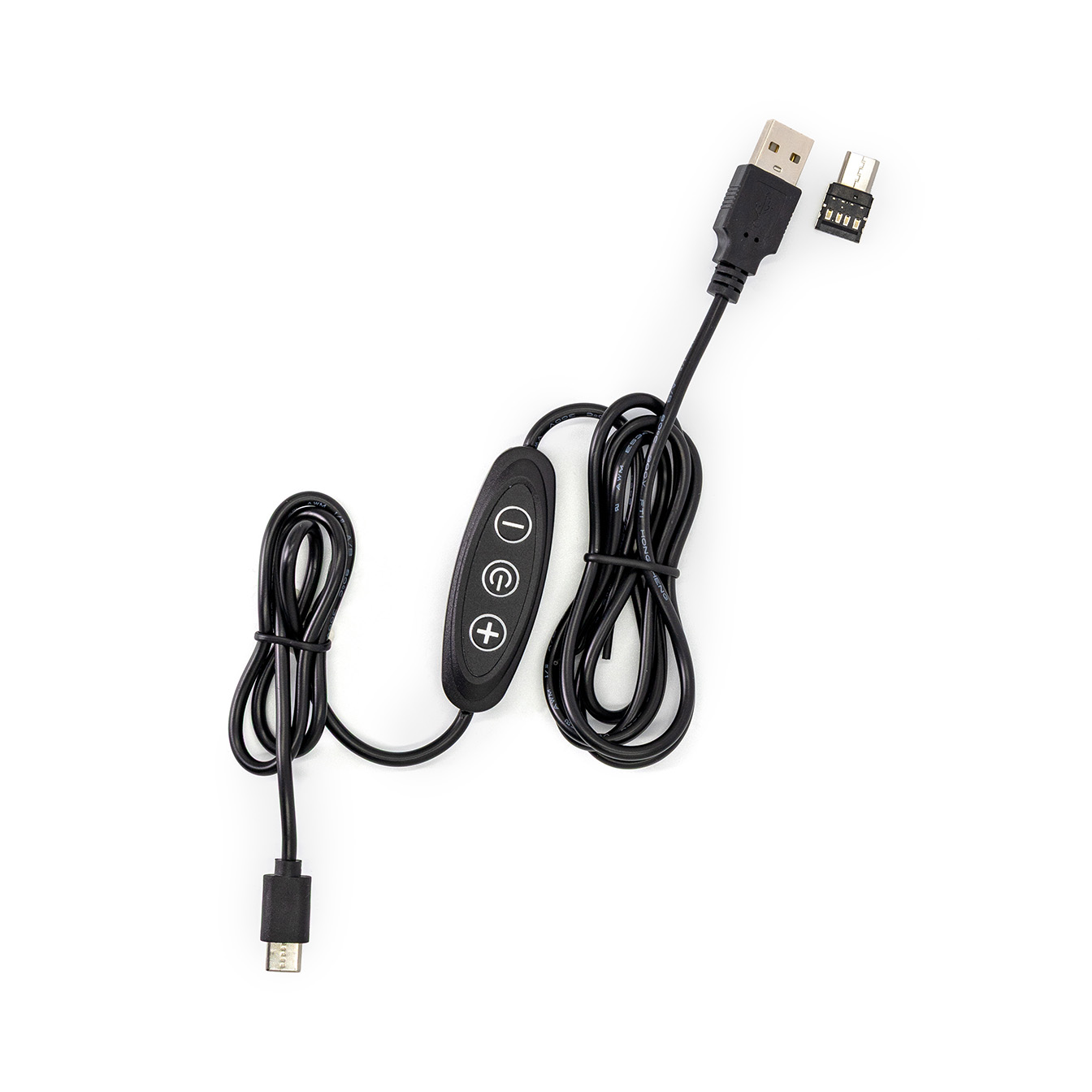

Brightness Adjustment: 11 Selectable Levels via In-Line Controller

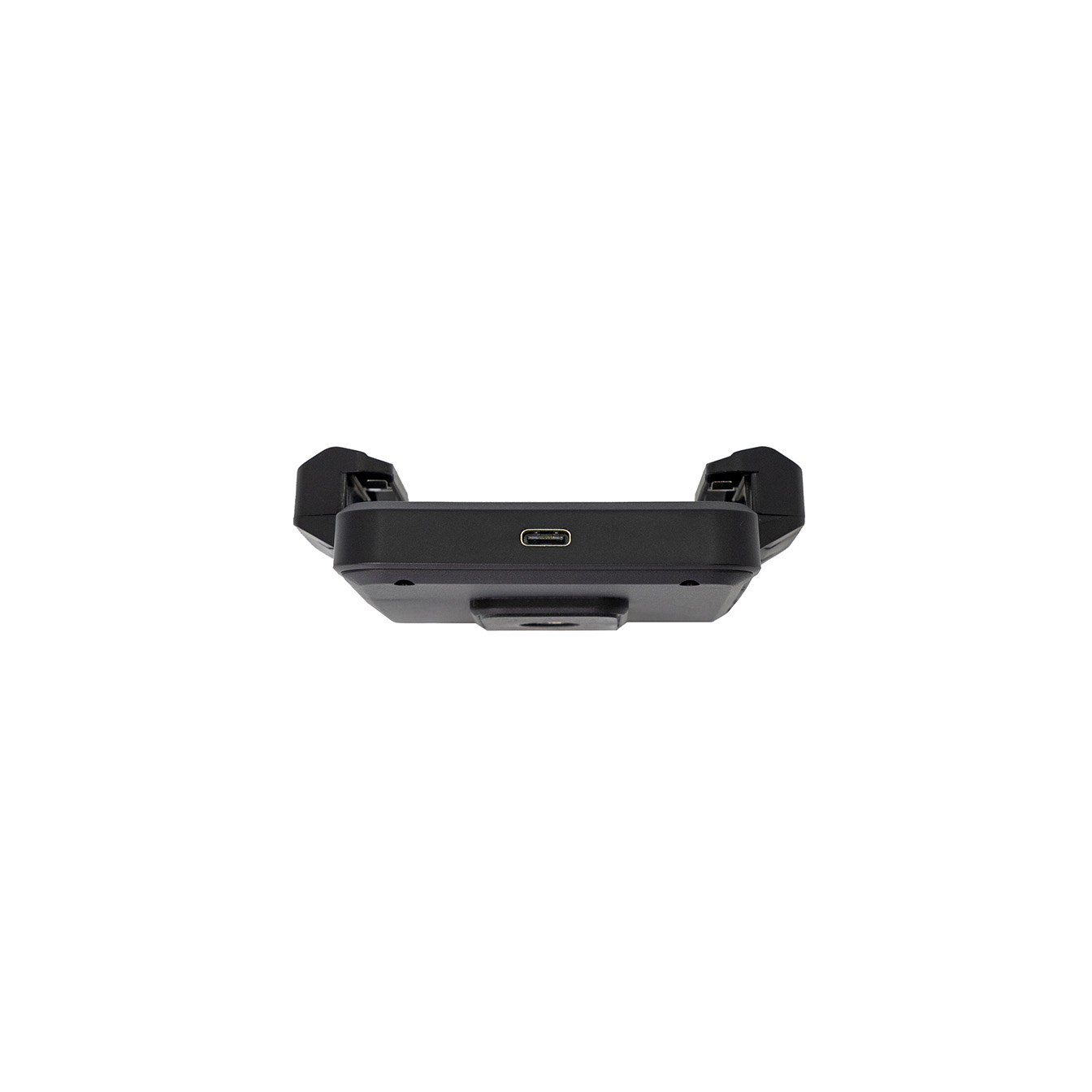

Power Requirement: 5V 2A USB-C or USB-A Power Source
Tripod / Stand Connections: Arca-Type Dovetail Base, 1/4″-20 Female Thread, 3/8″-16 Female Thread
Component Weights: Rail System: 365.5 g / 12.89 oz | LED Light: 122 g / 4.3 oz | 35mm Holder: 76 g / 2.68 oz | 120 Holder: 50.5 g / 1.78 oz
Included Accessories: Sliding Rail System, 35mm Film Holder, 120 Film Holder, USB LED Light, Controller Cable, USB-A to USB-C Adapter, QR Plate, 4mm & 2.5mm Hex Keys
Function: High-Speed Negative & Slide Digitization, Film Archiving & Precision Macro Positioning
