Sony DVF-EL1 Electronic Viewfinder

Sony DVF-EL1 Electronic Viewfinder for FX5
Dedicated 0.58″ 7.08m-Dot OLED EVF – DCI-P3 Color Spectrum, 90-Degree Vertical Tilt & Reversible Eyecup Design

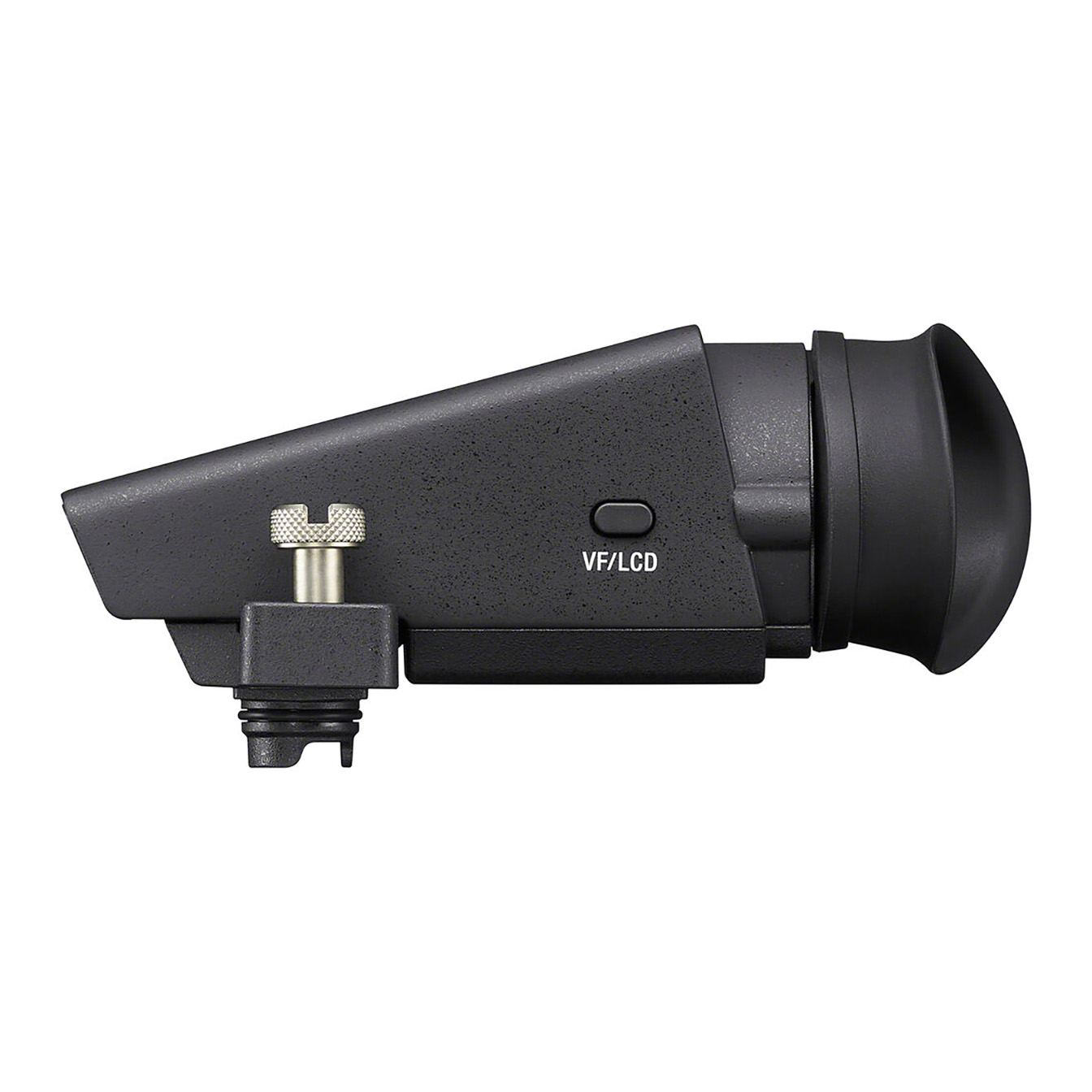

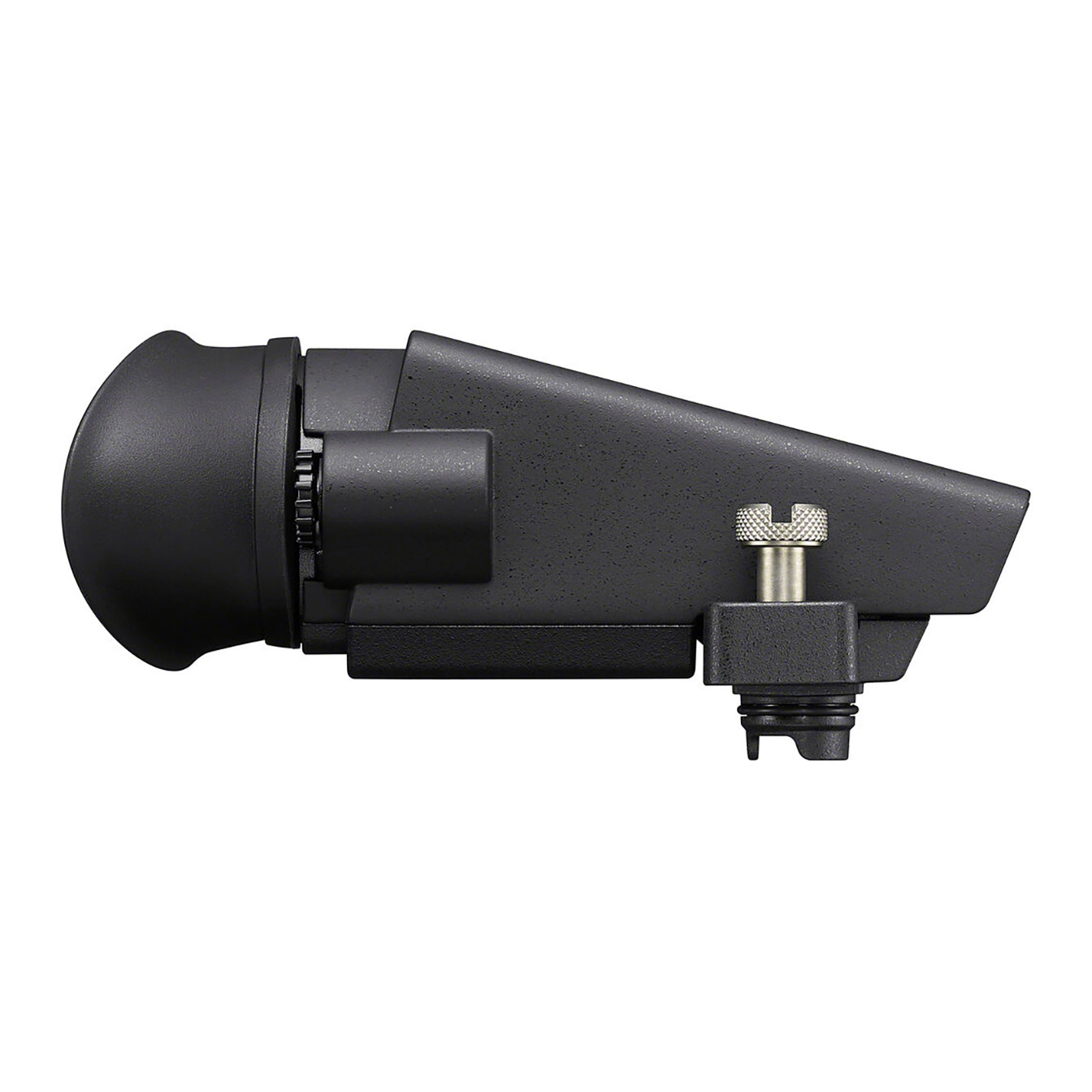

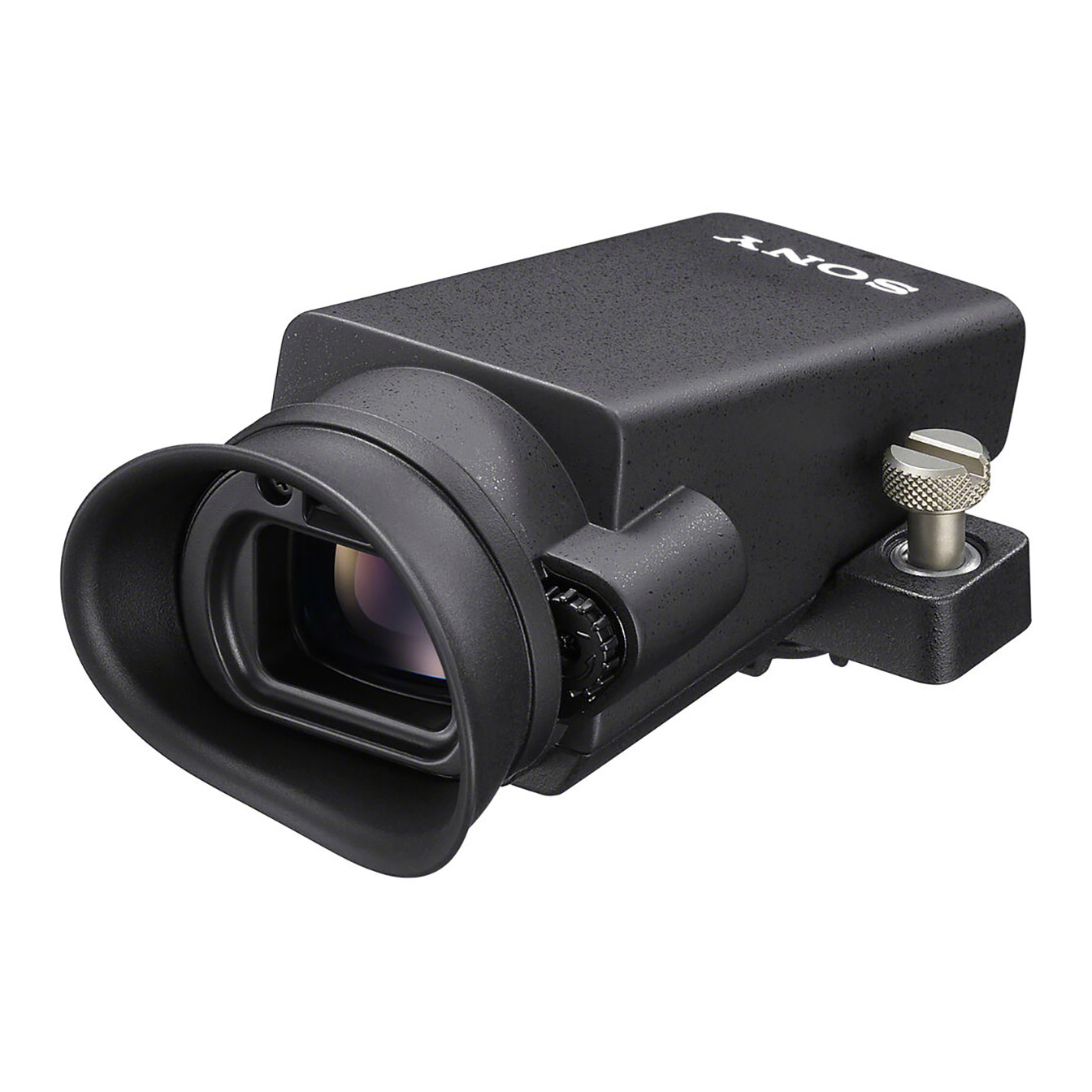

The Sony DVF-EL1 Electronic Viewfinder is a dedicated, high-resolution eye-level monitoring solution engineered specifically for the Sony FX5 Cinema Camera. Outfitted with a 0.58-inch OLED panel boasting an extraordinary 7.08-million-dot resolution and 0.90x magnification, this detachable viewfinder delivers crisp, precise focus and exposure assessment in high-glare outdoor environments and bright studio setups.

Designed to mount directly to the top of the FX5 body via a dedicated proprietary port, the DVF-EL1 locks securely in place using two 1/4″-20 mounting screws. The OLED panel covers a wide color gamut equivalent to DCI-P3 with 10-bit color depth and HDR monitoring support for accurate signal evaluation. For operational ergonomics, the viewfinder tilts vertically up to 90 degrees, features a detachable/reversible eyecup for left- or right-eye shooting, and offers two display modes—Standard and Zoom Out—to ensure maximum edge-to-edge frame visibility, even for operators wearing glasses.

Key Features & Ergonomic Monitoring

High-Resolution OLED Display: Combines a 0.58″ 7.08m-dot OLED panel with 0.90x magnification to provide detailed, sharp eye-level monitoring.

Cinema-Grade Color & HDR Support: Covers a broad DCI-P3 color gamut with 10-bit color depth for accurate HDR exposure and color evaluation.

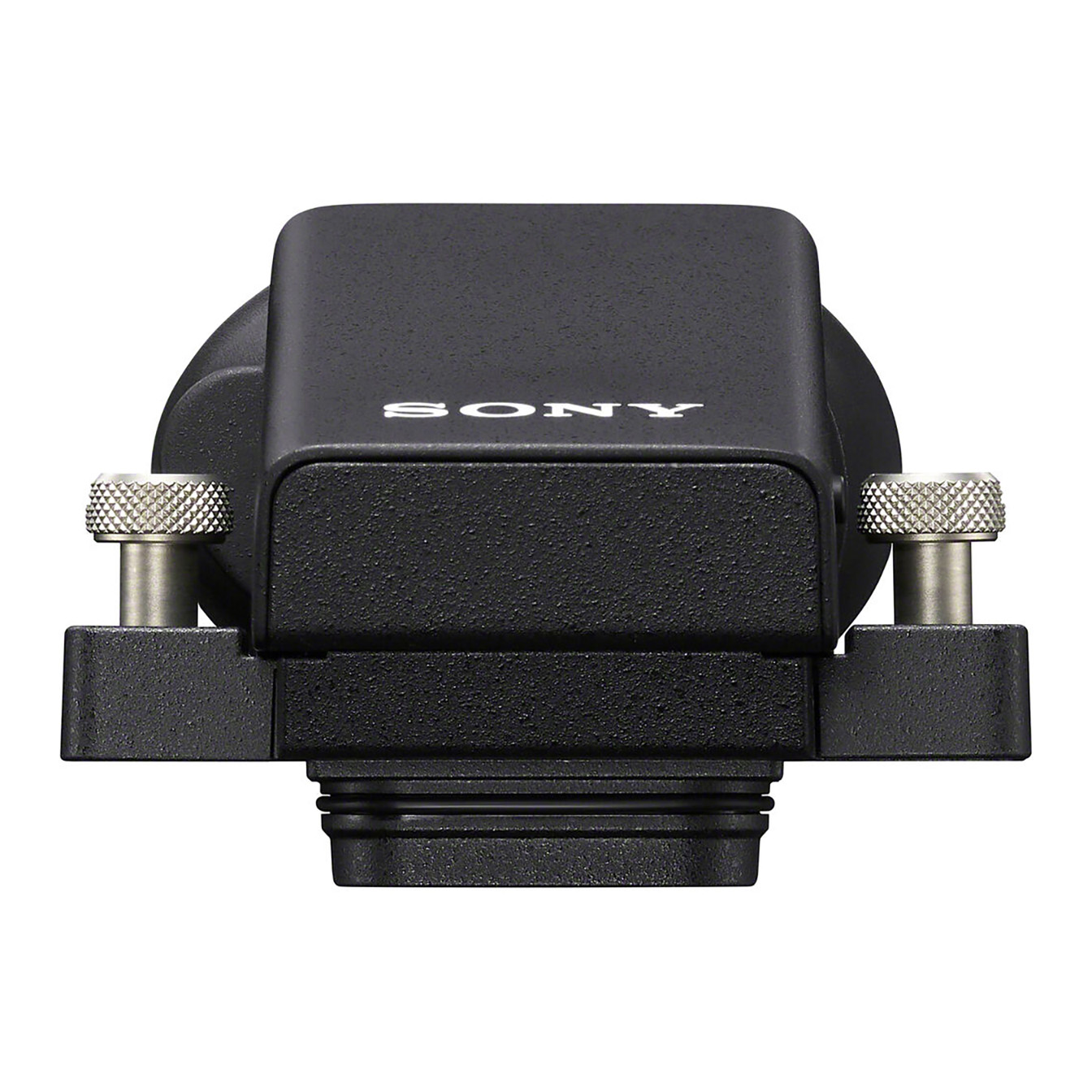

Secure Direct Top Mounting: Mounts natively to the FX5 proprietary top terminal and locks firmly into place using two 1/4″-20 mounting screws.

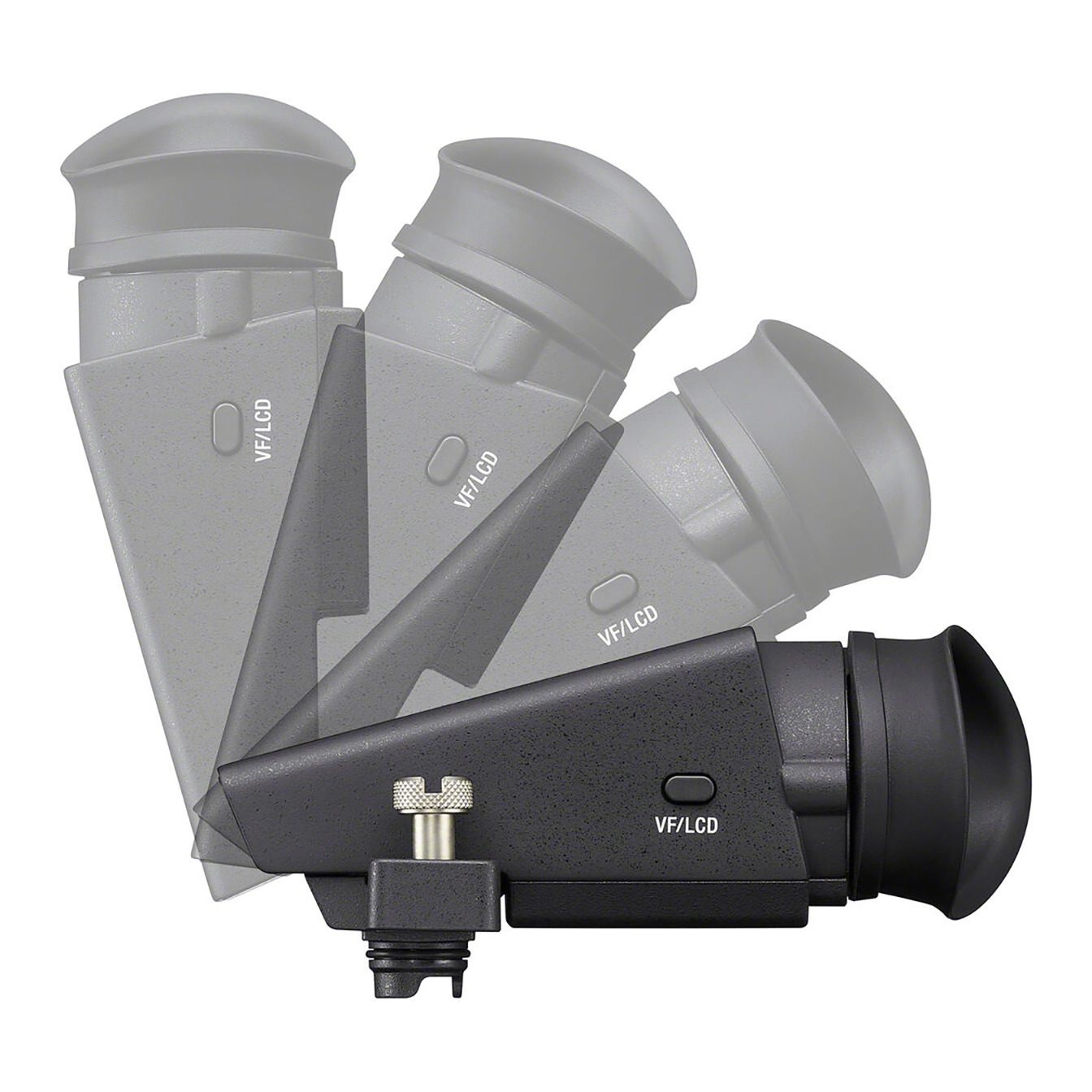

90-Degree Vertical Tilt: Swivels upward from 0° to 90° to accommodate low-angle handheld or tripod compositions.

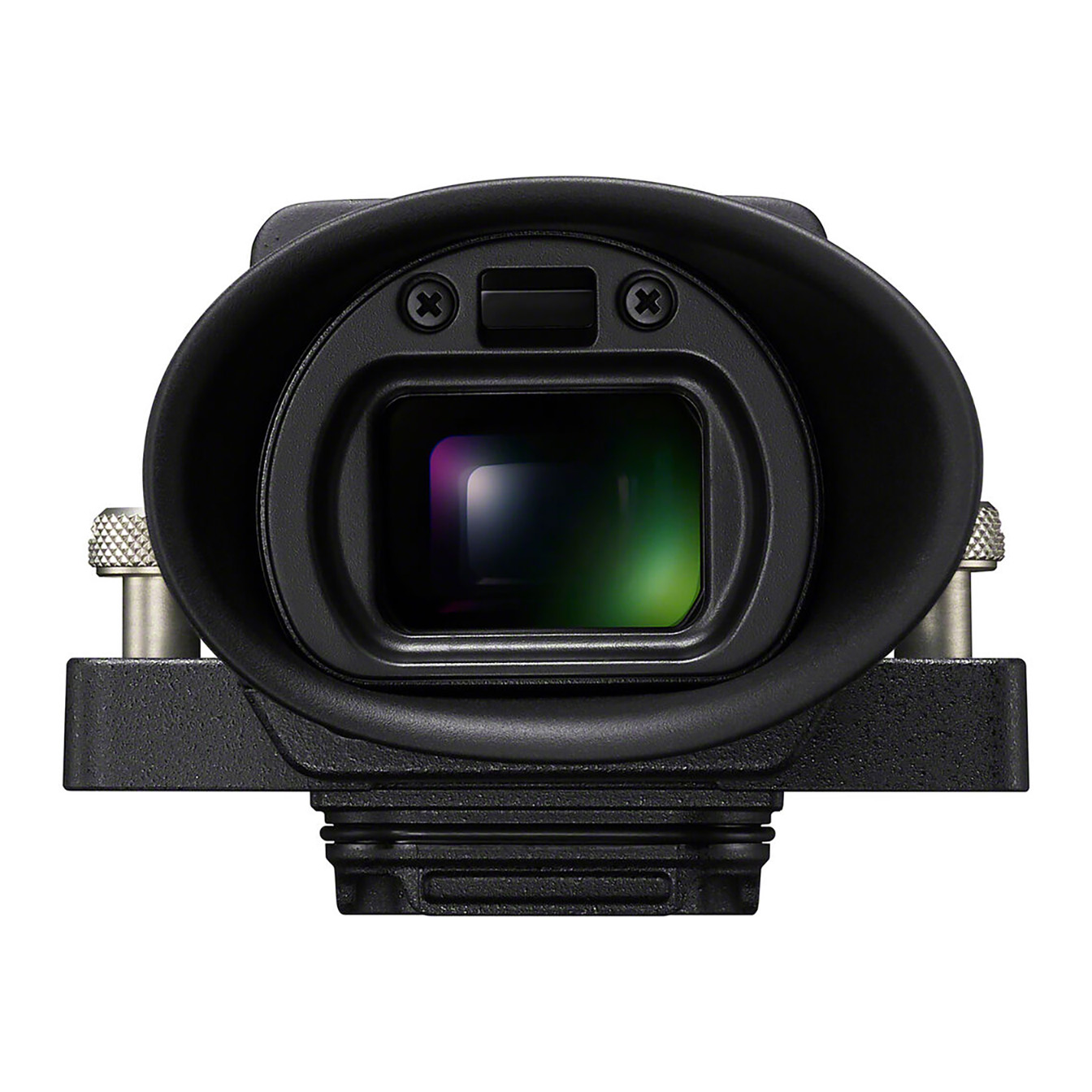

Versatile Eyecup Configuration: Features a detachable, reversible eyecup that supports left- or right-eye operation. Removing the cup allows closer viewing for operators wearing eyeglasses.

Selectable Magnification Modes: Offers Standard viewing alongside a “Zoom Out” display setting to enhance full-frame border visibility.

Integrated Port Protection: Includes a terminal protective cap that conveniently stores inside the viewfinder housing when mounted.

Camera Compatibility

Sony Cinema Line: FX5

Technical Specifications

Display Type: 0.58-Inch OLED Panel

Display Resolution: Approximately 7,080,000 Dots

Viewfinder Magnification: 0.90x

Color Spectrum Coverage: DCI-P3 Equivalent (10-Bit Color Support)

Tilt Angle Adjustment: 0° to 90° Upward Vertical

Camera Attachment Interface: Proprietary FX5 Top Terminal & 2 x 1/4″-20 Screws
