Sony Cinema Line FX5 Camera Body with XLR-H2 Handle Unit
Compact Cinema Revolution 16.6MP 5K Stacked Exmor RS Sensor, BIONZ XR2 Processing, 5K Open Gate, Internal X-OCN & Included 32-Bit Float XLR Handle
The Sony FX5 Cinema Camera with Included XLR-H2 Handle Unit brings top-tier CineAlta production workflows into an agile, compact system built for today’s hybrid cinema demands. Bridging the gap between the ultra-portable FX3 and the production-ready FX6, the FX5 features a next-generation 16.6MP 5K fully stacked Exmor RS CMOS sensor paired with the powerful BIONZ XR2 engine and a dedicated AI processing unit. This high-speed architecture delivers ultra-fast readout times, minimal rolling shutter distortion, and real-time AI subject-tracking autofocus for humans, animals, and birds.
Positioned as a powerful workhorse for documentary filmmakers, commercial cinematographers, and indie directors, the FX5 captures internal 16-bit linear X-OCN raw-compressed video (LT, C1, and C2) alongside 5K Open Gate (3:2) recording directly to internal CFexpress Type A/SD media. Sensor dynamic range exceeds 16 stops, backed by a Dual Gain system with Three Base ISOs (ISO 800 / 4000 / 12800) for ultra-clean low-light performance. This kit includes the detachable XLR-H2 Handle Unit, unlocking 32-bit float audio capture, dual XLR ports, and physical audio gain controls alongside in-body image stabilization, a 3.5″ 4-axis multi-angle touchscreen, and professional exposure monitoring tools.
Key Features & Cinema Architecture

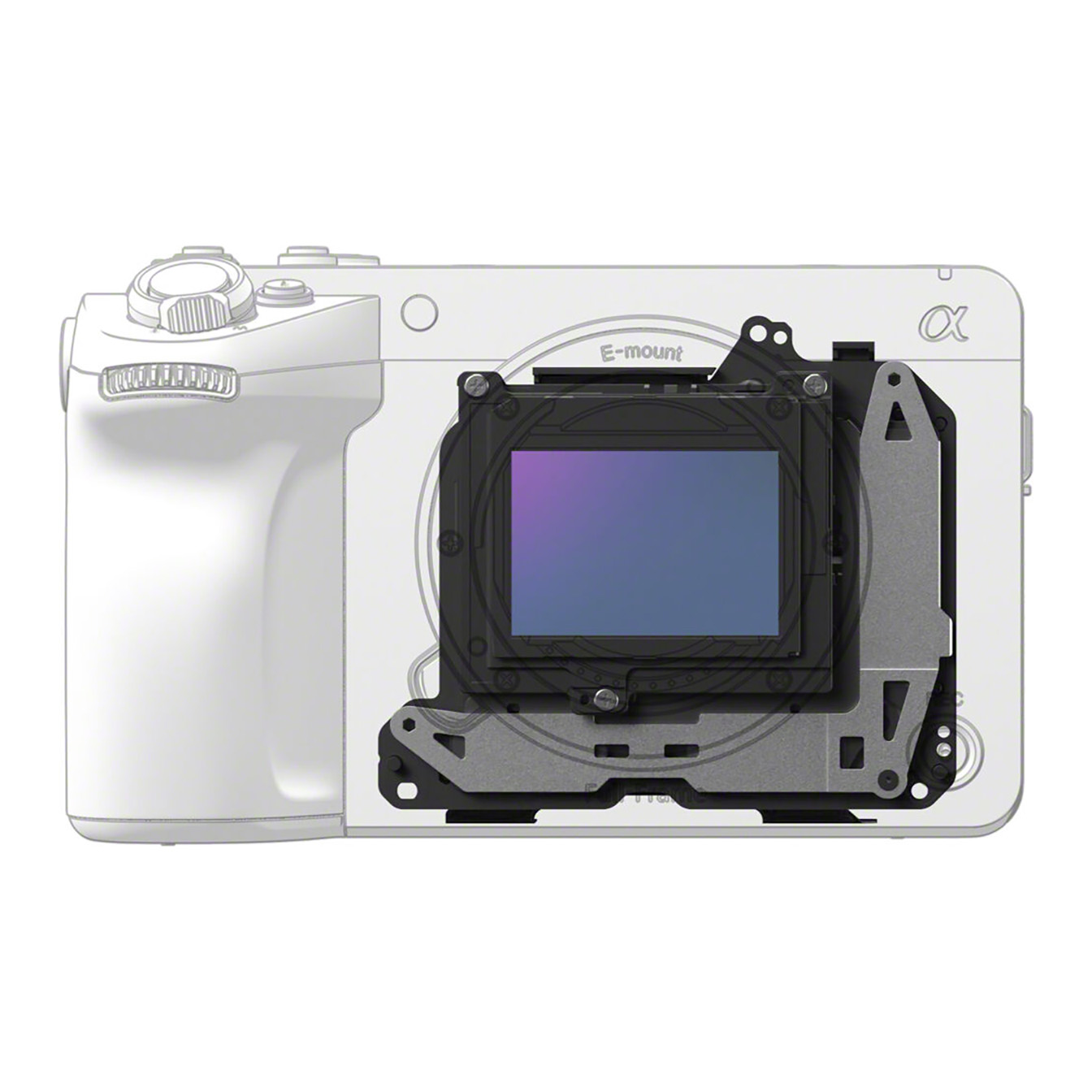

16.6MP 5K Full-Frame Stacked Sensor: Utilizes a newly developed 5K fully stacked Exmor RS CMOS sensor designed to maximize readout speeds and eliminate rolling shutter artifacts.
Internal 5K Open Gate & X-OCN Raw: Records 16-bit linear X-OCN raw-compressed formats (LT, C1, and C2) and 5K Open Gate (3:2) internally at up to 60 fps for flexible post-production reframing and VFX work.

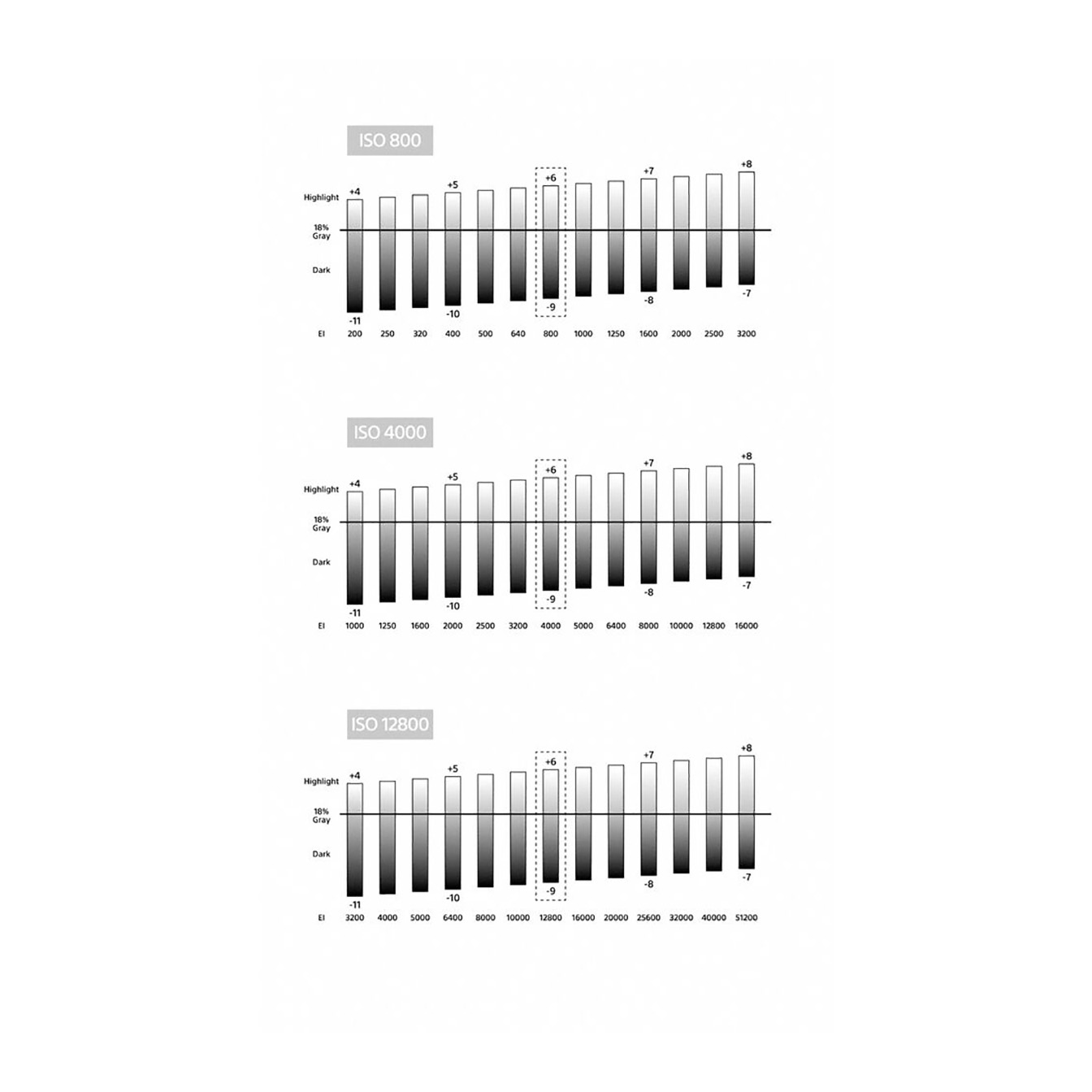

Three Base ISO & 16+ Stops Dynamic Range: Dual-gain sensor architecture incorporates native ISO 800, 4000, and 12800 settings, providing pristine highlight retention and 16+ stops of dynamic range.

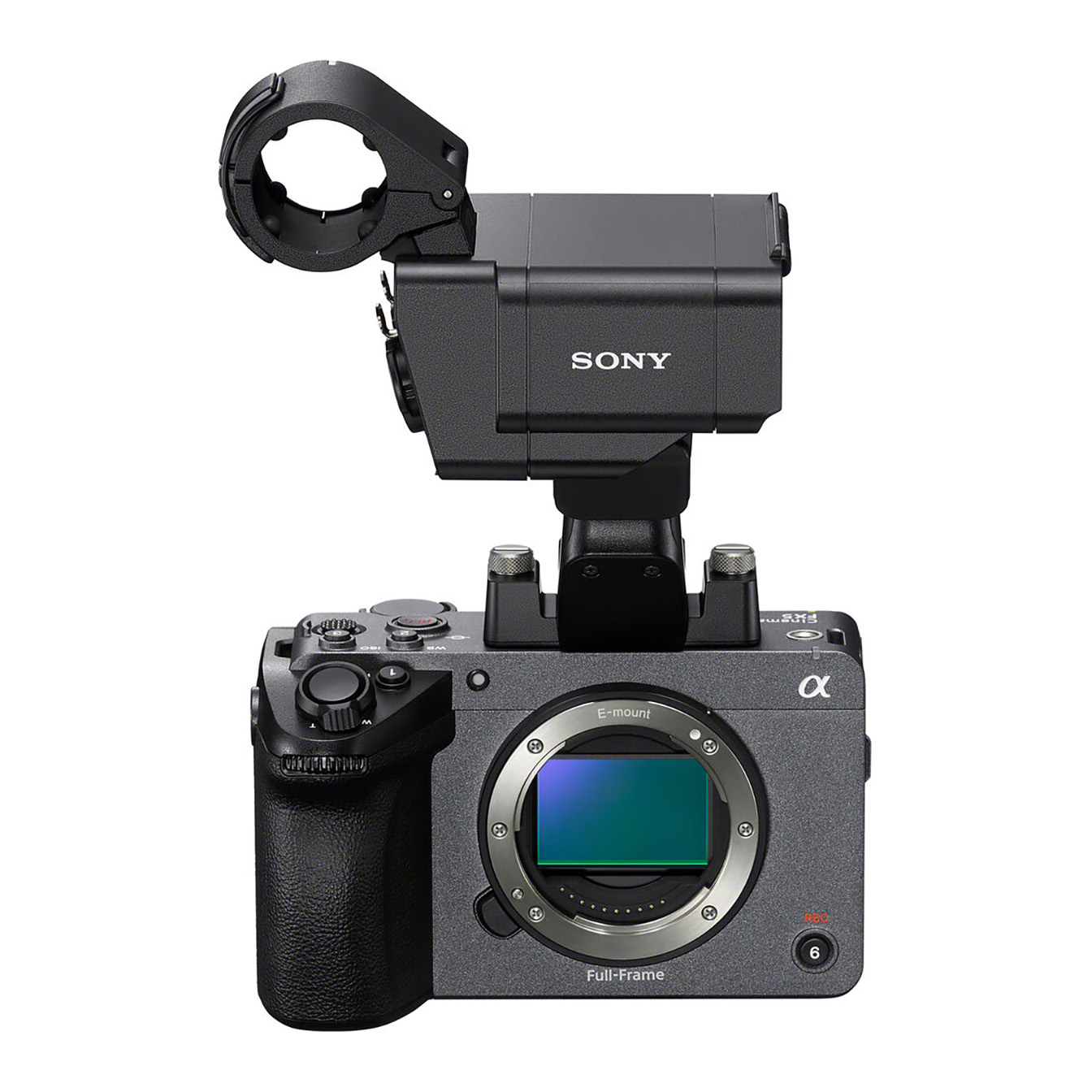

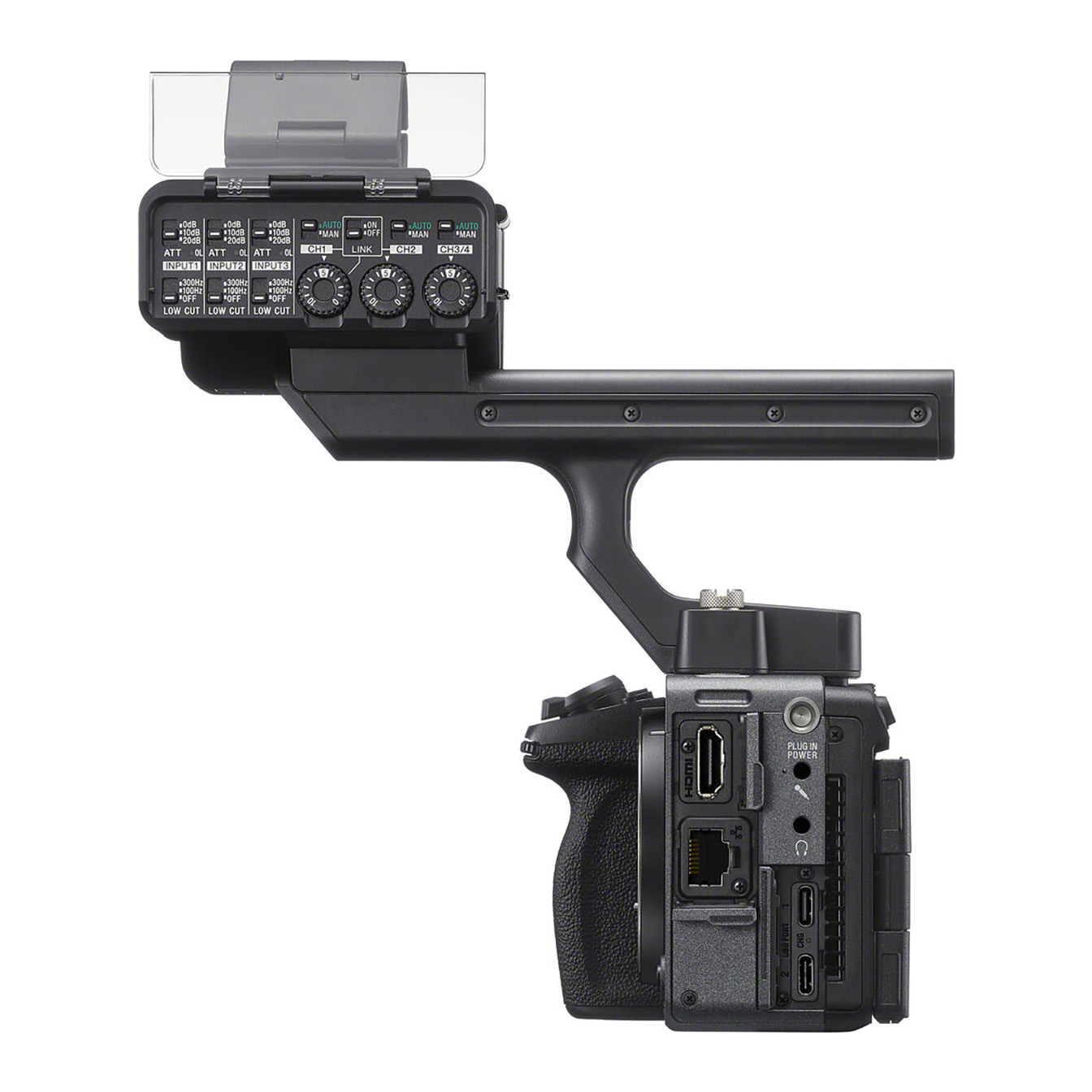

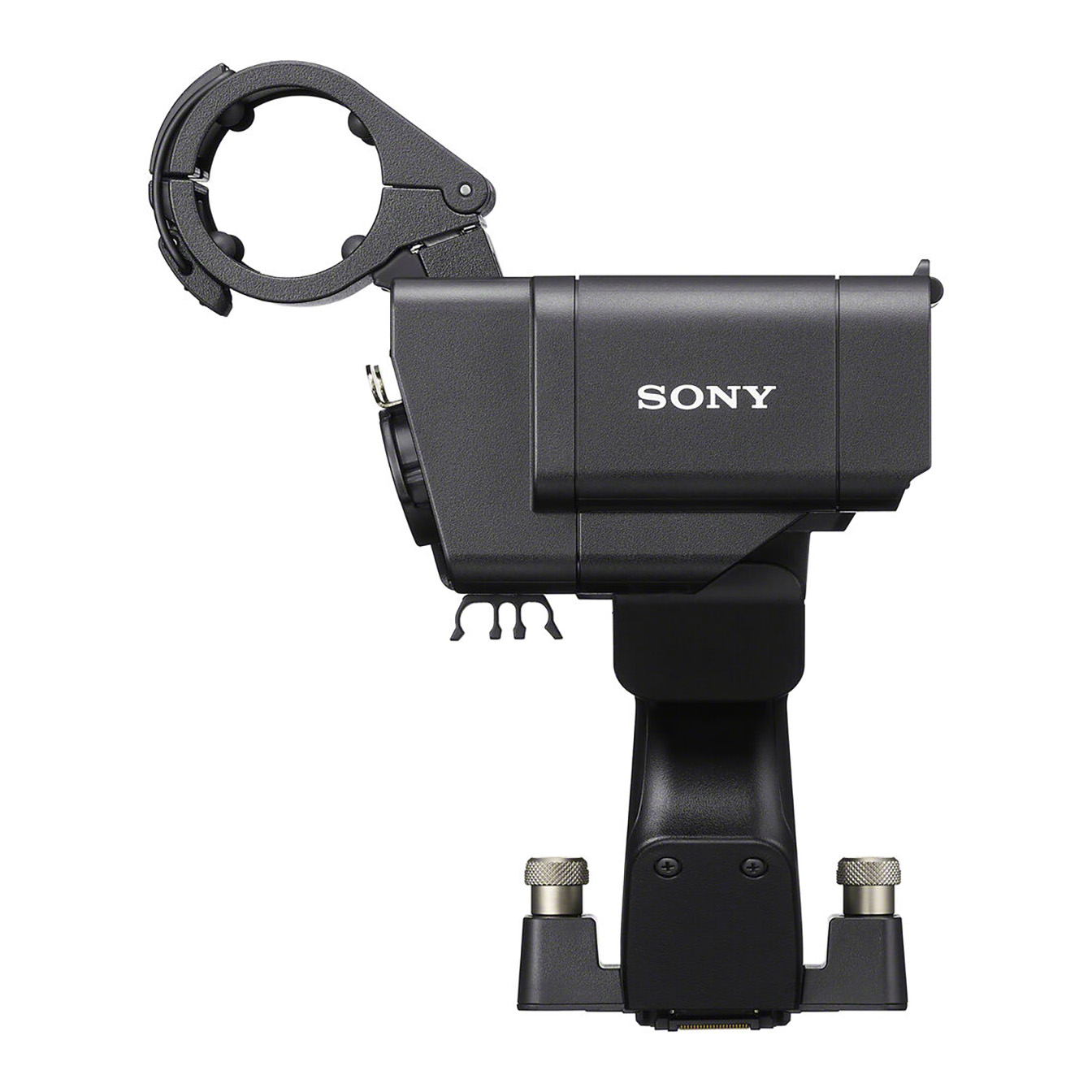

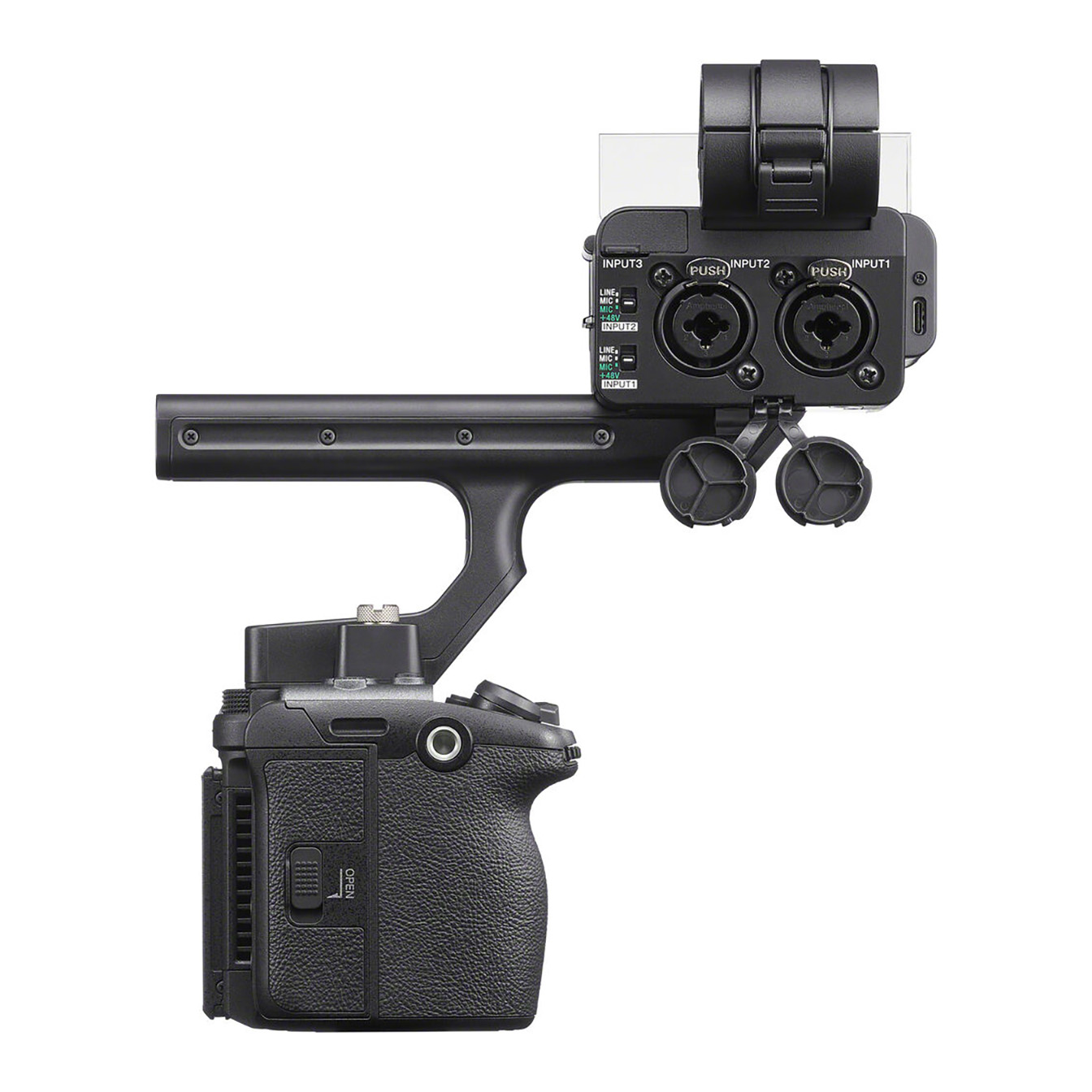

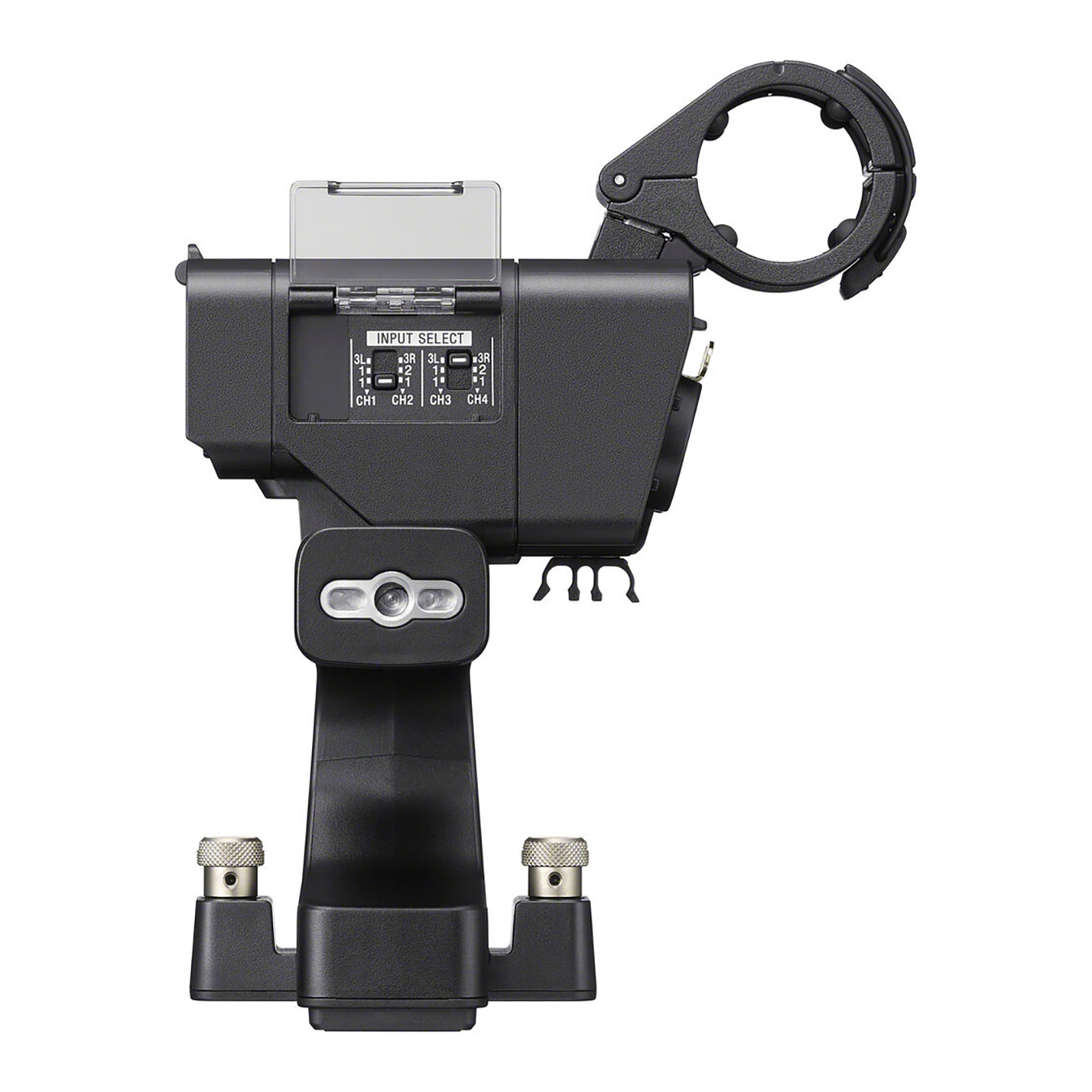

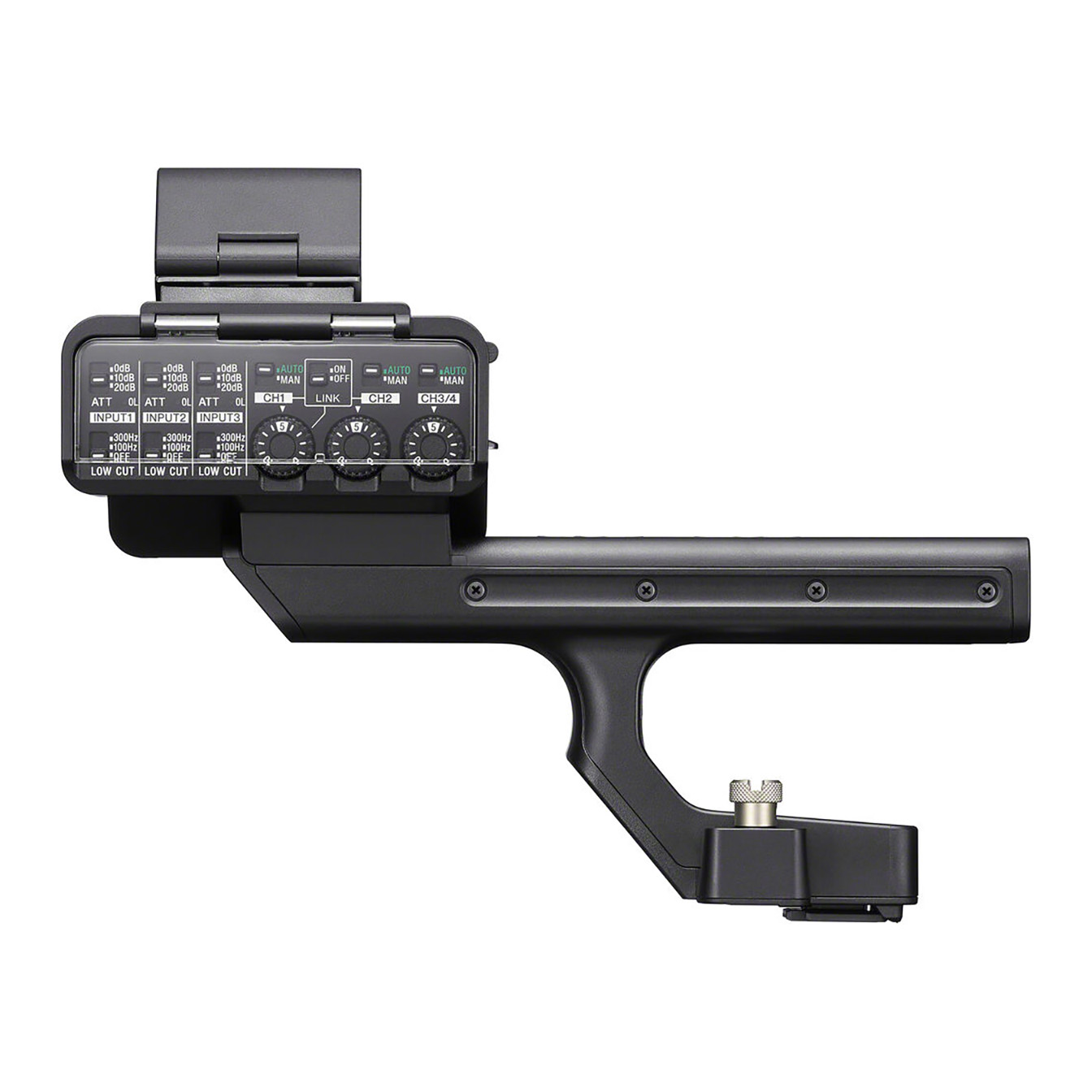

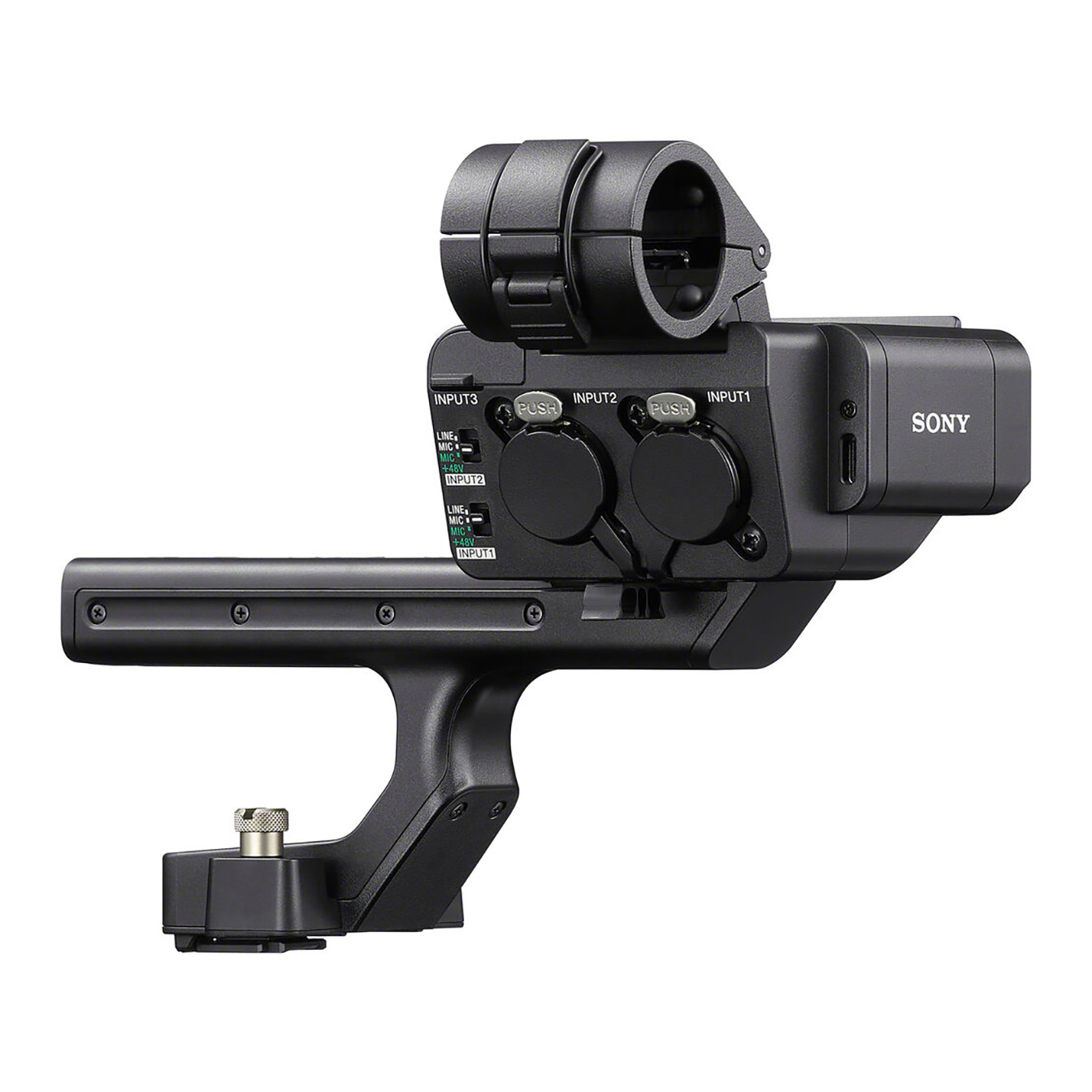

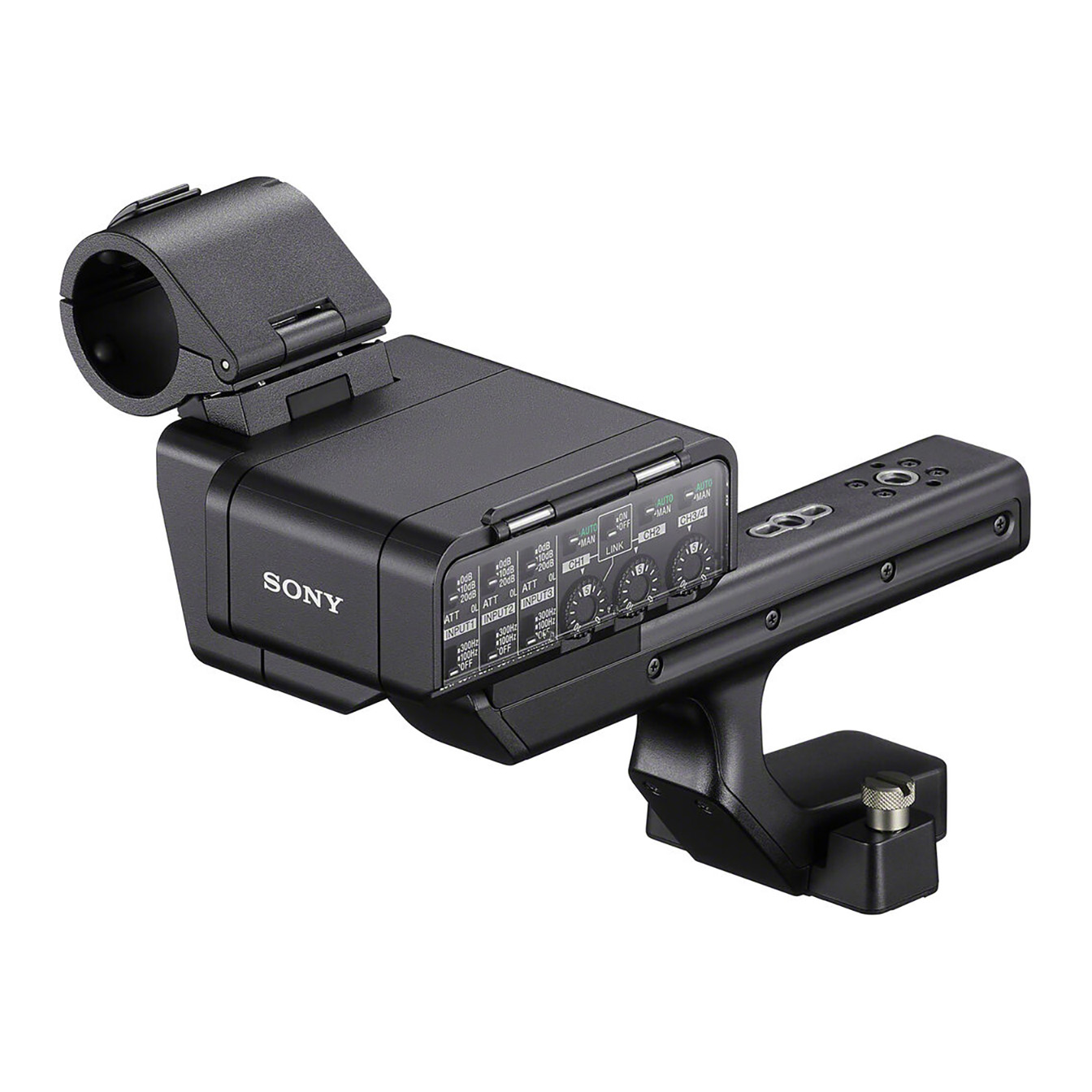

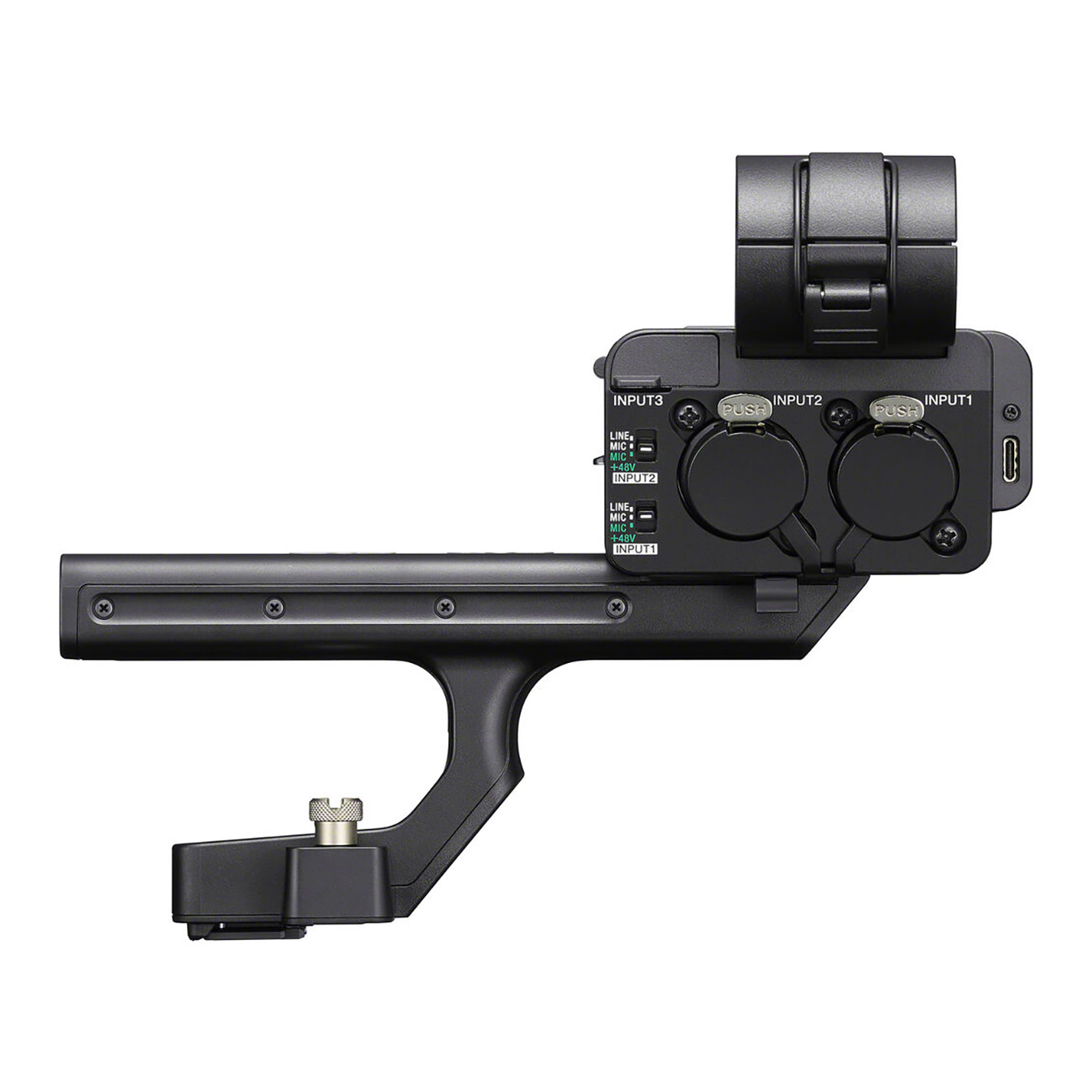

Included XLR-H2 Handle Unit (32-Bit Float Audio): Comes equipped with the top handle attachment, bringing 32-bit float audio recording to the FX series alongside dual XLR inputs, physical gain dials, and a microphone mount.
BIONZ XR2 Engine with Integrated AI Unit: Powers real-time AI subject recognition autofocus and AI-assisted auto white balance with enhanced low-light tracking lock.
In-Body Stabilization with Active Roll Correction: Advanced 5-axis sensor-shift IBIS features electronic Active Mode to stabilize handheld camera movement without external gimbals.
Pro Monitoring Suite & Anamorphic De-Squeeze: In-camera monitoring tools include Waveform, Vectorscope, False Color, Focus Map, and customizable Anamorphic De-Squeeze for live composition.
Professional Ergonomics & Connectivity

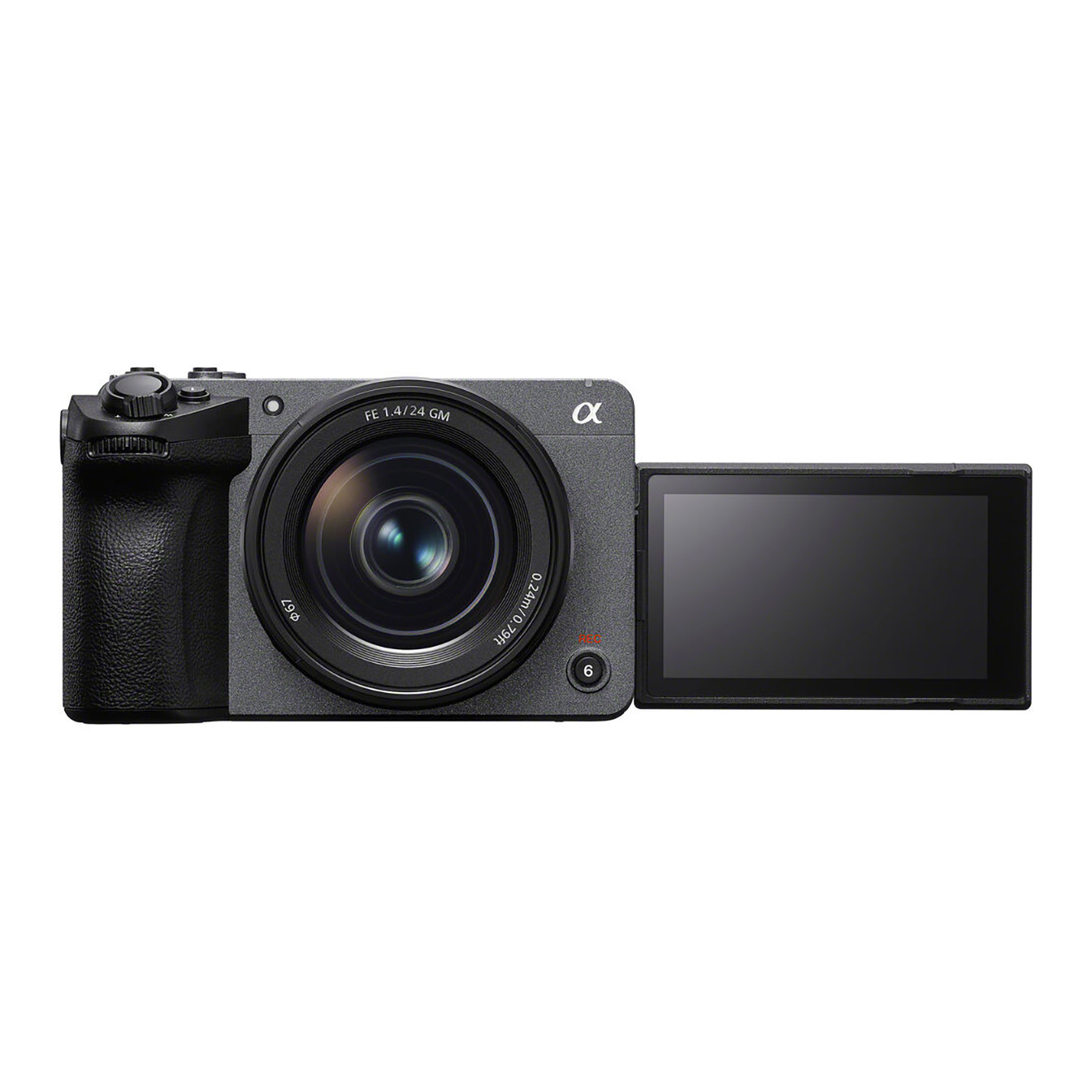

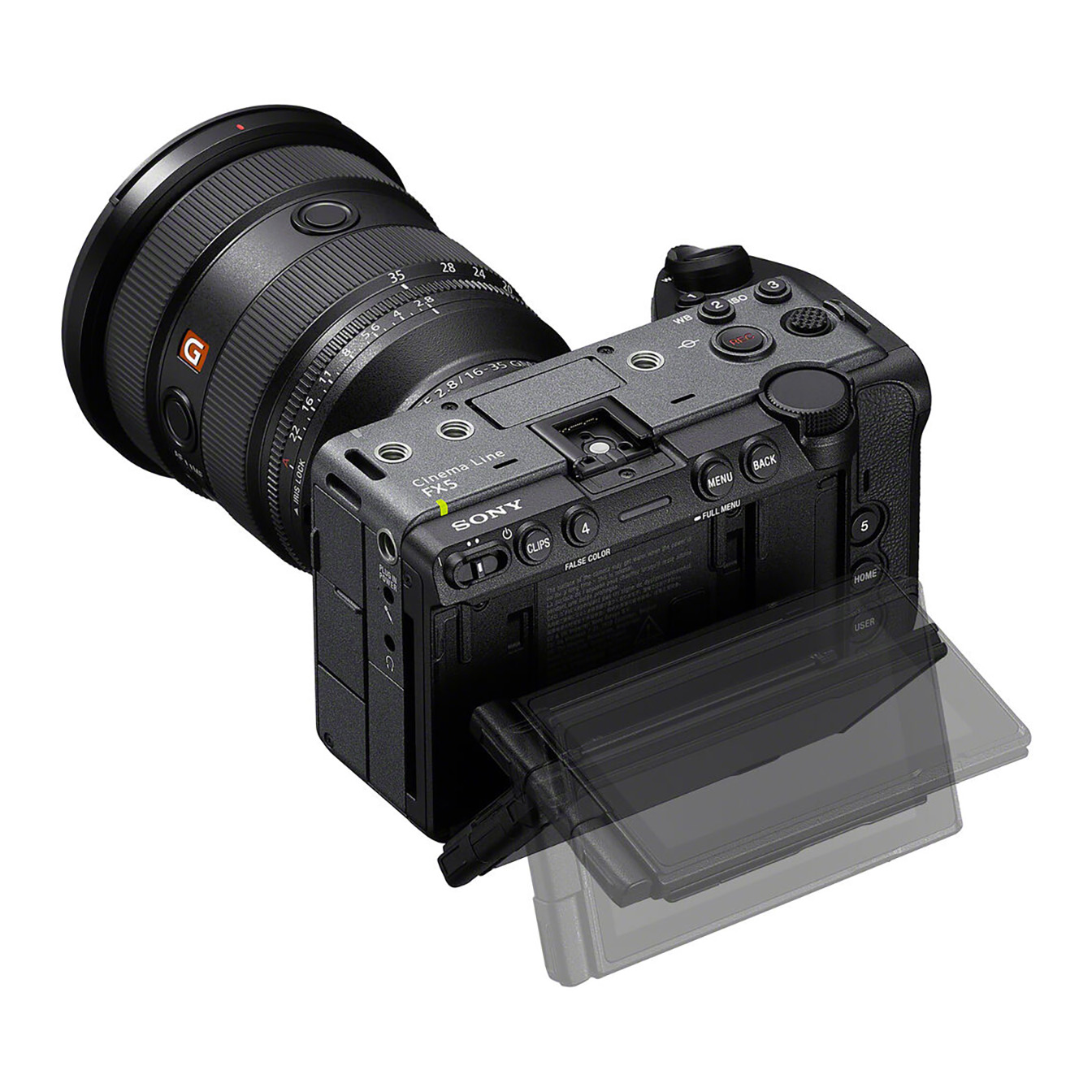

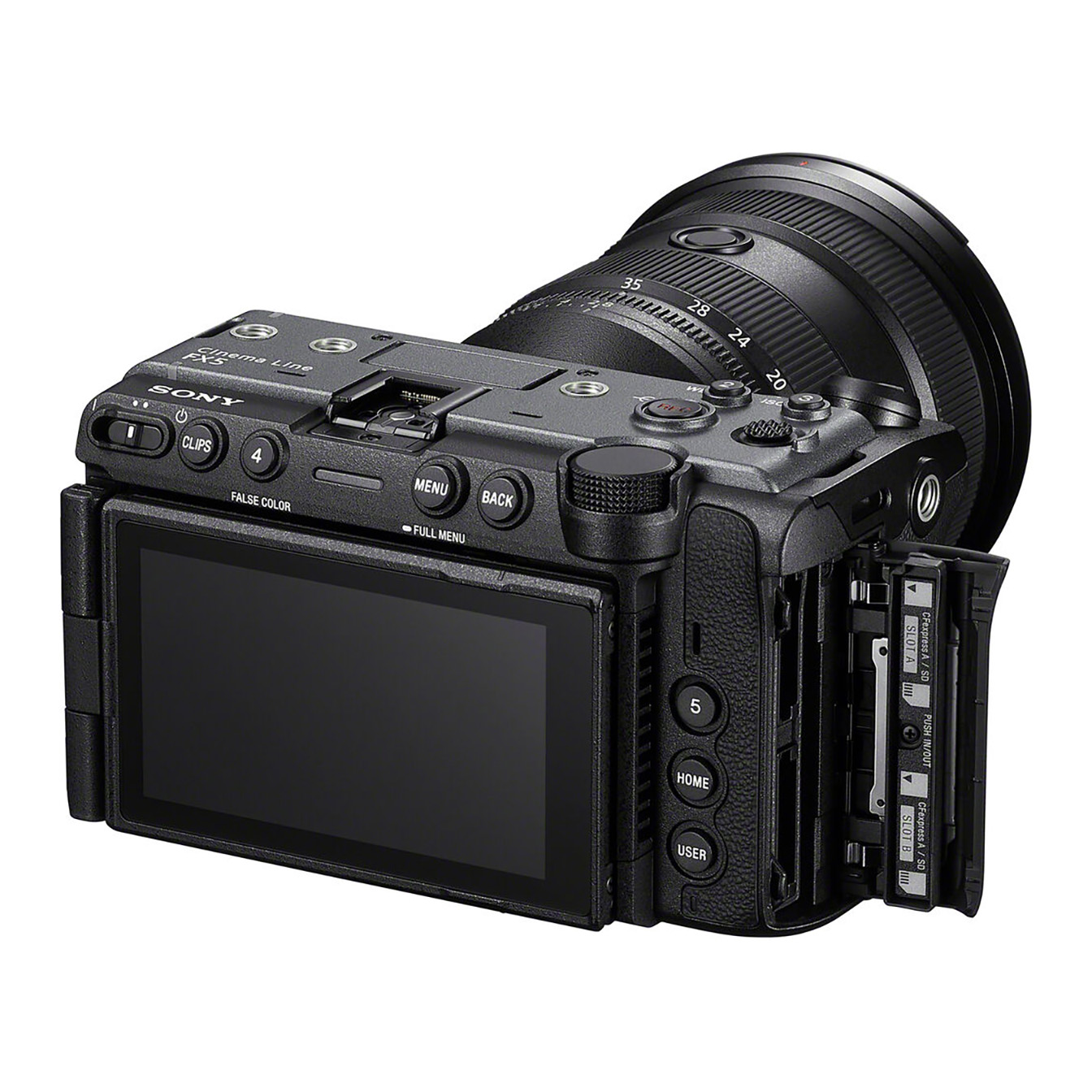

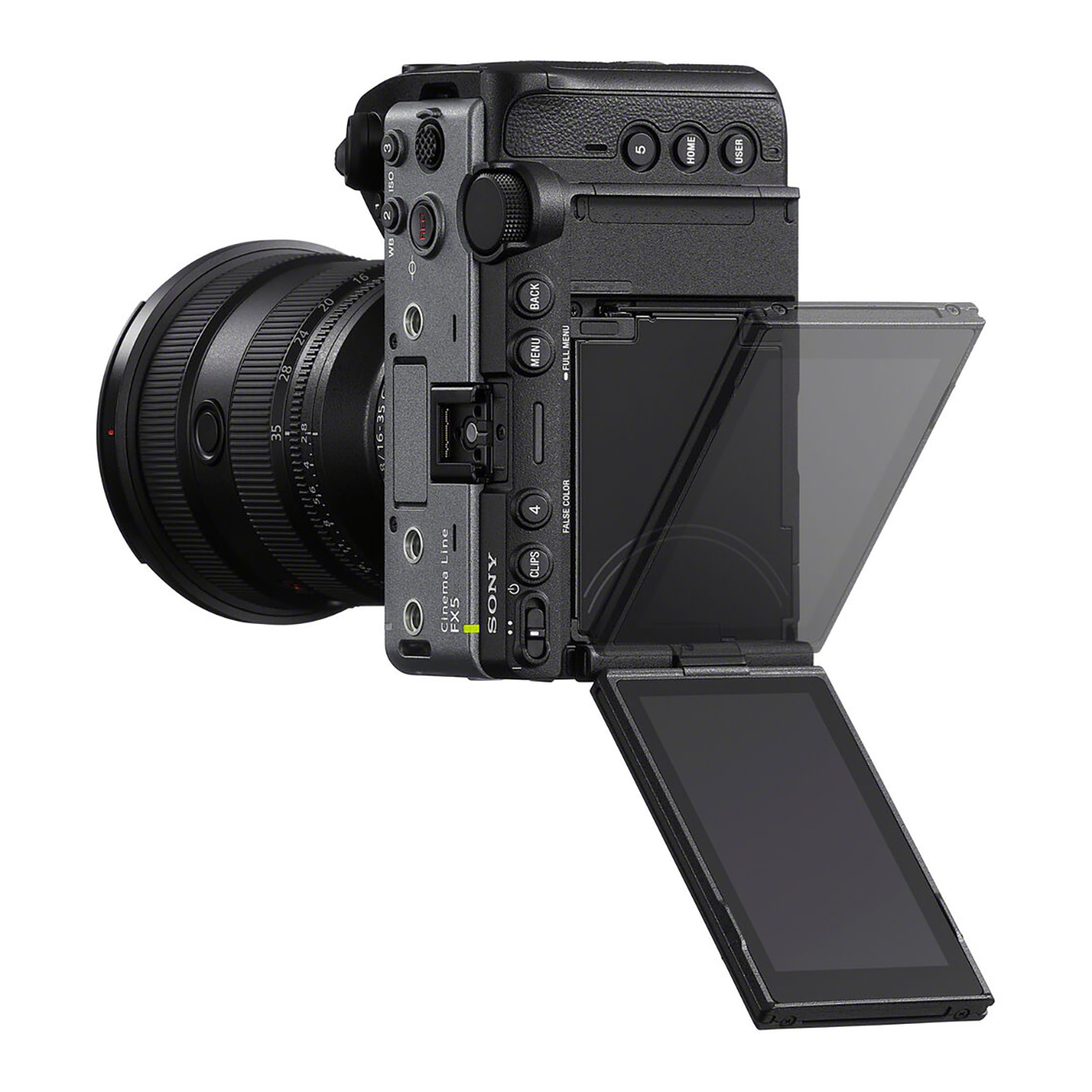

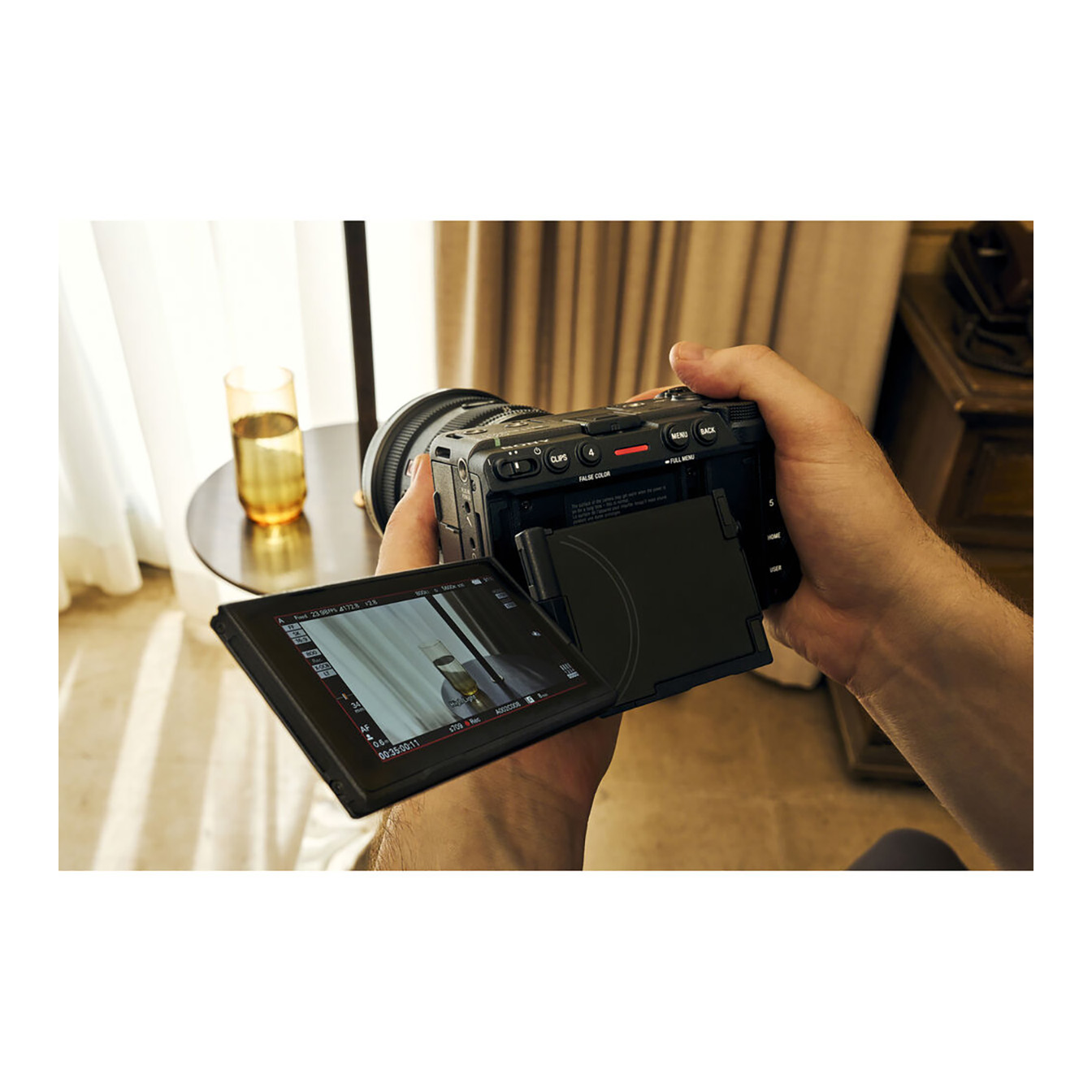

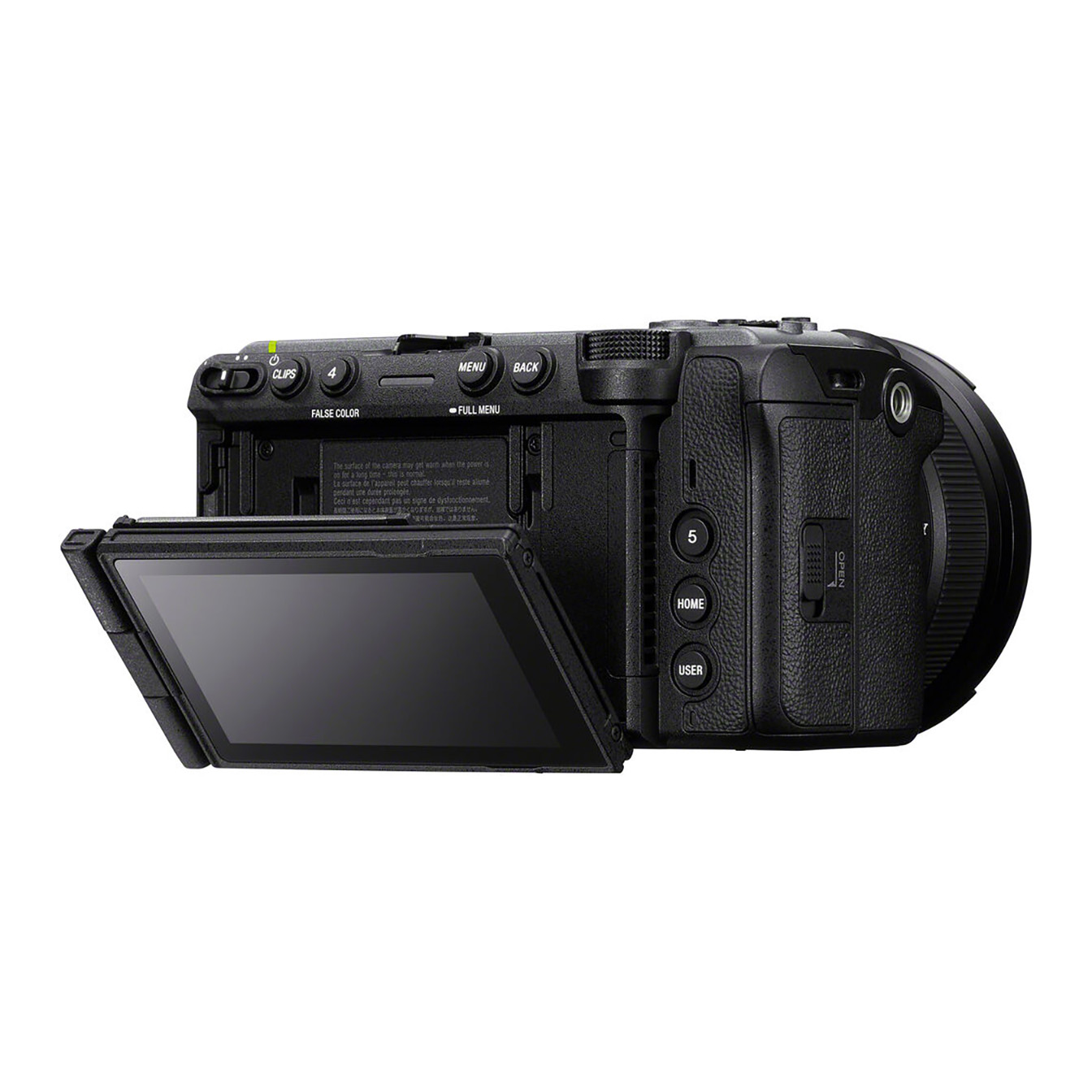

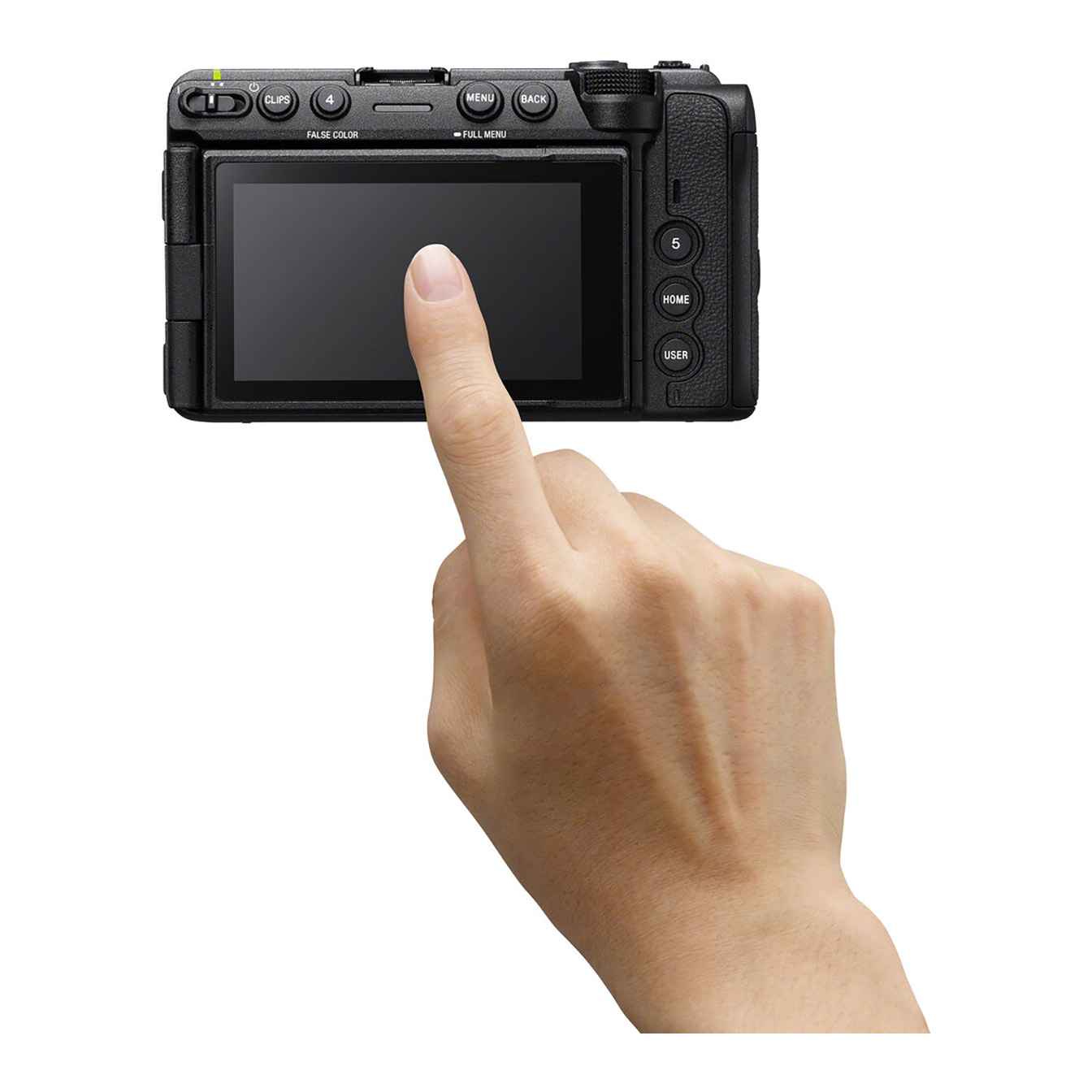

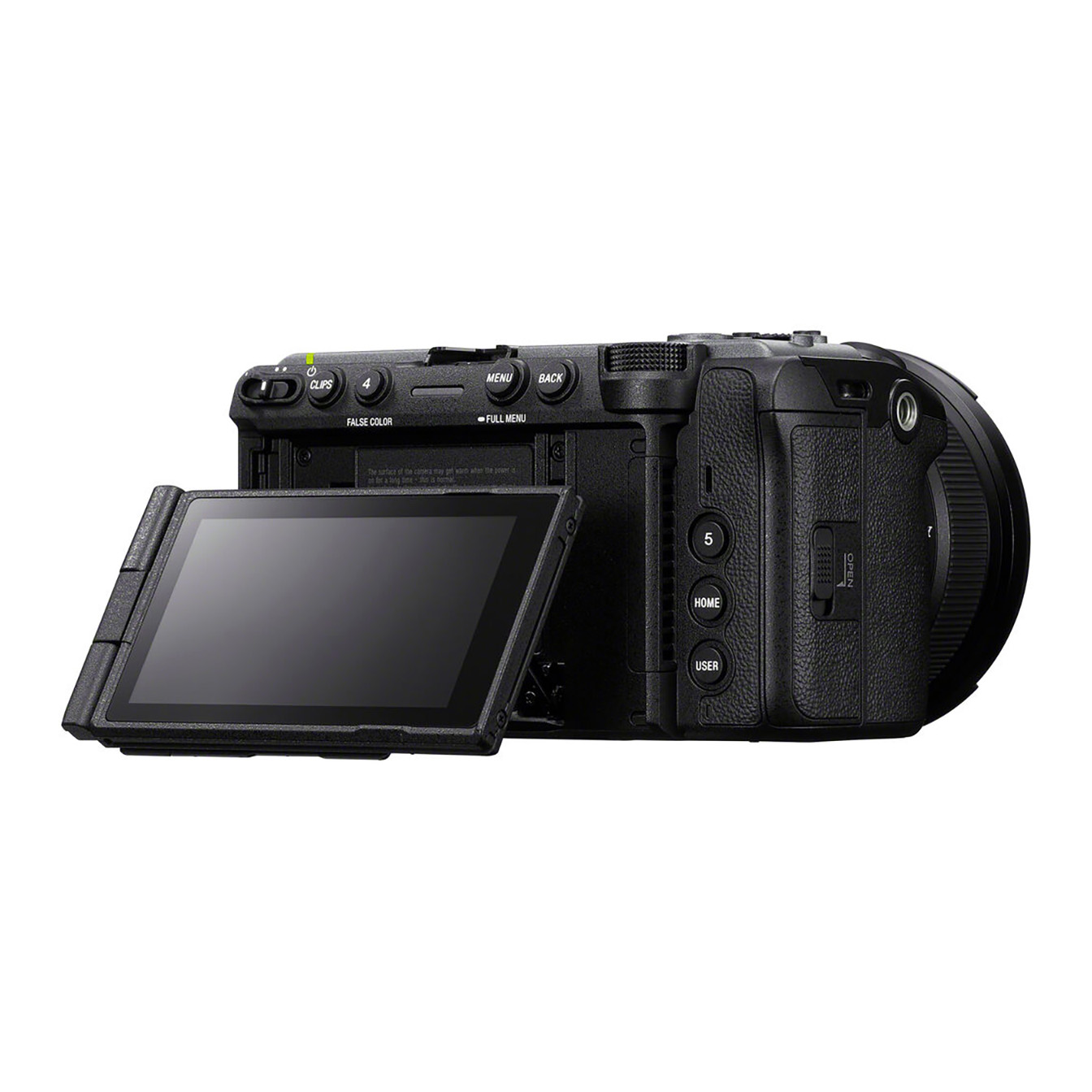

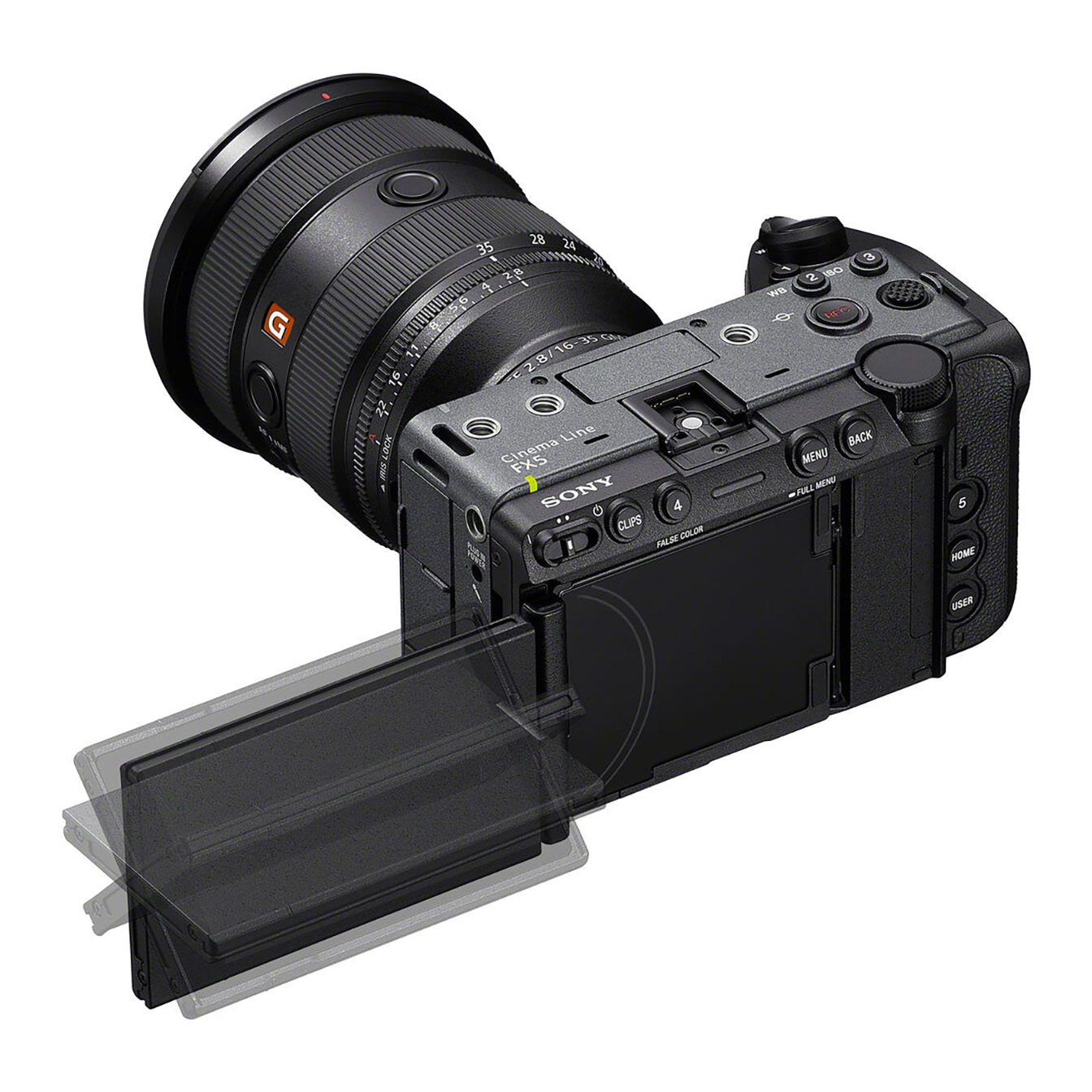

3.5″ 4-Axis Multi-Angle Touchscreen: Articulating 16:9 widescreen display moves across four axes for high, low, or complex shooting angles, running Sony’s intuitive “BIG 6” cinema interface.

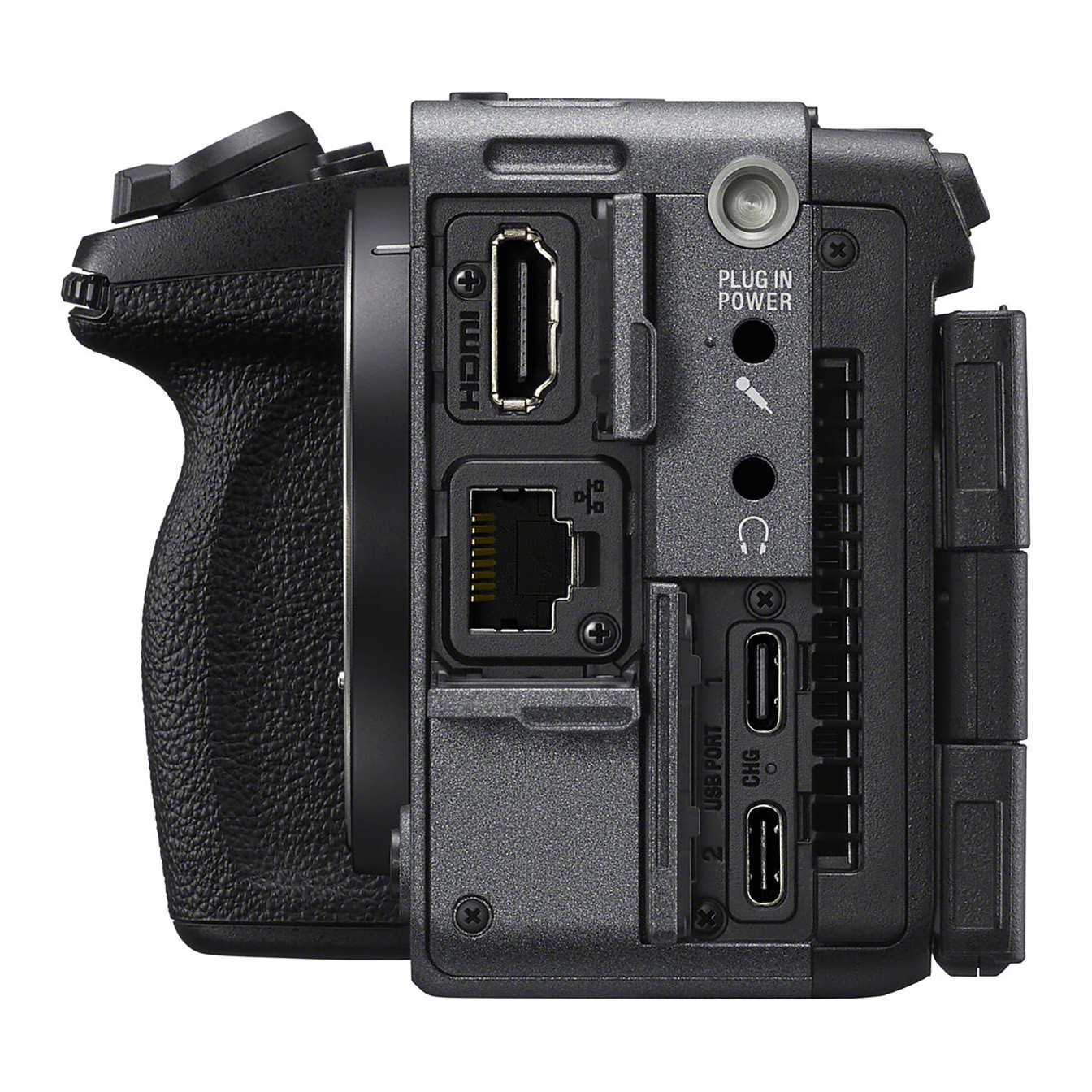

Dual USB-C Ports & BNC Timecode Sync: Outfitted with dual high-speed USB-C interfaces, full-size HDMI, Ethernet, 3.5mm audio ports, and USB-C-to-BNC timecode adapter support for multicamera sync.

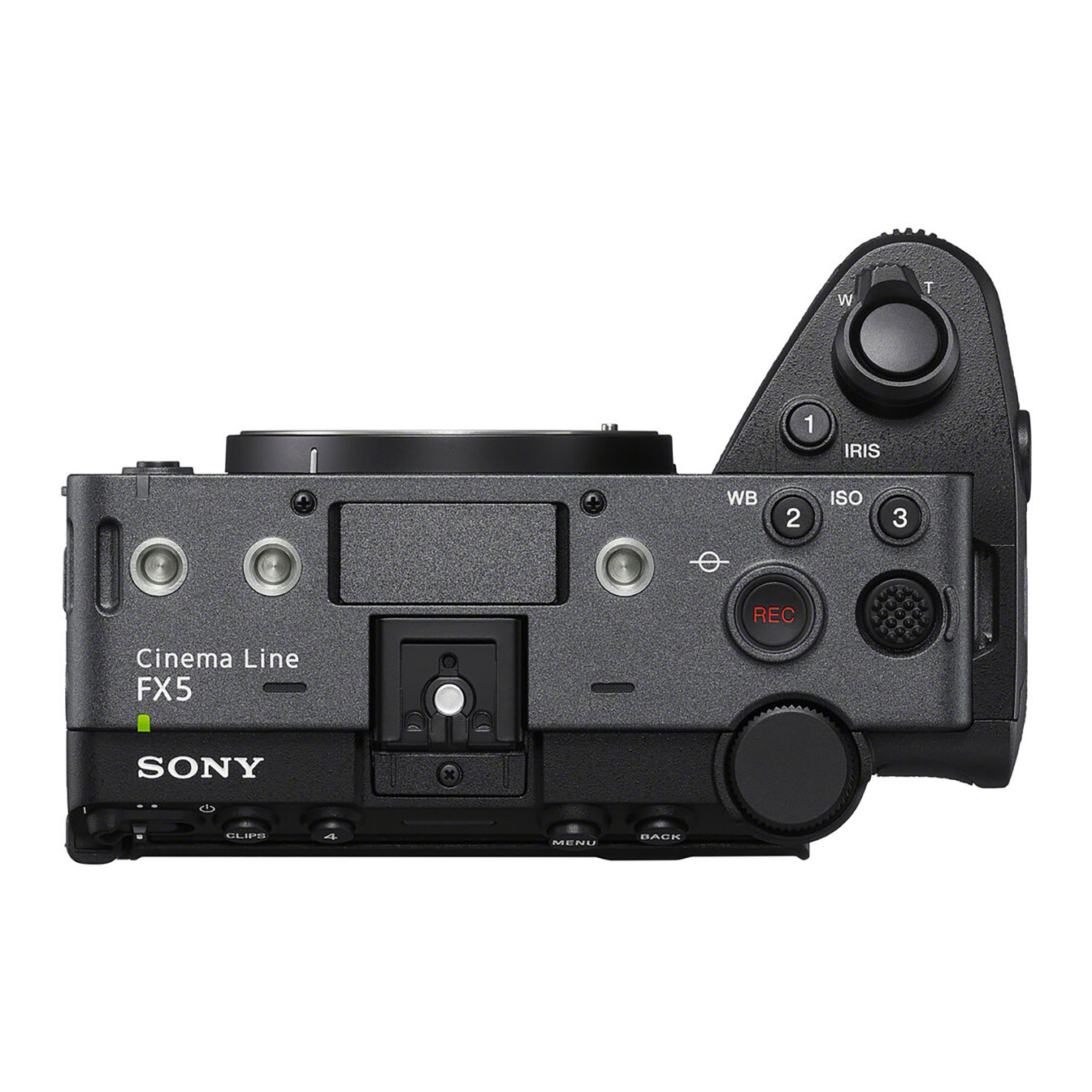

Optional DVF-EL1 Viewfinder Compatibility: Features a dedicated top terminal to mount the optional high-brightness, 90° tilting OLED electronic viewfinder (Note: EVF and XLR Handle share mounting proximity and cannot be used simultaneously).

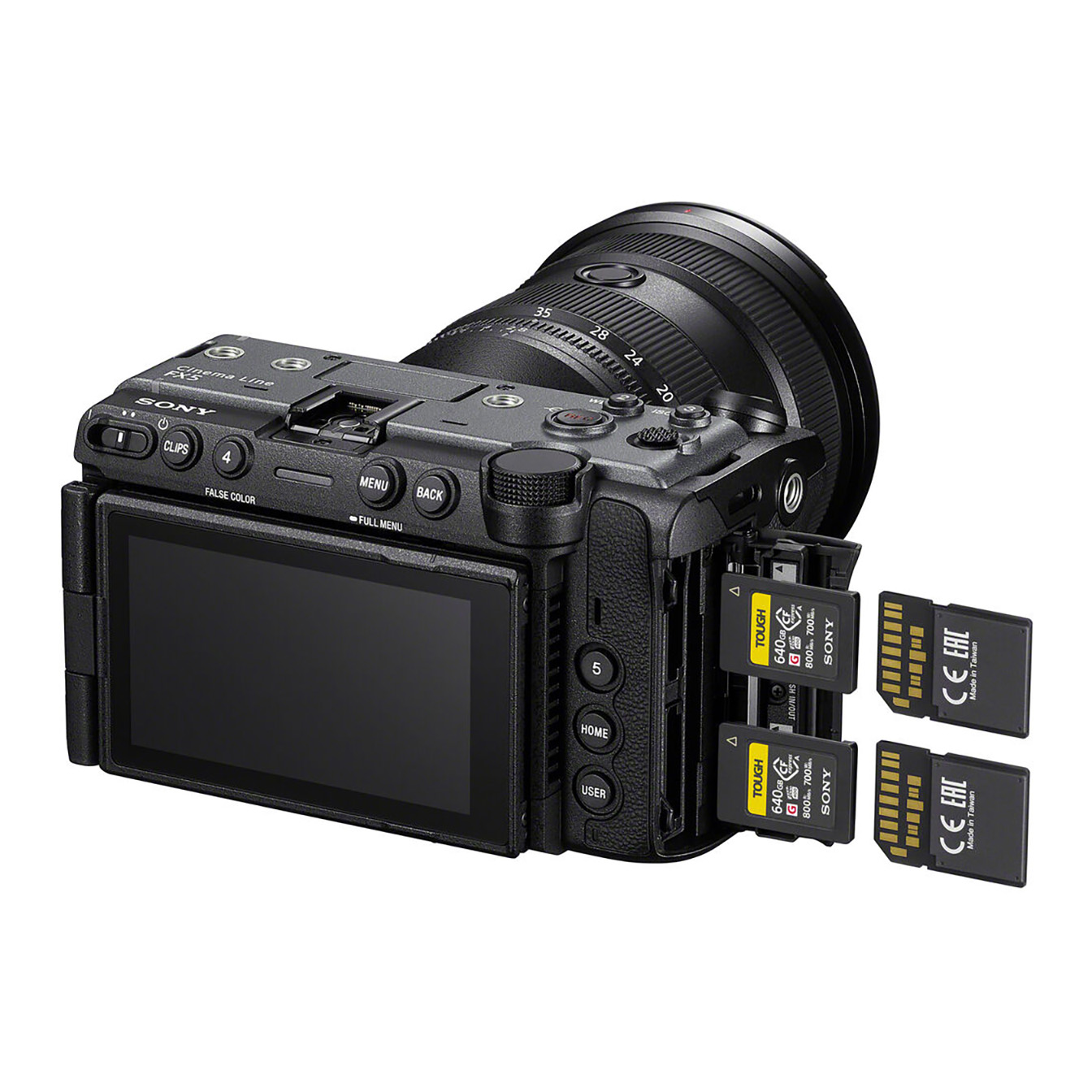

Dual CFexpress Type A/SD Card Slots: Dual multi-media slots accommodate high-speed CFexpress Type A cards or SD UHS-II media for flexible backup and raw recording options.
High-Capacity NP-SA100 Battery: Powered by high-capacity NP-SA100 batteries to deliver over two hours of continuous internal 5K recording per charge.
Technical Specifications

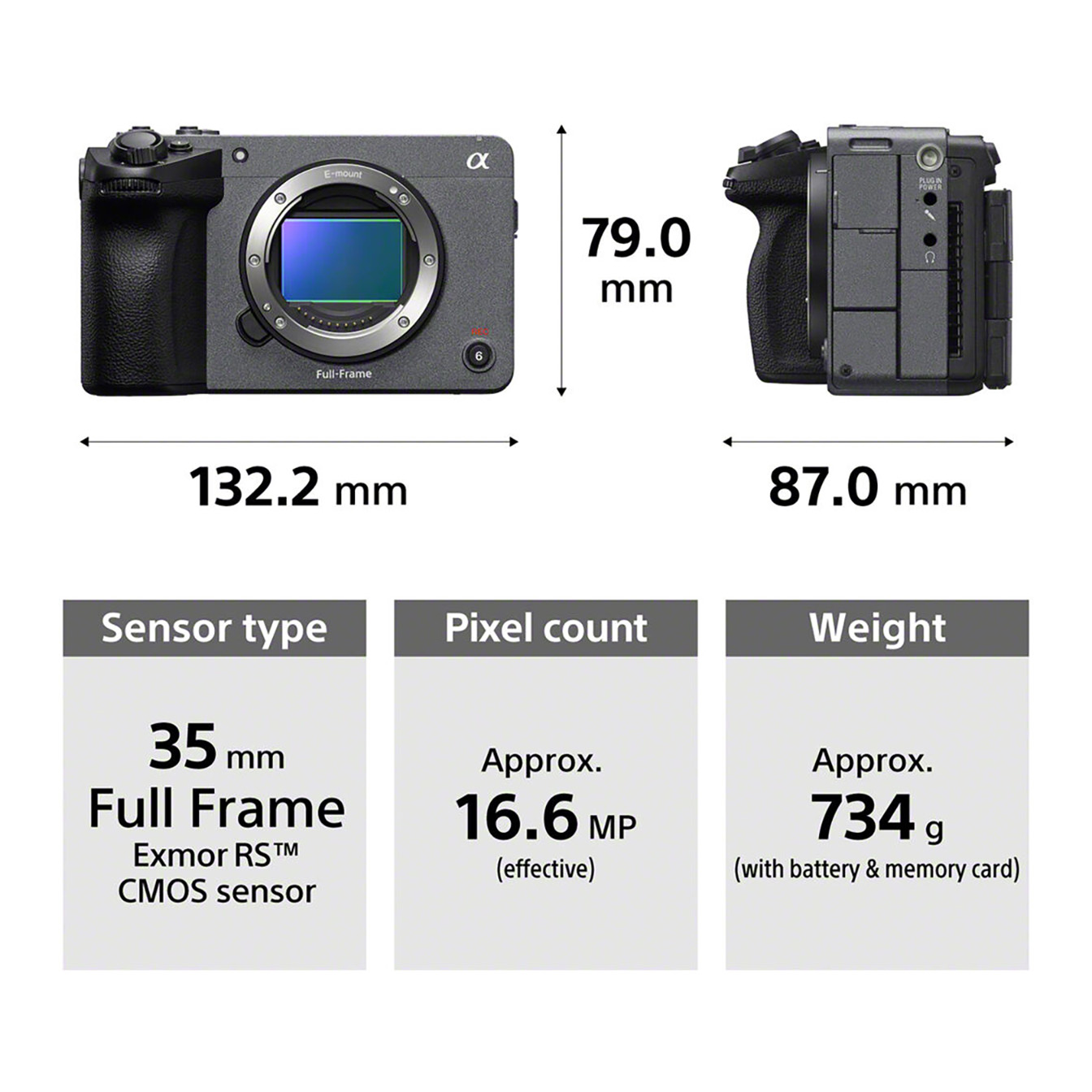

Camera Classification: Professional Full-Frame Cinema Line Camera Body Kit

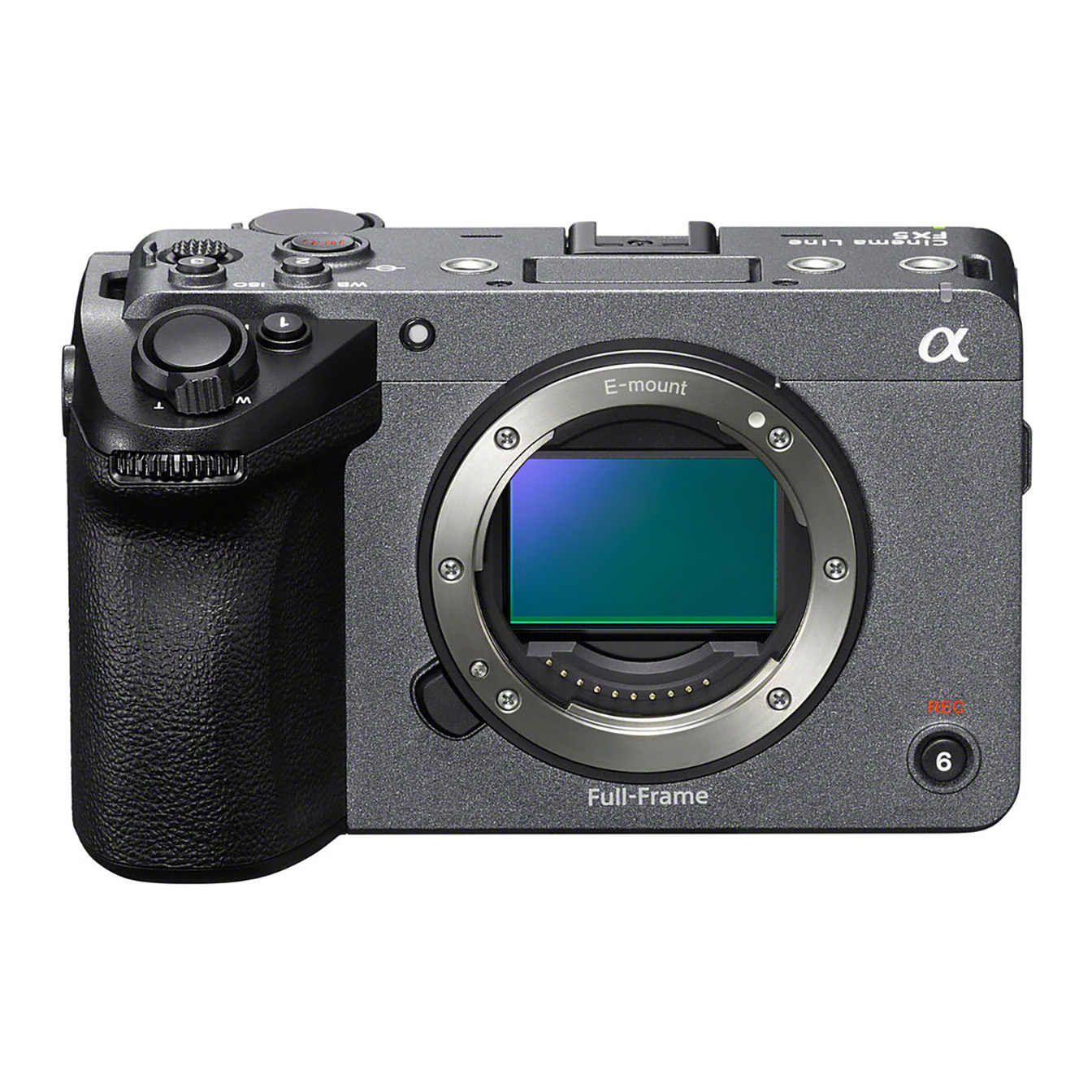

Lens Mount System: Sony E-Mount Native

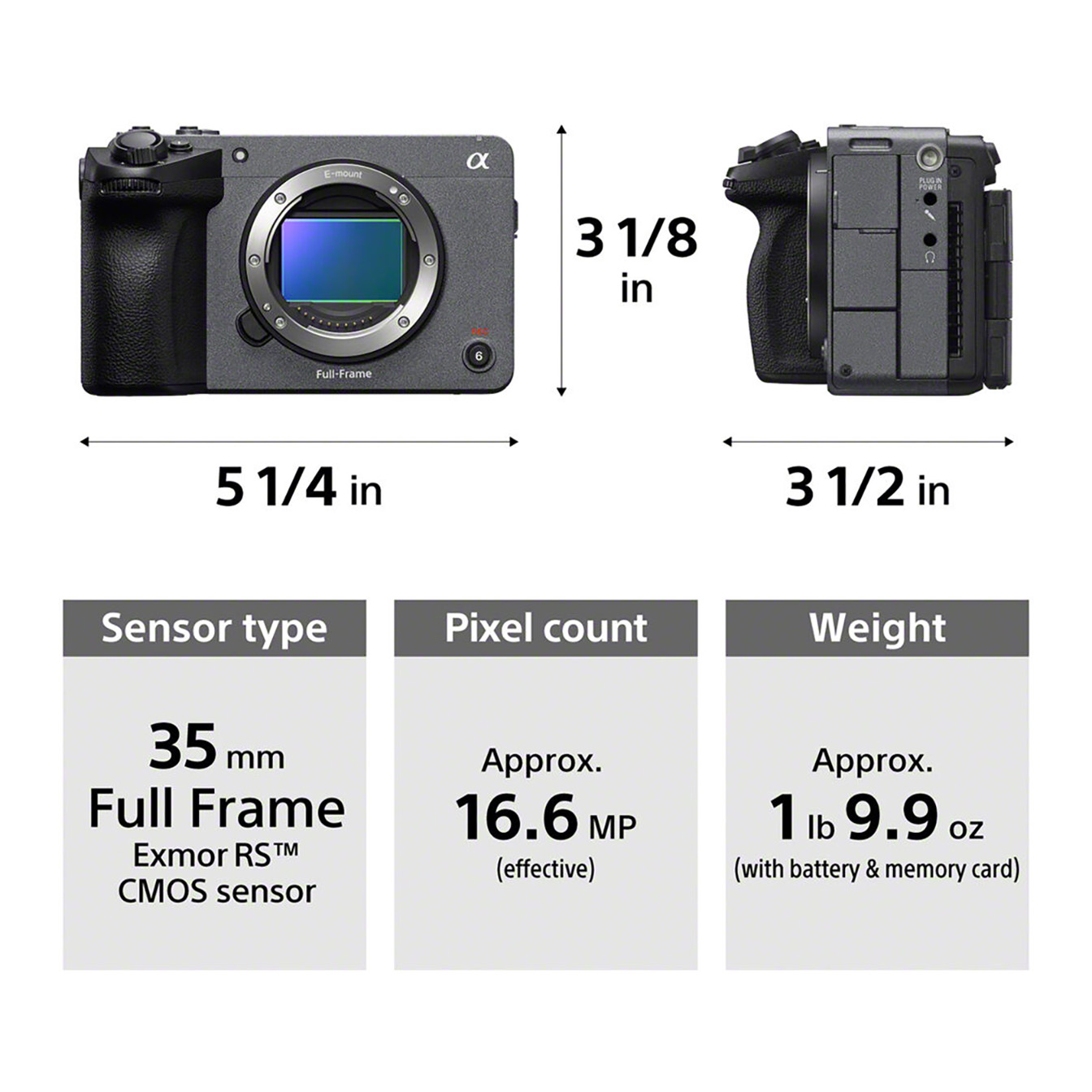

Effective Resolution: 16.6 Megapixels (5K Sensor Capture)
Image Sensor Matrix: Full-Frame Stacked Exmor RS CMOS (3:2 Aspect Ratio)
Native Base ISO Settings: Three Base ISOs (ISO 800 / ISO 4000 / ISO 12800)
Dynamic Range Depth: 16+ Stops (S-Log3 / X-OCN)
Internal Recording Options: 5K Open Gate (3:2) up to 60p in X-OCN (LT, C1, C2) & XAVC Codecs
Audio Capture Architecture: 24-Bit Linear PCM / 32-Bit Float (Via Included XLR-H2 Handle)
In-Body Stabilization: 5-Axis Sensor-Shift IBIS with Active Roll Electronic Mode
Expansion Storage Interface: Dual Card Slots (Slot 1 & 2: CFexpress Type A / SD UHS-II)

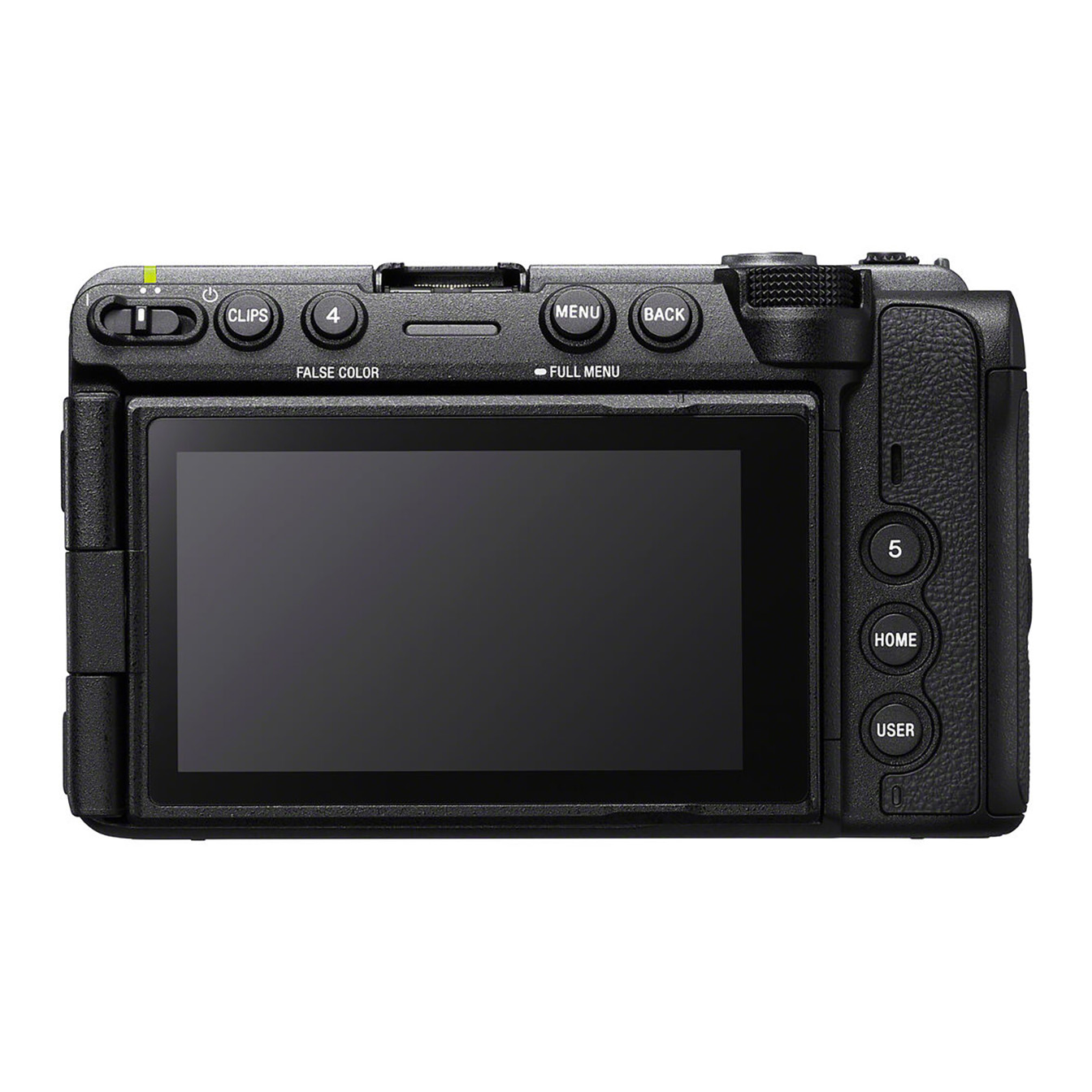

Display Monitor: 3.5-Inch 16:9 4-Axis Multi-Angle Touchscreen LCD
Power Source Requirements: High-Capacity NP-SA100 Rechargeable Battery Pack
