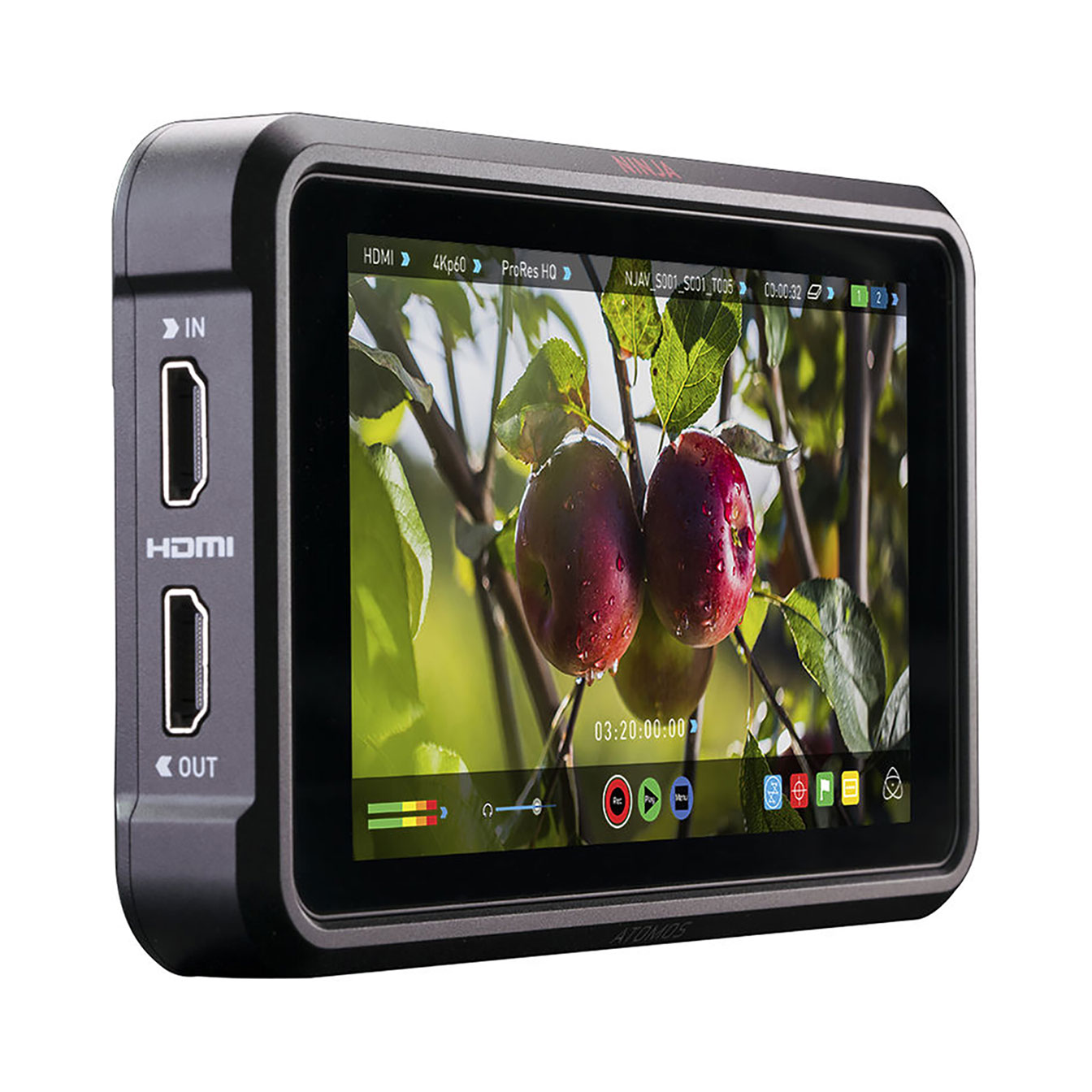

Atomos Ninja V 5″ 4K HDMI Recording Monitor

The Atomos Ninja V is a versatile 5-inch on-camera recording monitor engineered for professional video monitoring and external raw recording. Featuring a daylight-viewable 10-bit IPS LCD display with 1000 cd/m² brightness and AtomHDR technology, it supports over 10 stops of dynamic range for accurate monitoring of log gamma footage from Sony, Canon, Panasonic, Nikon, RED, and ARRI cameras. The Ninja V captures up to DCI 4K60 and 5K/6K raw video in high-quality 10-bit 4:2:2 Apple ProRes, ProRes RAW, and Avid DNxHR formats directly to 2.5-inch SSDs or AtomX SSDmini drives via HDMI. Housed in a durable aluminum chassis, it includes comprehensive monitoring tools like anamorphic de-squeeze, custom LUT support, focus peaking, and false color, and can be expanded using optional AtomX SDI, CONNECT, and CAST modules.

Key Features and Specifications

* 5-Inch Daylight Viewable Display: High-brightness 1920 x 1080 IPS LCD screen with 1000 cd/m² backlight and 10-bit color processing for clear outdoor monitoring.
* AtomHDR & Log Format Support: Displays 10+ stops of dynamic range from camera log profiles with built-in preview support for ARRI, Canon, FUJIFILM, Nikon, Panasonic, RED, and Sony log gamuts.
* ProRes RAW & DCI 4K60 Capture: Records DCI/UHD 4K up to 60 fps, 1080p up to 120 fps, and 5K/6K raw in Apple ProRes RAW, ProRes, and Avid DNxHR.
* Direct-to-SSD Recording: Bypasses camera internal compression and recording limits by storing files directly to standard 2.5-inch SATA SSDs or compact AtomX SSDmini media.
* Professional Monitoring Suite: Includes anamorphic de-squeeze (2x, 1.5x, 1.33x, 8:3), custom 3D LUT loading, waveform, vectorscope, focus peaking, and frame guides.
* Expansion Module System: Modular rear slot supports optional AtomX SDI, AtomX SYNC, AtomX CAST multi-cam switcher, and Atomos CONNECT streaming/camera-to-cloud modules.
* Wireless Control & Timecode: Built-in Bluetooth LE support for AtomRemote app control alongside AirGlu wireless timecode synchronization.
* Construction & Power: Durable aluminum frame powered via a single Sony L-series (NP-F) battery plate or DC power source.

Condition and Included Accessories

* Included Accessories: Atomos Ninja V 5-inch 4K HDMI monitor unit and NP-F rechargeable battery included (power supply, SSD master caddy, charger and drive dock not included).

* Physical and Operational Condition: Screen display surface shows visible cosmetic scratches (does not impair image viewing or touchscreen responsiveness when powered on).

* Body: Exterior aluminum chassis shows cosmetic scuffs and wear along the outer frame from normal rig mounting and handling.
