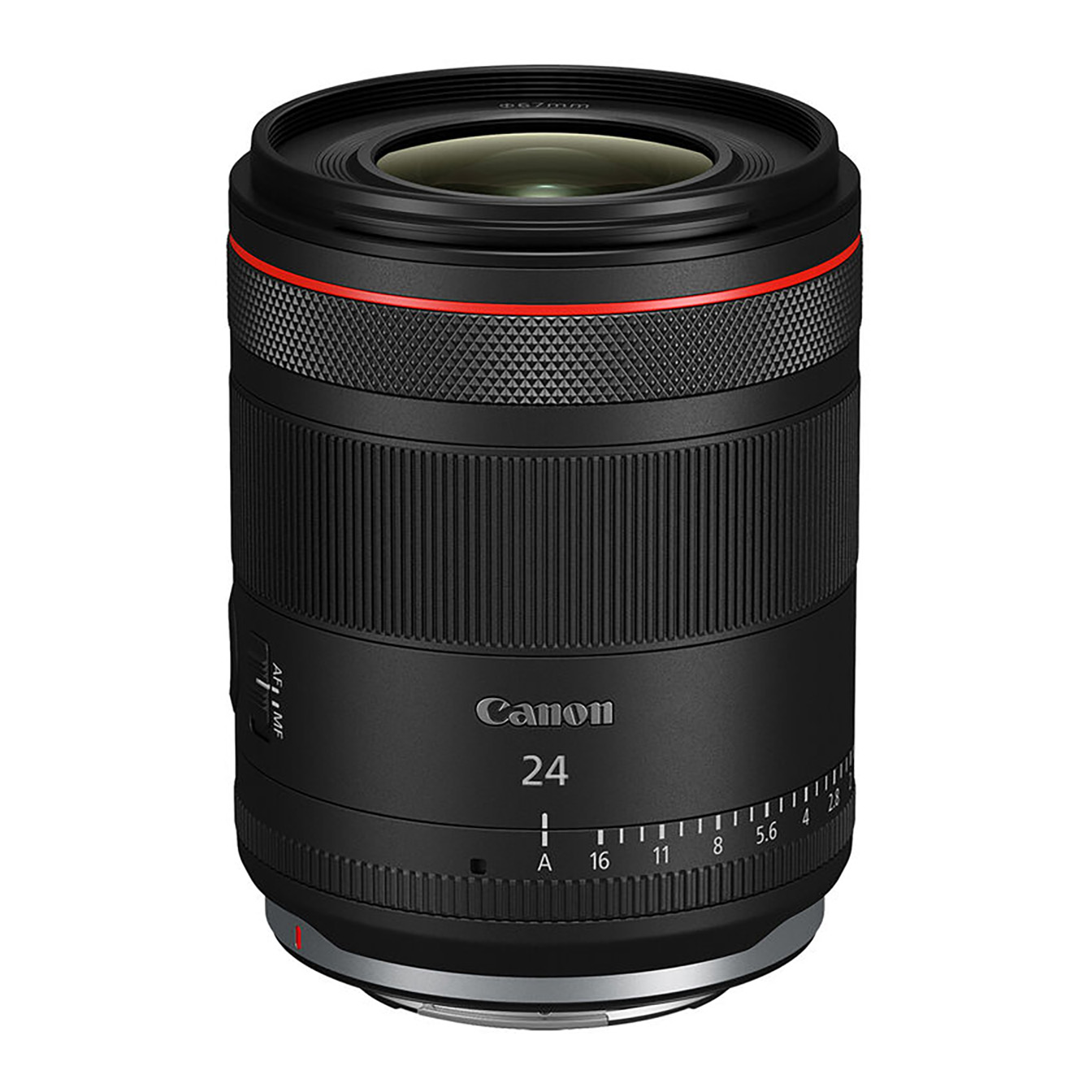

Canon RF 24mm f/1.4 L VCM Lens (Canon RF)

Canon RF 24mm f/1.4 L VCM Lens
Professional Full-Frame Hybrid Wide-Angle Prime for Canon RF Mount – Fast f/1.4 Maximum Aperture, Dual Motor AF System (Voice Coil Motor & Nano USM), Dedicated Manual Iris / Aperture Ring, Circular 11-Blade Diaphragm, Advanced Optics (2 UD & 1 Aspherical Elements), Air Sphere (ASC), Subwavelength Structure (SWC), Super Spectra (SSC) & Fluorine Coatings, Programmable Lens Function Button, Rear Gel Filter Holder, Weather-Resistant L-Series Construction, Includes Front & Rear Caps (No Hood / Excellent Condition)

The Canon RF 24mm f/1.4 L VCM is a professional wide-angle hybrid prime lens engineered specifically for full-frame Canon RF-mount mirrorless cameras, designed to meet the rigorous demands of both high-end still photography and cinema video production. Offering an expansive 24mm wide-angle perspective, its bright f/1.4 maximum aperture excels in challenging low-light environments and allows for shallow depth-of-field control with smooth background blur, supported by an 11-blade circular aperture diaphragm.

Built around a hybrid cinema-still architecture, the lens employs a dual autofocus drive pairing a high-thrust Voice Coil Motor (VCM) for the rear floating focus group with a Nano USM for the forward group, delivering fast, smooth, and near-silent focusing with virtually suppressed focus breathing. The optical construction consists of 15 elements in 11 groups, incorporating two Ultra-Low Dispersion (UD) elements and one high-precision aspherical element to correct chromatic aberrations, field curvature, and spherical distortion across the frame. Advanced multi-coating technologies—including Air Sphere Coating (ASC), Subwavelength Structure Coating (SWC), and Super Spectra Coating (SSC)—substantially minimize internal reflections, flare, and ghosting in high-contrast or backlit shooting scenarios. The physical design features a dedicated manual iris/aperture ring with clickless operation for video iris pulls, a tactile AF/MF switch, a customizable Lens Function (L-Fn) button, a programmable control ring, a 67mm front filter thread, a rear gel filter holder, and comprehensive L-series weather sealing with a protective front fluorine coating.

CONDITION DIAGNOSTICS & PHYSICAL NOTES

Included Components: Supplied with the Canon RF 24mm f/1.4 L VCM lens, Canon 67mm front snap-on lens cap, and Canon RF-mount rear bayonet dust cap. (Dedicated lens hood is NOT included).

Exterior & Physical Status: EXCELLENT CONDITION. The matte black barrel, ribbed focus and control rings, clickless manual iris ring, programmable function button, and weather-sealed RF bayonet mount show minimal signs of light handling.

Optical & Electronic Status: FULLY FUNCTIONAL. Optical glass elements are pristine and free of scratches, haze, or fungus; anti-reflective coatings are intact; the hybrid VCM and Nano USM autofocus motors focus quickly, silently, and accurately; the manual focus and control rings turn smoothly; the manual iris ring operates reliably; the electronic 11-blade diaphragm stops down precisely across all f-stops.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

Hybrid Photo & Cinema Design: Purpose-built for seamless hybrid production with dedicated video iris controls and rapid still autofocus response.

Ultra-Fast f/1.4 Maximum Aperture: Excels in dim lighting and enables shallow depth-of-field isolation with smooth bokeh.

Dual VCM & Nano USM Autofocus: Voice Coil Motor (VCM) and Nano USM provide swift, smooth, and near-silent focusing with minimal focus breathing.

Dedicated Manual Iris Ring: Enables tactile, clickless manual aperture adjustments during video recording for smooth exposure transitions.

High-Resolution L-Series Optics: Integrates 2 UD elements and 1 aspherical element for edge-to-edge sharpness and reduced chromatic aberration.

Advanced Optical Coatings: Air Sphere (ASC), Subwavelength Structure (SWC), and Super Spectra (SSC) coatings minimize ghosting and flare.

Close-Up Capability & Rear Filter Holder: Features a close 9.4″ minimum focus distance and includes a built-in rear gel filter holder alongside a 67mm front thread.

Circular 11-Blade Diaphragm: Yields smooth, rounded out-of-focus highlights and pleasing bokeh separation.

Robust L-Series Weather Sealing: Gasket-sealed construction protects internal mechanics and electronics against dust and moisture in demanding field environments.

TECHNICAL SPECIFICATIONS

Product Type: Full-Frame Wide-Angle Prime Mirrorless Lens (Hybrid Photo / Cinema)

Model: Canon RF 24mm f/1.4 L VCM

Lens Series: Canon L-Series

Lens Mount: Canon RF Mount

Format Compatibility: 35mm Full-Frame (APS-C Compatible: 38.4mm Equivalent)

Focal Length: 24mm

Maximum Aperture: f/1.4

Minimum Aperture: f/16

Optical Design: 15 Elements in 11 Groups (2 UD Elements & 1 Aspherical Element)

Lens Coatings: Air Sphere Coating (ASC), Subwavelength Structure Coating (SWC), Super Spectra Coating (SSC) & Front Fluorine Coating

Autofocus Drive: Dual System – Voice Coil Motor (VCM) Rear Drive + Nano USM Forward Drive

Diaphragm Blades: 11 (Circular)

Minimum Focusing Distance: Approx. 9.4 inches / 24 cm

Maximum Magnification: 0.17x

Filter Thread Size: 67 mm (Front) & Attachable Rear Gel Filter Holder

Barrel Controls: Dedicated Manual Iris Ring, Programmable Control Ring, AF/MF Switch, Lens Function (L-Fn) Button

Dimensions: Approx. 3.0 x 3.9 inches / 76.5 x 99.3 mm

Weight: Approx. 18.2 oz / 515 g

Physical Condition: Excellent overall cosmetic, optical, and mechanical condition

Included Accessories: Front Snap-On Lens Cap (67mm), Rear Bayonet Dust Cap (Lens Hood NOT included)

Color / Finish: Matte Black with Signature Red L-Series Accent Ring

Function: Landscape, Architectural Interiors, Environmental Portraiture, Commercial Video, Cinema Production & Low-Light Stills
