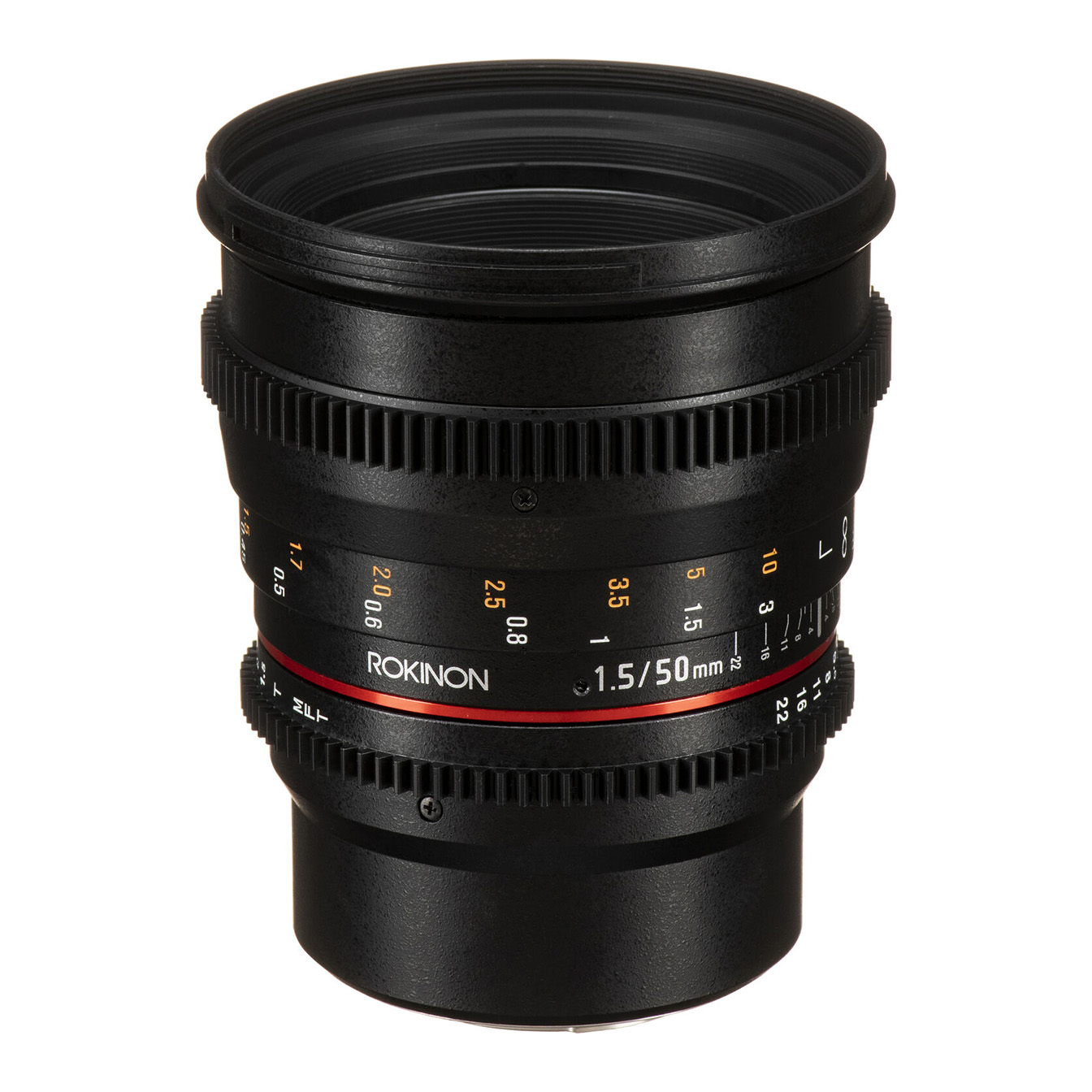

Rokinon 50mm T1.5 AS UMC Cine DS Lens for Micro Four Thirds

Rokinon 50mm T1.5 AS UMC Cine DS Lens for Micro Four Thirds
Fast Manual Focus Cine Prime – 100mm Full-Frame Equivalent, De-Clicked Geared Aperture, Standard Follow Focus Gearing & Color-Matched DS Optics (Includes Front & Rear Caps, Dedicated Lens Hood)

The Rokinon 50mm T1.5 AS UMC Cine DS is a fast manual focus cinema prime lens designed for Micro Four Thirds mirrorless camera systems. Providing a 35mm-equivalent focal length of 100mm, this short-telephoto cine optic is tailored for narrative filmmaking, portraiture, documentations, and low-light video capture. Its fast T1.5 maximum transmission aperture enables low-light shooting and shallow depth-of-field control with smooth background isolation, aided by an 8-blade iris.

Engineered specifically for video workflows, the Cine DS series features industry-standard 0.8 MOD pitch gearing on both the focus and de-clicked aperture rings for follow-focus and lens motor integration. Dual-sided, high-contrast distance and aperture markings face laterally to assist focus pullers from either side of the camera rig. As part of the Cine DS line, its gear ring positioning is unified across the lens family to allow rapid lens swaps without re-adjusting rig accessories. Optically, it incorporates nine elements in six groups—including one aspherical element, one hybrid aspherical element, and UMC multi-coating—to control aberrations, suppress ghosting and flare, and maintain color matching across the DS lens lineup. An internal focusing (IF) design reduces lens breathing to maintain a consistent field of view during focus pulls.

CONDITION DIAGNOSTICS & PHYSICAL NOTES

Included Accessories: INCLUDES FRONT & REAR CAPS, DEDICATED LENS HOOD. Comes equipped with the front lens cap, rear lens cap, and removable bayonet lens hood.

Exterior & Housing: PRE-OWNED. The outer metal lens barrel, geared focus/aperture rings, lateral focus markings, and bayonet mount show light superficial surface marks consistent with careful handling.

Mechanical & Optical Status: FULLY FUNCTIONAL. Optical elements are clear and free of damage; de-clicked iris movement, manual focus helicoid, and 0.8 MOD gear rings operate smoothly.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

100mm Full-Frame Equivalent Telephoto Prime: Short telephoto angle of view ideal for close-up dialogue, portraits, and subject isolation.

Fast T1.5 Transmission Aperture & De-Clicked Iris: Enables smooth exposure transitions without click-stops for iris pulls in low light.

Unified Cine DS Rigging Architecture: Standardized gear positioning across the DS series permits lens changes without repositioning follow-focus units.

Color-Matched Optical Construction: Factory-tested to maintain color, tone, and contrast consistency across the Rokinon Cine DS prime lineup.

Reduced Lens Breathing & Dual-Sided Markings: Internal focusing maintains framing during focus changes, with dual focus scales printed on both sides of the barrel.

TECHNICAL SPECIFICATIONS

Lens Type: Manual Focus Cinema Prime Lens

Lens Mount System: Micro Four Thirds Native

Focal Length: 50 mm (35mm Full-Frame Equivalent: 100 mm)

Maximum Aperture: T1.5

Minimum Aperture: T22

Minimum Focus Distance: 1.5 feet / 0.45 m

Optical Construction: 9 Elements in 6 Groups (1 Aspherical, 1 Hybrid Aspherical)

Optical Coatings: Ultra Multi-Coating (UMC)

Gear Pitch: Industry Standard 0.8 MOD on Focus and Aperture Rings

Focus Control: Manual Focus Only with Internal Focus (IF) Architecture

Aperture Control: Manual De-Clicked Iris Ring

Diaphragm Design: 8-Blade Iris

Filter Thread Diameter: 77 mm

Included Accessories: Front Lens Cap, Rear Lens Cap, Dedicated Lens Hood

Dimensions (Diameter x Length): Approx. 3.2 x 2.9 inches / 81.6 x 73.6 mm

Weight: Approx. 18.2 oz / 515 g
