Atomos Ninja TX GO 5.2″ HDMI Wi-Fi-Enabled Camera Monitor/Recorder

Atomos Ninja TX GO 5.2″ HDMI Wi-Fi-Enabled Camera Monitor/Recorder
Compact On-Camera Monitor/Recorder – 1,500 cd/m² Daylight-Viewable Screen, Built-In Connect Tech, 6K30 ProRes RAW & Built-In NDI/HX3 License

The Atomos Ninja TX GO is an HDMI-only 5.2-inch on-camera touchscreen monitor and recorder engineered for field production, streaming, and Camera-to-Cloud workflows. Powered by an updated AtomOS Linux operating system, it features a 1920 x 1080 IPS display with 1,500 cd/m² brightness for daylight visibility, 10-bit HDR monitoring, and Calibrite display calibration support. The monitor records raw video up to 6K30, 4K60, and 1080p120 via HDMI 2.0, saving files to an integrated CFexpress Type B card slot or external USB-C drive targets using high-speed PCIe/NVMe protocols.

Built-in AtomX Connect technology provides Wi-Fi streaming, an integrated NDI/HX3 license for network IP video workflows, and direct Camera-to-Cloud (C2C) uploads to Frame.io, Dropbox, and ATOMOSphere. All primary video codecs—including ProRes RAW, DNx, and H.265—are built in without requiring additional activations. The unit supports camera control, touch-to-focus, 3D LUT overlays, custom Log formats (ARRI, RED, Sony, Canon, Panasonic, Nikon, FUJIFILM), raw metadata capture, and exposure tools (False Color, EL Zone, Waveform, Anamorphic De-Squeeze). Power is supplied via an integrated L-series (NP-F) battery plate or a USB-C 30W Power Delivery port.

CONDITION DIAGNOSTICS & PHYSICAL NOTES

Exterior & Housing: PRE-OWNED. The chassis, rubberized button covers, and port seals exhibit light cosmetic wear from standard set handling.

Display & Optics: FULLY FUNCTIONAL. The 5.2-inch 1,500 cd/m² IPS touchscreen panel is clear with full touch sensitivity and zero dead pixels.

Electronic & Operational Status: FULLY FUNCTIONAL. HDMI 2.0 input/loop-through, CFexpress Type B slot, USB-C 30W PD, Wi-Fi antenna, C2C network upload, and NDI/HX3 licenses operate properly.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

1,500 cd/m² Daylight-Viewable Display: Bright 5.2″ 1920 x 1080 HDR IPS touchscreen with Calibrite calibration and LUT display support.

Built-In Connect Tech & NDI/HX3: Includes integrated Wi-Fi streaming, progressive C2C cloud uploads, and a factory-activated NDI/HX3 license.

6K30 ProRes RAW & Internal Codecs: Records up to 6K30 ProRes RAW, DNx, and H.265 to CFexpress Type B or USB-C media without additional codec fees.

HDMI 2.0 Input/Output & Camera Control: Supports up to 6K30, 4K60, and 1080p120 input signals with loop-through and automated camera triggers.

Flexible Power & AtomOS Linux OS: Powered via L-Series (NP-F) batteries or 30W USB-C PD power for cool, power-efficient field operation.

TECHNICAL SPECIFICATIONS

Device Type: On-Camera Touchscreen Monitor / Raw Video Recorder

Display Size & Resolution: 5.2-Inch IPS Touchscreen (1920 x 1080 Resolution)

Screen Brightness & Gamut: 1,500 cd/m² (Daylight Viewable) | 10-Bit (8+2 FRC) HDR / Rec. 709

Video Input / Output Ports: 1x HDMI 2.0 Input | 1x HDMI 2.0 Loop-Through Output

Recording Formats: 6K (up to 30p), 4K (up to 60p), 1080p (up to 120p)

Built-In Codec Support: Apple ProRes RAW, Apple ProRes, Avid DNxHD/DNxHR, H.265 (HEVC)

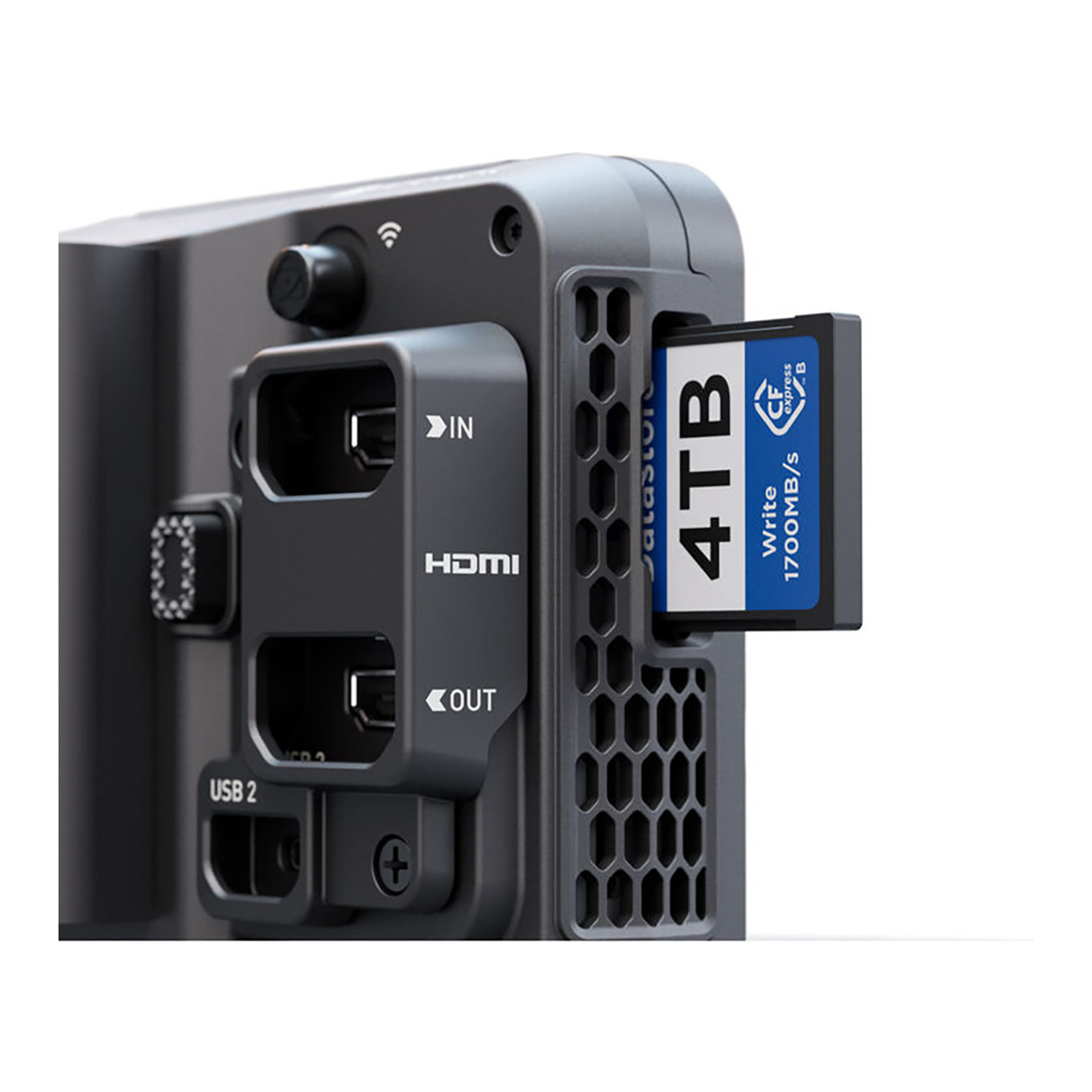

Recording Storage Media: 1x CFexpress Type B Slot | External USB-C Media (NVMe / PCIe)

Cloud & Wireless Protocols: Built-in Wi-Fi, Camera-to-Cloud (Frame.io / ATOMOSphere / Dropbox), NDI/HX3

Monitoring Tools: False Color (ARRI / EL Zone), Waveform, Vectorscope, Focus Peaking, Anamorphic De-Squeeze, 3D LUTs (.cube)

Power System: L-Series (NP-F) Battery Plate | USB-C Power Delivery (30W PD)

Dimensions (W x H x D): Approx. 5.9 x 3.6 x 1.2 inches / 151.0 x 91.5 x 31.0 mm

Weight: Approx. 12.7 oz / 360 g
