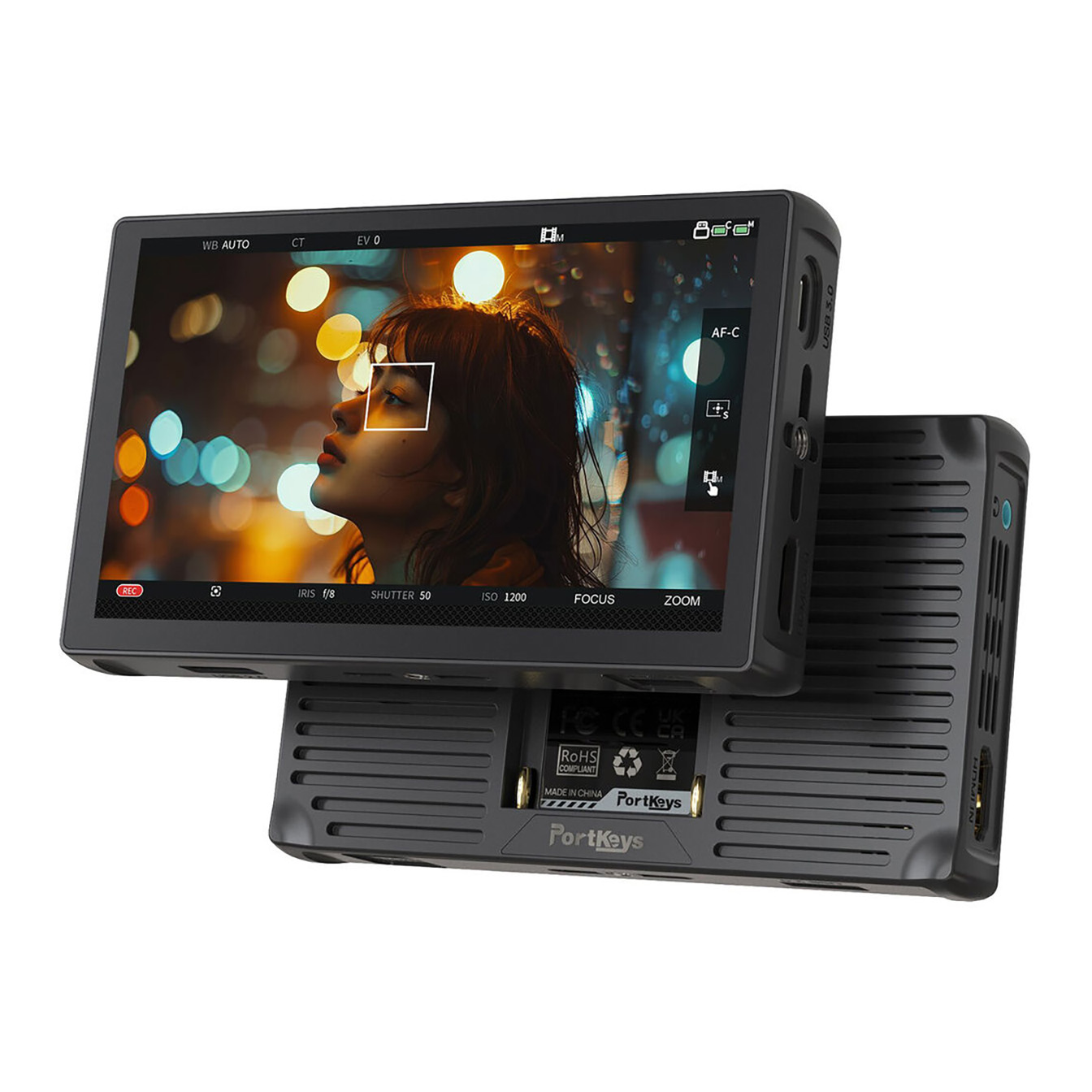

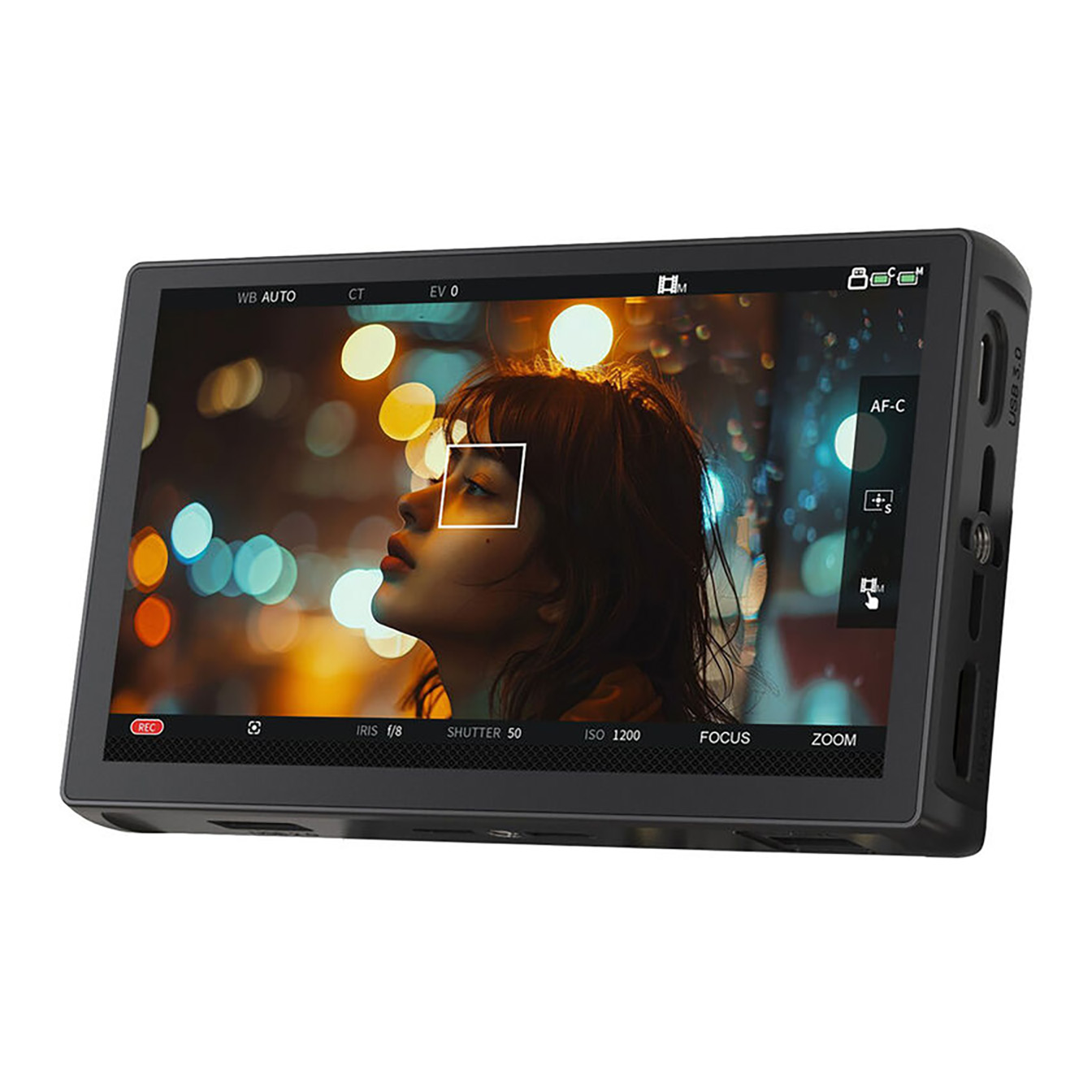

Rent NowPORTKEYS LH5C 5.4″ High-Bright Touchscreen Monitor with Wired Camera Control
Compact Professional On-Camera Field Monitor – 5.4″ IPS Touchscreen Display with Sharp 1920×1152 Resolution, 800 Nits (cd/m²) Daylight-Viewable Brightness, Wide Color Reproduction (85% DCI-P3 / Full Rec.709 Coverage), Wired Camera Control Interface with Dedicated Control Cables (Compatible with Sony, Canon, Panasonic, Blackmagic Design, and Z CAM), Touch-to-Focus Functionality, UHD 4K30 HDMI Input & 1080p60 HDMI Loop-Through Output, Custom 3D LUT Support via USB, Comprehensive Scopes & Production Tools (Waveform, Histogram, Peaking, Zebra, Anamorphic De-Squeeze, 360° Color Grading, Image Freeze & Semi-Transparent Overlay), Integrated Sony L-Series / NP-F Battery Plate with Camera DC Pass-Through Output, Includes Dedicated Sunhood and Camera Control Cables, Lightweight Gimbal & Rigging Form Factor (Excellent Condition)
The PORTKEYS LH5C is a high-density, ultracompact 5.4-inch daylight-viewable on-camera touchscreen monitor engineered to integrate critical exposure analysis with direct, low-latency wired camera control for solo cinematographers, gimbal operators, and commercial videographers. Delivering a sharp 1920×1152 resolution with an 800 cd/m² (nits) high-brightness panel and a 1000:1 contrast ratio, the LH5C cuts through reflective ambient daylight while maintaining a lightweight footprint tailored for compact camera cages and motorized gimbals. The panel covers 85% of the wide DCI-P3 color gamut—fully enveloping standard Rec.709—ensuring accurate broadcast- and cinema-grade color reproduction across wide 178-degree viewing angles.
Distinguishing itself as a comprehensive rig command hub, the LH5C features a dedicated wired camera control interface compatible with major cinema and mirrorless platforms, including Sony, Canon, Panasonic, Blackmagic Design, and Z CAM. Utilizing the included control cables, camera operators can adjust exposure and operational parameters—including iris/aperture, shutter speed, ISO, white balance/color temperature, frame rates, motorized zoom, and record start/stop—directly on the monitor’s capacitive touchscreen, including direct touch-to-focus area selection. The monitor inputs video up to UHD 4K at 30p over HDMI and outputs a clean 1080p60 loop-through signal to wireless transmitters or director monitors. Outfitted with custom 3D LUT importing via USB, a full suite of image evaluation tools (waveforms, histograms, false color, peaking, anamorphic de-squeeze, and image overlay), a built-in Sony L-series (NP-F) battery plate with DC camera power pass-through, and a protective snap-on sunhood, the LH5C delivers an agile, production-grade monitoring package in top-tier shape.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
800 Nits Daylight-Viewable Panel: Bright 5.4″ 1920×1152 high-density IPS display provides daylight visibility on outdoor gimbal and handheld rigs.
Deep Wired Camera Control: Directly adjusts aperture, shutter, ISO, white balance, frame rate, motorized zoom, and record start/stop on select Sony, Canon, Panasonic, BMPCC, and Z CAM bodies.
Touch-to-Focus Capability: Allows operators to reposition and select camera autofocus tracking areas by tapping directly on the monitor screen with supported cameras.
Wide DCI-P3 Color Reproduction: Covers 85% of the DCI-P3 gamut and fully encompasses Rec.709 for faithful, cinema-accurate color rendering on set.
UHD 4K HDMI In & 1080p60 Loop-Out: Accepts UHD 4K video signals up to 30p and outputs an uncompressed 1080p60 HDMI feed to client monitors or wireless transmitters.
Custom 3D LUT Support via USB: Imports and applies custom .cube 3D LUT files for real-time Log-to-Rec.709 grading previews and creative stylized looks.
Advanced Scopes & Analysis Tools: Features RGB/Luma Waveform, Luma Histogram, Zebra, False Color, Customizable Peaking, and 360° Color Grading analysis.
Image Freeze & Semi-Transparent Overlay: Enables freeze-frame comparison and translucent image ghosting overlays to match continuous angles and shot composition.
Real-Time Anamorphic De-Squeeze: De-squeezes widescreen anamorphic footage across standard squeeze factors for accurate framing without distortion.
Dual Power Architecture with DC Out: Powered by standard Sony L-Series (NP-F) batteries or DC input, with a DC pass-through barrel output to power mirrorless cameras via optional dummy batteries.
