SmallRig Wooden Side Handle with 1/4″-20 Screws

SmallRig Wooden Side Handle with 1/4″-20 Screws
Ergonomic Handcrafted Rosewood Camera Rig Grip – Dual 1/4″-20 Thumbscrew Mounting (0.7″ Spacing), Ambidextrous Left/Right Setup, 1.4″ Vertical Slide Adjustment, 1/4″-20 & 3/8″-16 Threads, Cold Shoe Mount & Built-In Allen Wrench

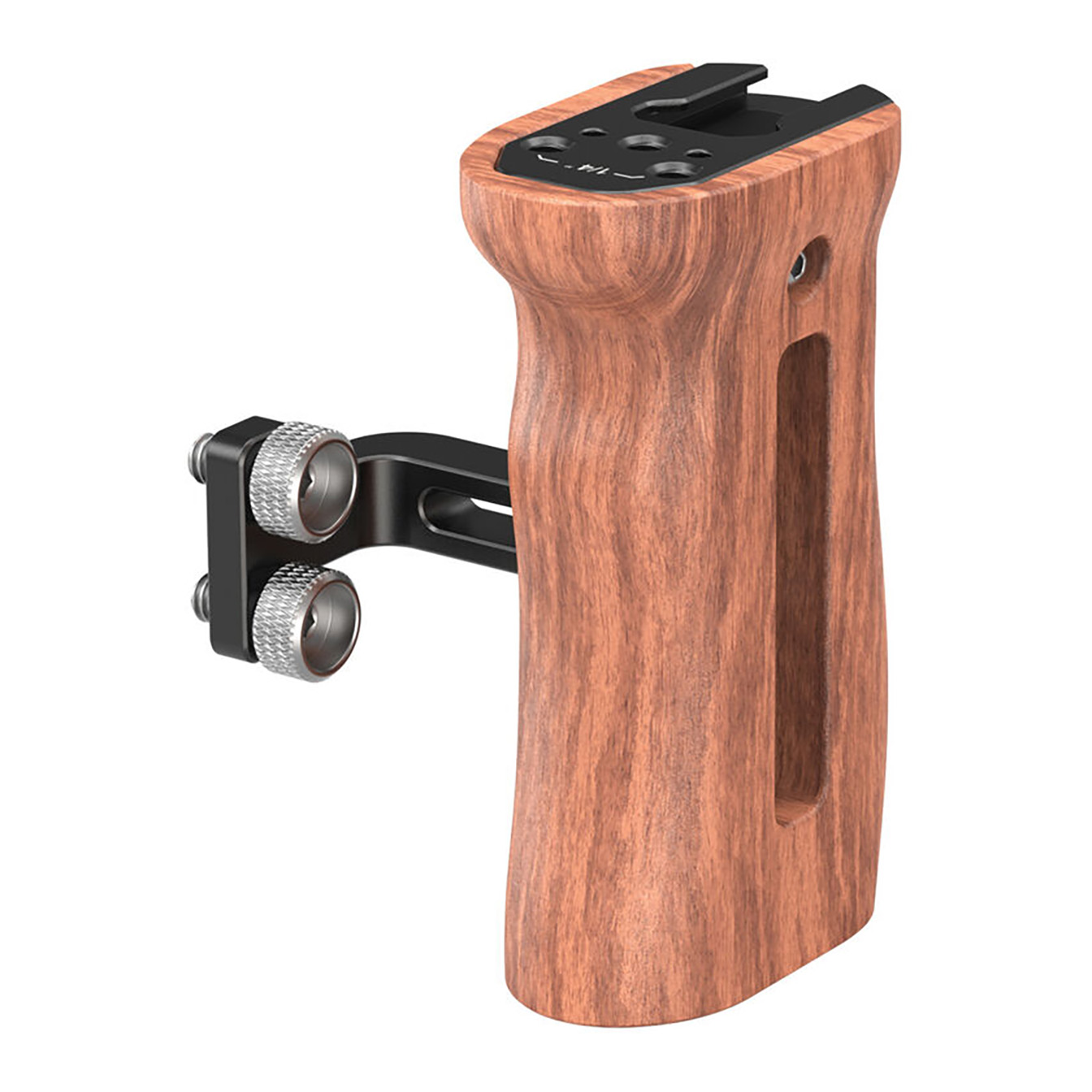

The SmallRig Wooden Side Handle with 1/4″-20 Screws is an ergonomic, premium handheld stabilization grip designed to enhance comfort, control, and balance across mirrorless, DSLR, and compact cinema camera cages. Crafted with a contoured, smooth rosewood grip and a sturdy CNC-machined aluminum alloy mounting bracket, this handle provides a warm, natural hold that minimizes hand fatigue during extended handheld shooting sessions.

The handle attaches securely to the side of compatible camera cages using two 1/4″-20 thumbscrews spaced 0.7 inches apart to prevent unwanted twisting. Featuring an ambidextrous reversible design, it can be easily configured for either left- or right-handed operation. The integrated slide mechanism provides a 1.4-inch vertical height adjustment range to align with your camera’s center of gravity and ensure optimal handling balance. A built-in Allen wrench is integrated directly into the handle for quick, tool-free field adjustments. For rigging flexibility, the aluminum top section incorporates 1/4″-20 and 3/8″-16 threaded mounting sockets along with a dedicated cold shoe mount for attaching articulating magic arms, compact LED video lights, wireless microphone receivers, or monitors.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

Handcrafted Wooden Grip: Ergonomically shaped natural rosewood delivers a comfortable, organic, and fatigue-free grip for handheld operation.

Dual 1/4″-20 Thumbscrew Mounting: Secures firmly to cages via dual 1/4″-20 screws spaced 0.7 inches apart to resist rotation under load.

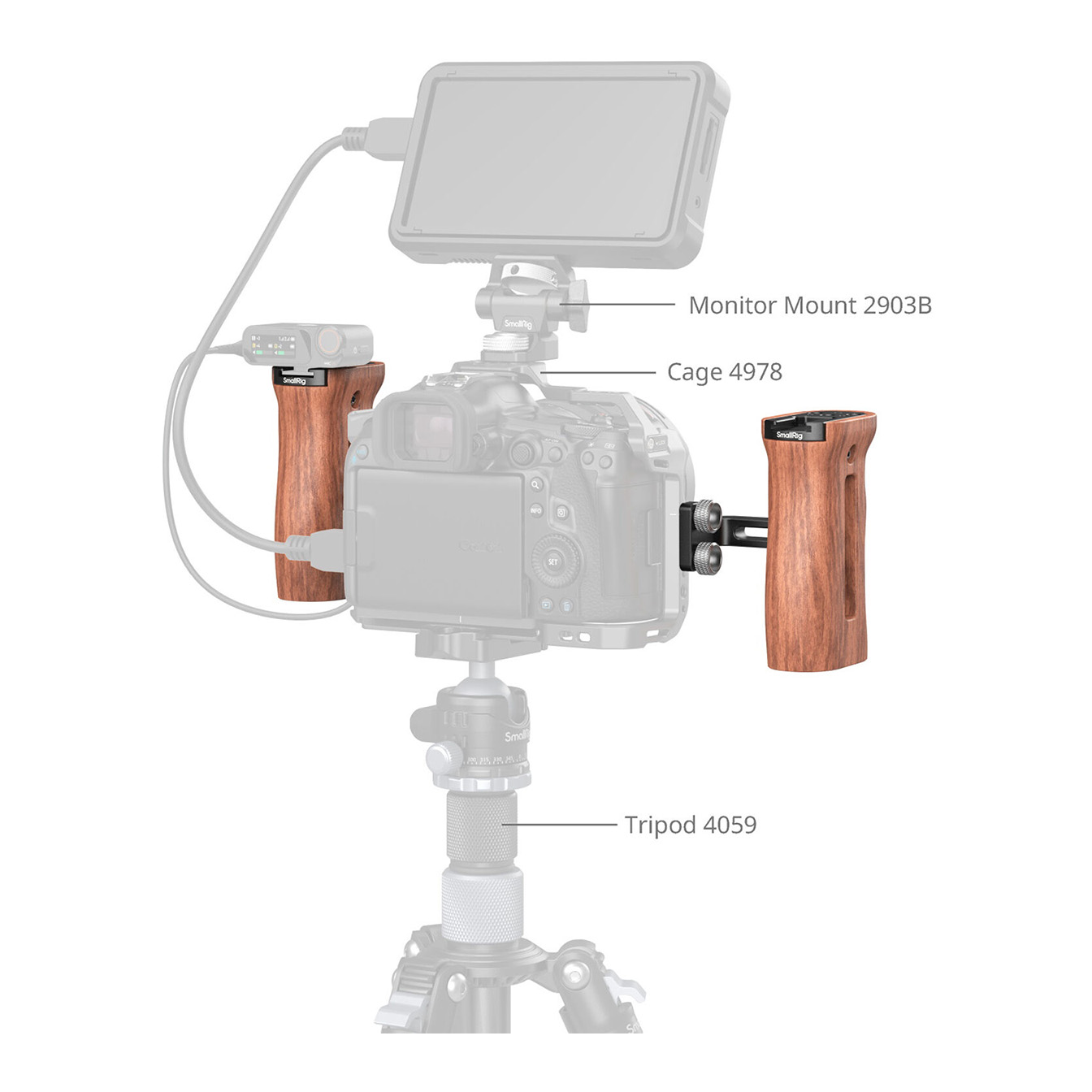

Ambidextrous Left/Right Configuration: Reversible aluminum bracket allows quick setup for either left-handed or right-handed use.

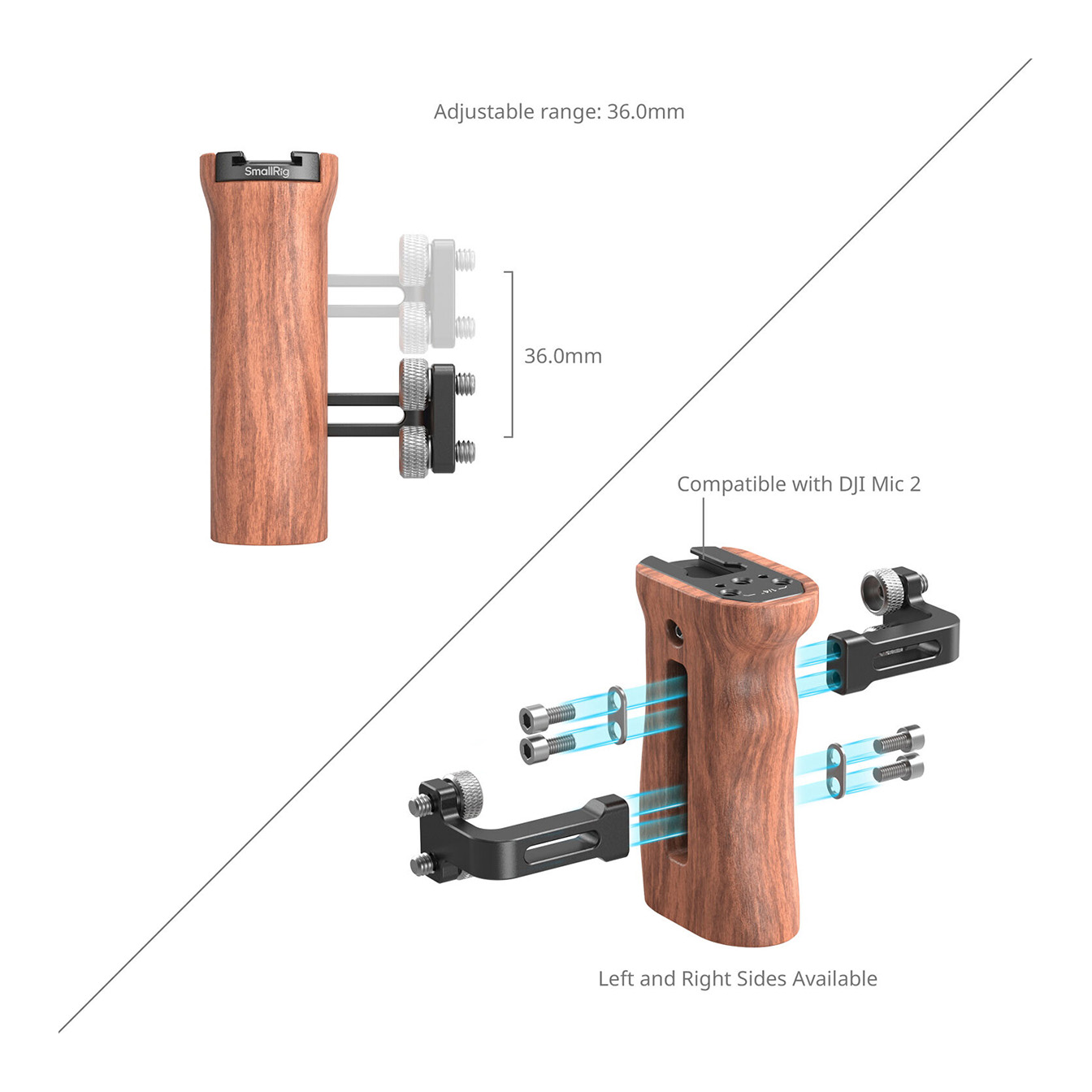

1.4-Inch Vertical Slide Adjustment: Sliding mechanism allows up to 1.4 inches of vertical travel to fine-tune rig balance and center of gravity.

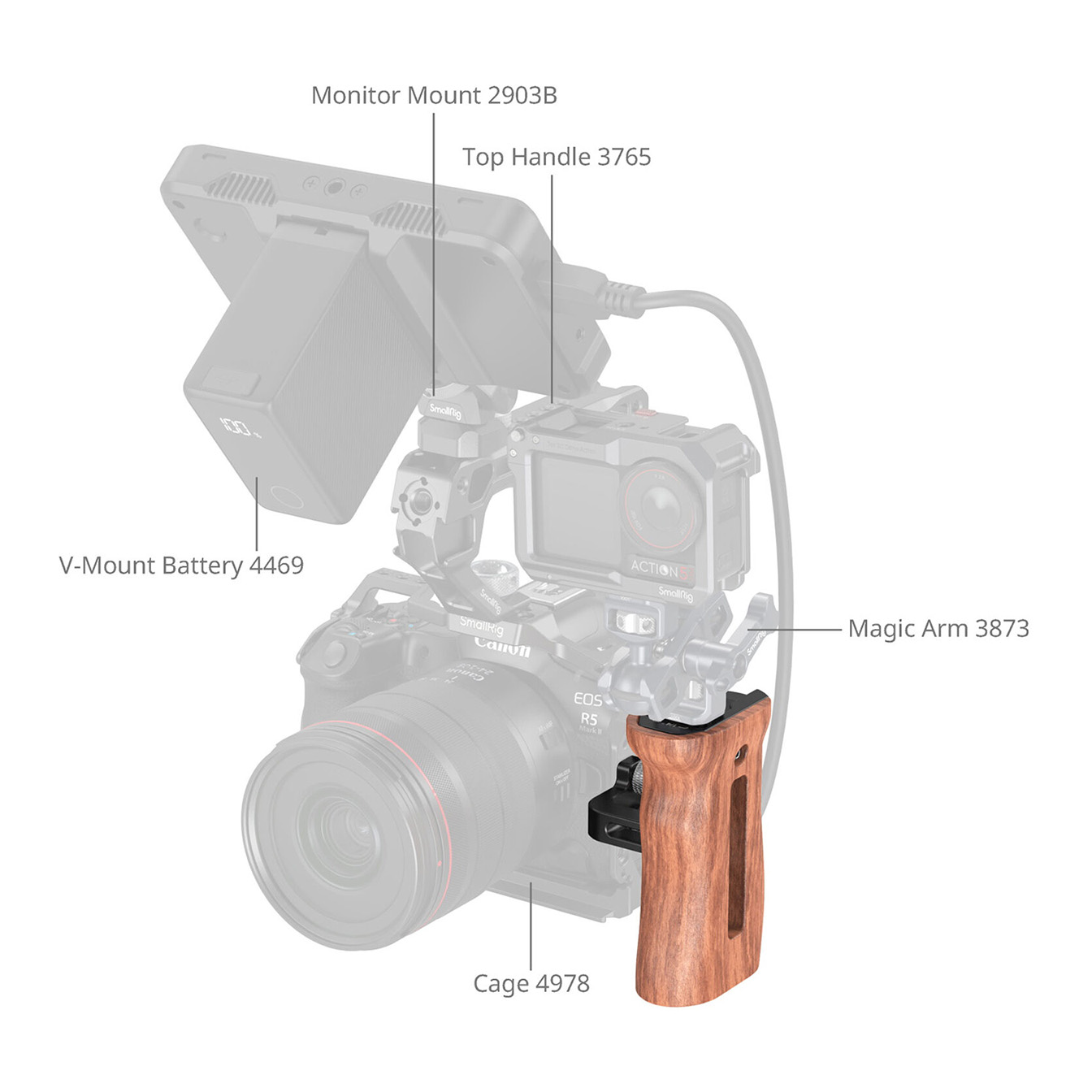

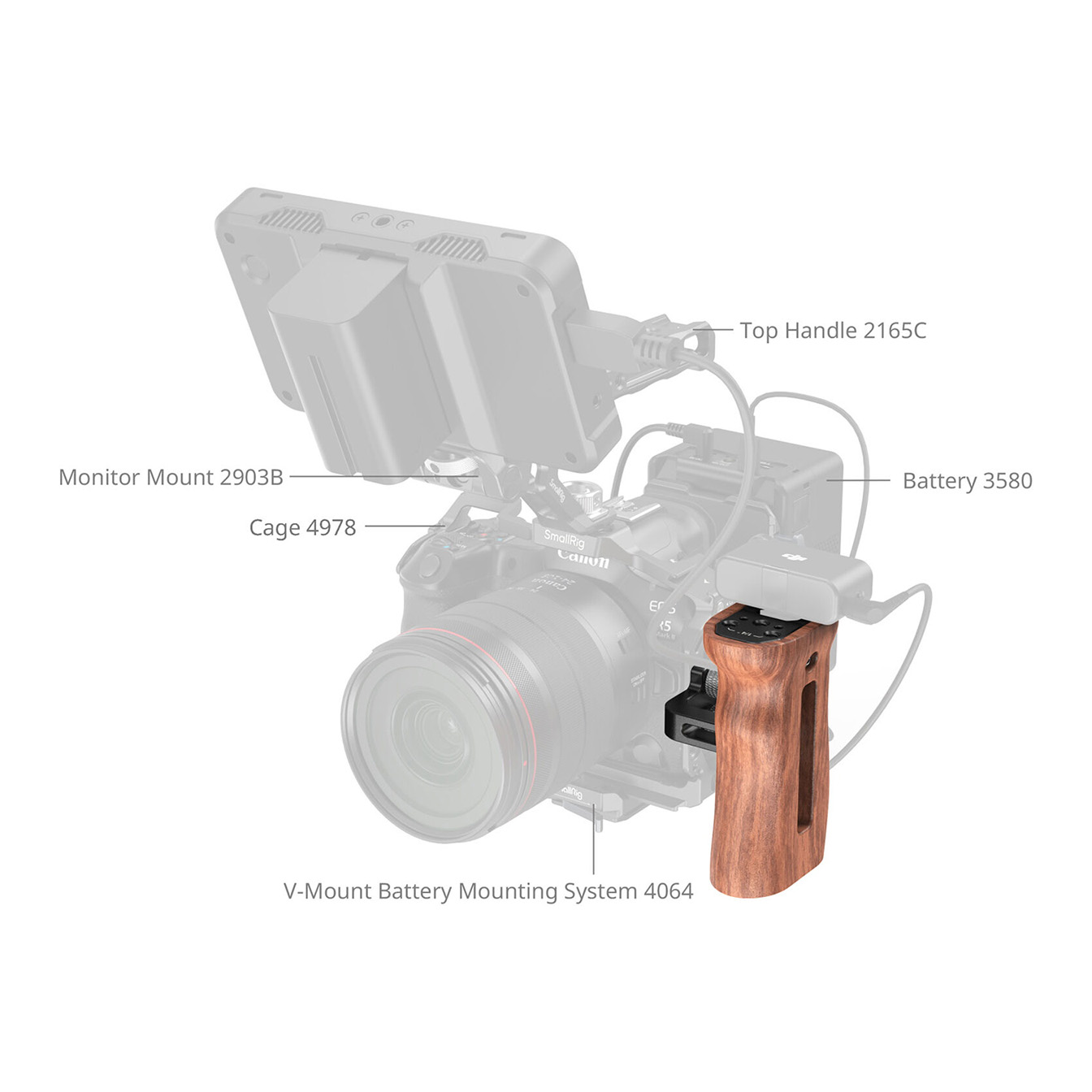

Versatile Accessory Expansion: Outfitted with 1/4″-20 and 3/8″-16 threaded sockets plus a top cold shoe mount for attaching lights, microphones, or monitor arms.

Integrated Allen Wrench: Features a built-in magnetic Allen wrench stored inside the handle body for fast on-the-fly adjustments.

TECHNICAL SPECIFICATIONS

Product Type: Camera Cage Wooden Side Handgrip

Mounting System: Dual 1/4″-20 Thumbscrews (0.7″ / 18 mm Center-to-Center Spacing)

Orientation: Ambidextrous (Configurable for Left or Right Cage Mounting)

Vertical Adjustment Range: Approx. 1.4 inches / 35.6 mm

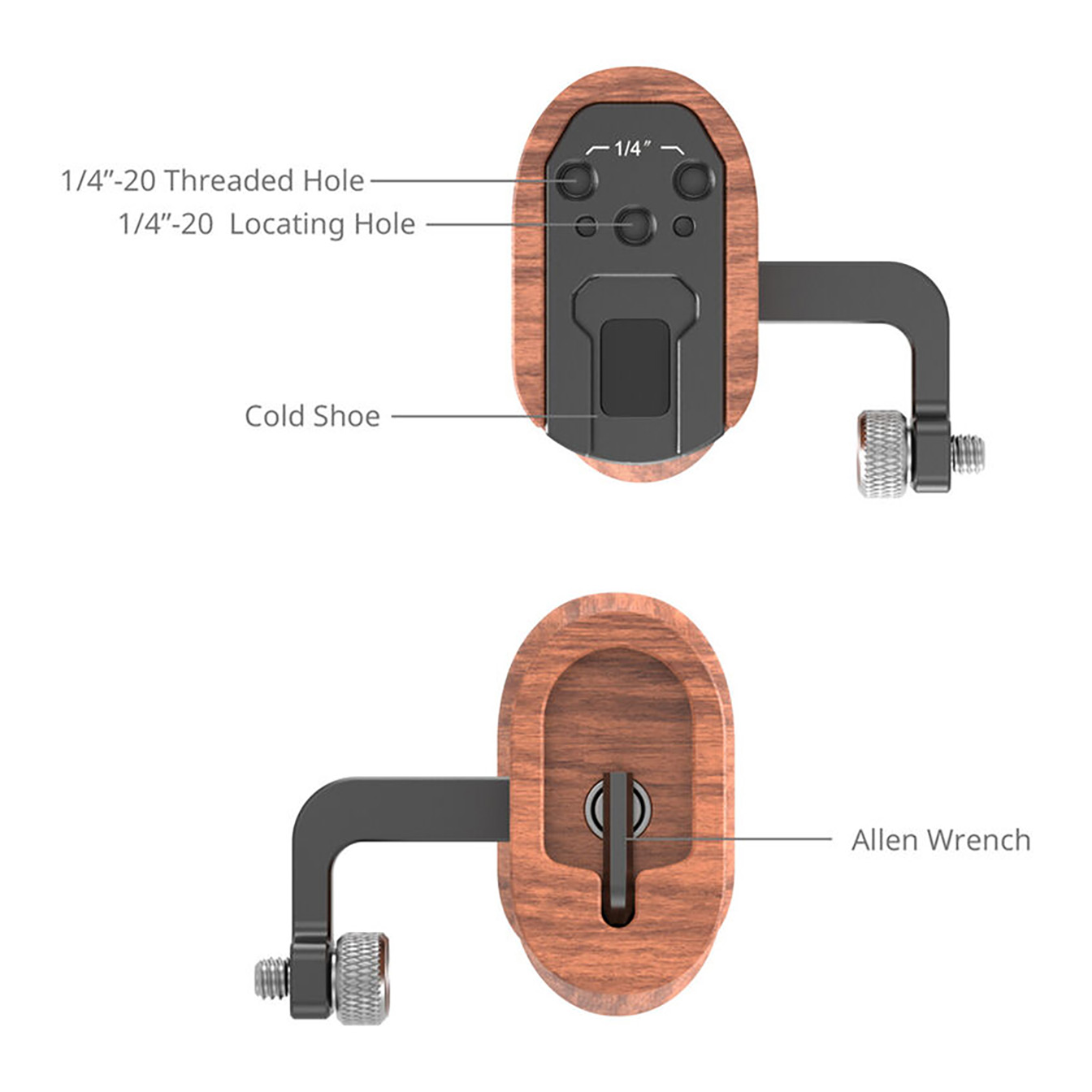

Accessory Mounting Points: Multiple 1/4″-20 Female Threads, 3/8″-16 Female Thread, Top Cold Shoe Mount

Construction Materials: Handcrafted Natural Rosewood, CNC-Machined Anodized Aluminum Alloy & Stainless Steel

Tool Storage: Integrated Magnetic Allen Wrench in Handle Base

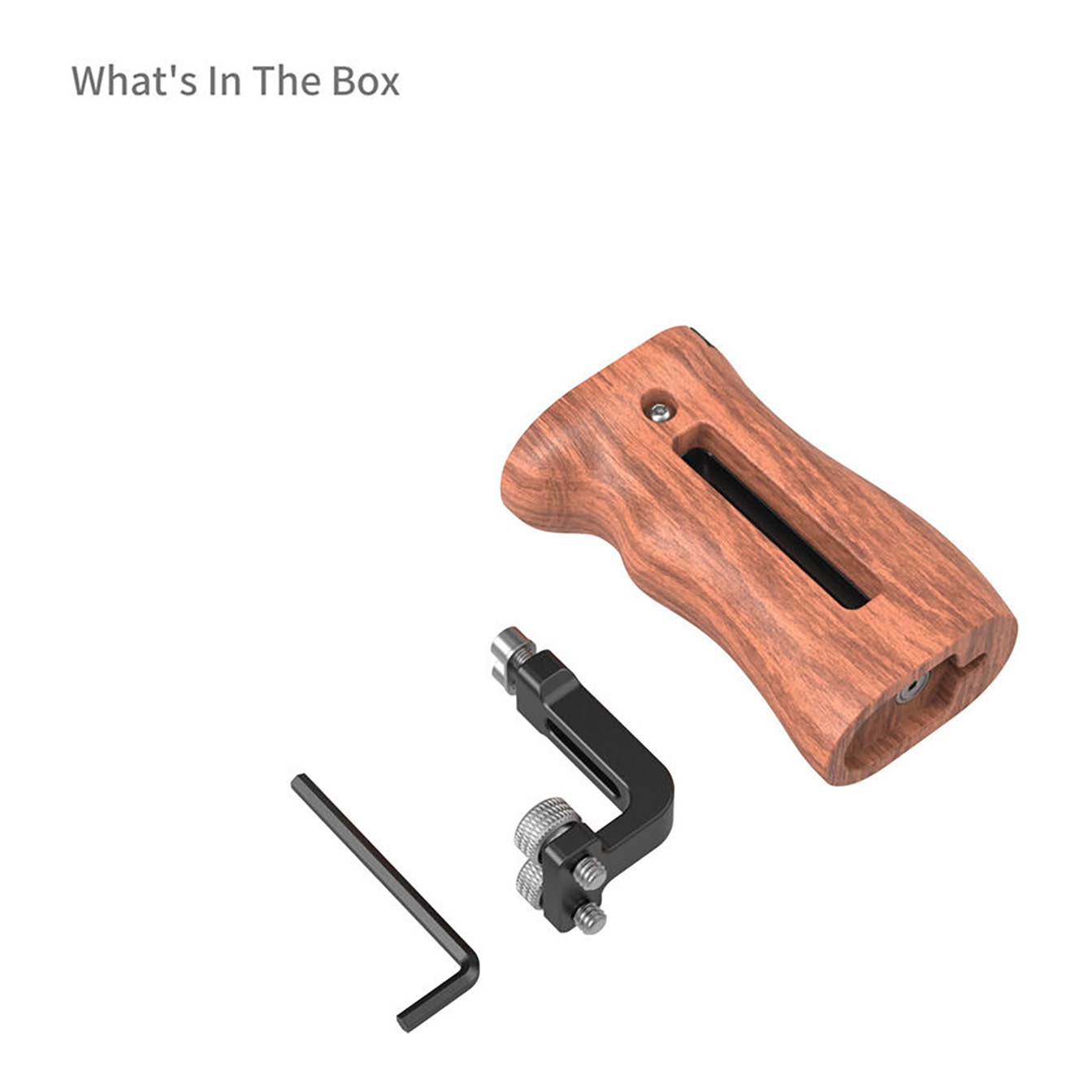

Included Accessories: Wooden Side Handle with Dual 1/4″-20 Screws, Built-In Allen Wrench

Function: Handheld Rig Stabilization, Ergonomic Handling & Multi-Accessory Expansion
