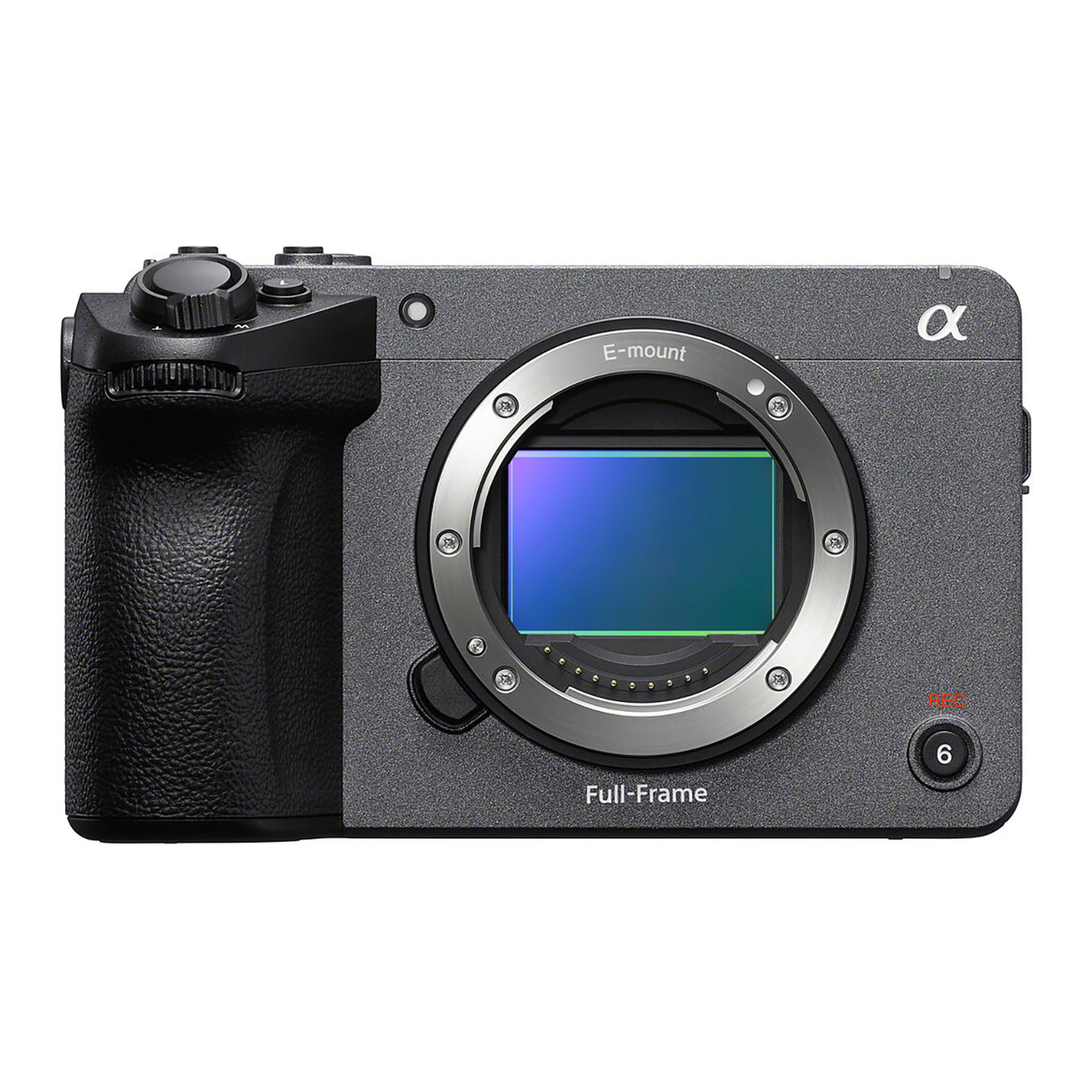

Sony Cinema Line FX5 Camera Body
Compact Cinema Revolution 16.6MP 5K Stacked Exmor RS Sensor, BIONZ XR2 Processing, 5K Open Gate, Internal X-OCN & Three Base ISO
The Sony FX5 is a groundbreaking full-frame cinema camera engineered to bridge the gap between portable handheld mobility and top-tier CineAlta production workflows. Fitting neatly between the compact FX3 and the production-ready FX6, the FX5 introduces a next-generation 16.6MP 5K fully stacked Exmor RS CMOS sensor paired with the powerful BIONZ XR2 engine and a dedicated AI processing unit. This high-speed architecture delivers ultra-fast readout times, minimal rolling shutter, and intelligent AI-driven subject recognition autofocus. Engineered for documentary filmmakers, commercial cinematographers, and indie directors, the FX5 packs uncompromised cinema technology—including 16+ stops of dynamic range and 5K Open Gate (3:2) capture—into an extraordinarily agile, ergonomic chassis.
A true first for Sony’s compact cinema lineup, the FX5 brings internal 16-bit linear X-OCN raw-compressed recording (LT, C1, and C2 variants) directly to in-camera CFexpress Type A/SD media, eliminating the need for bulky external recorders. Production flexibility is further enhanced by an advanced Dual Gain system with Three Base ISOs (ISO 800 / 4000 / 12800), ensuring ultra-clean shadow rendering in low-light environments. Outfitted with a 3.5″ 4-axis multi-angle touchscreen displaying Sony’s intuitive “BIG 6” cinema interface, internal exposure monitoring tools (waveform, false color, vectorscope), in-body image stabilization with Active Roll correction, and dual USB-C ports with Timecode support, the FX5 sets a new benchmark for creator-ready cinema systems.
Key Features & Cinema Architecture
16.6MP 5K Full-Frame Stacked Sensor: Features a newly developed fully stacked Exmor RS CMOS sensor that dramatically boosts data processing speed while suppressing rolling shutter distortion.
Internal 5K Open Gate & X-OCN Raw: Records internal 5K Open Gate (3:2) footage at up to 60 fps in lightweight, high-fidelity 16-bit X-OCN formats (LT, C1, and C2), optimizing reframing and post-production VFX flexibility.

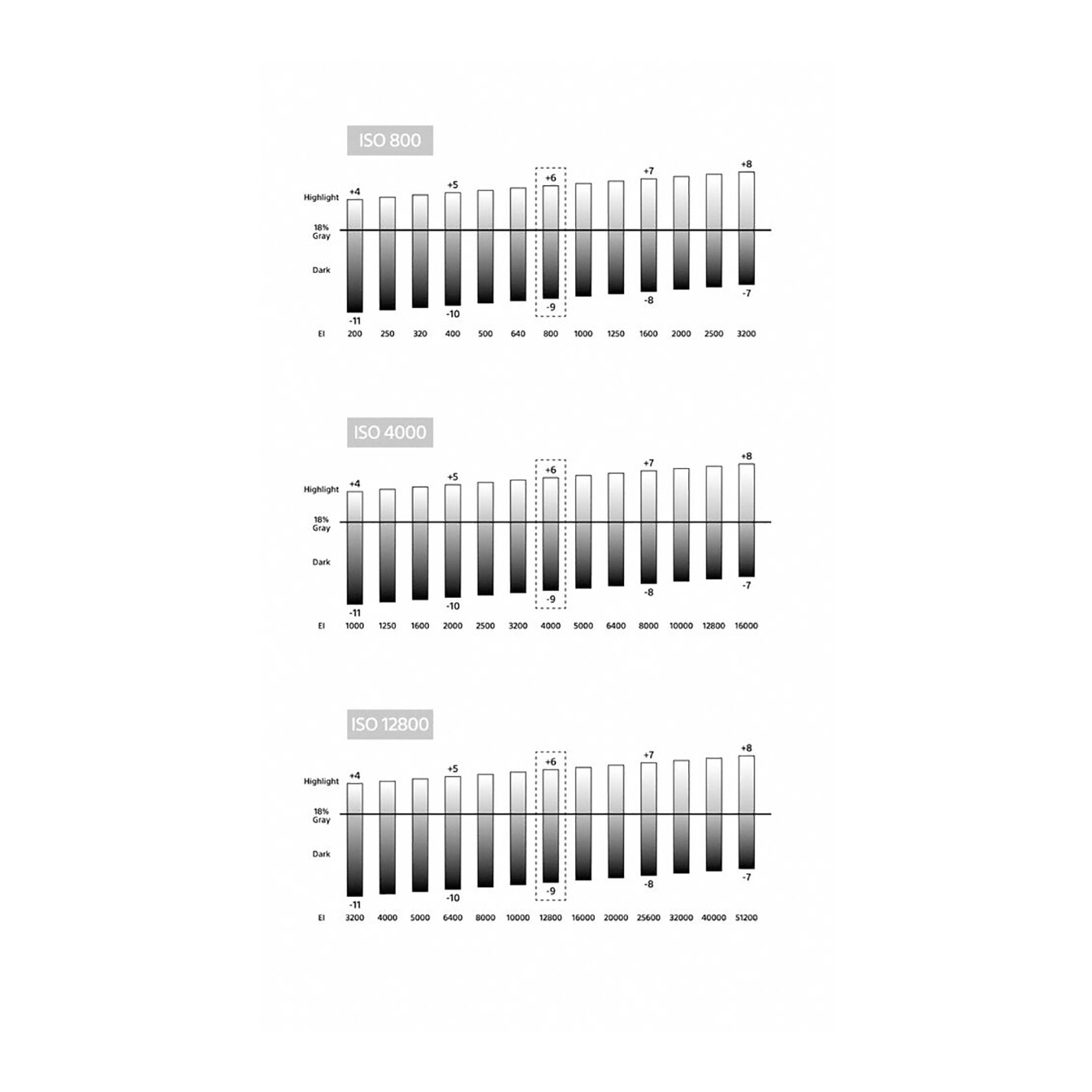

Three Base ISO & 16+ Stops Dynamic Range: Dual-gain sensor architecture incorporates native ISO 800, 4000, and 12800 settings, delivering pristine highlight roll-off and over 16 stops of total dynamic range.
BIONZ XR2 Engine with Integrated AI Unit: Powers real-time AI subject-tracking autofocus (identifying humans, animals, and birds) alongside AI-assisted auto white balance and low-light focus lock down to challenging light levels.

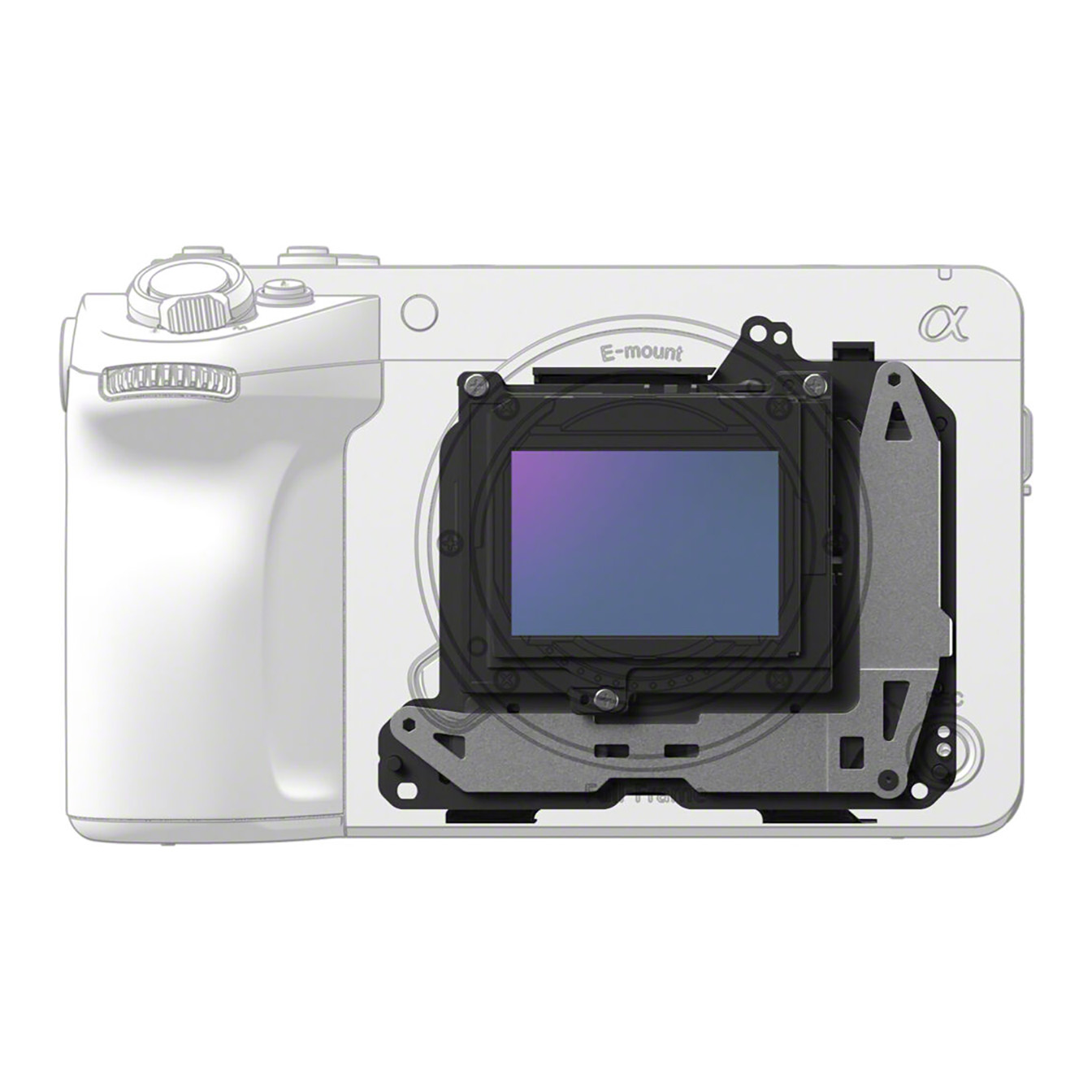

In-Body Stabilization with Active Roll Correction: Features upgraded sensor-shift image stabilization with dynamic electronic Active Mode to provide rock-solid handheld footage without relying on external gimbals.
Pro Monitoring Suite & Anamorphic De-Squeeze: Built-in professional exposure and focus monitoring tools—including Waveform, Vectorscope, False Color, Focus Map, and customizable in-camera Anamorphic De-Squeeze.

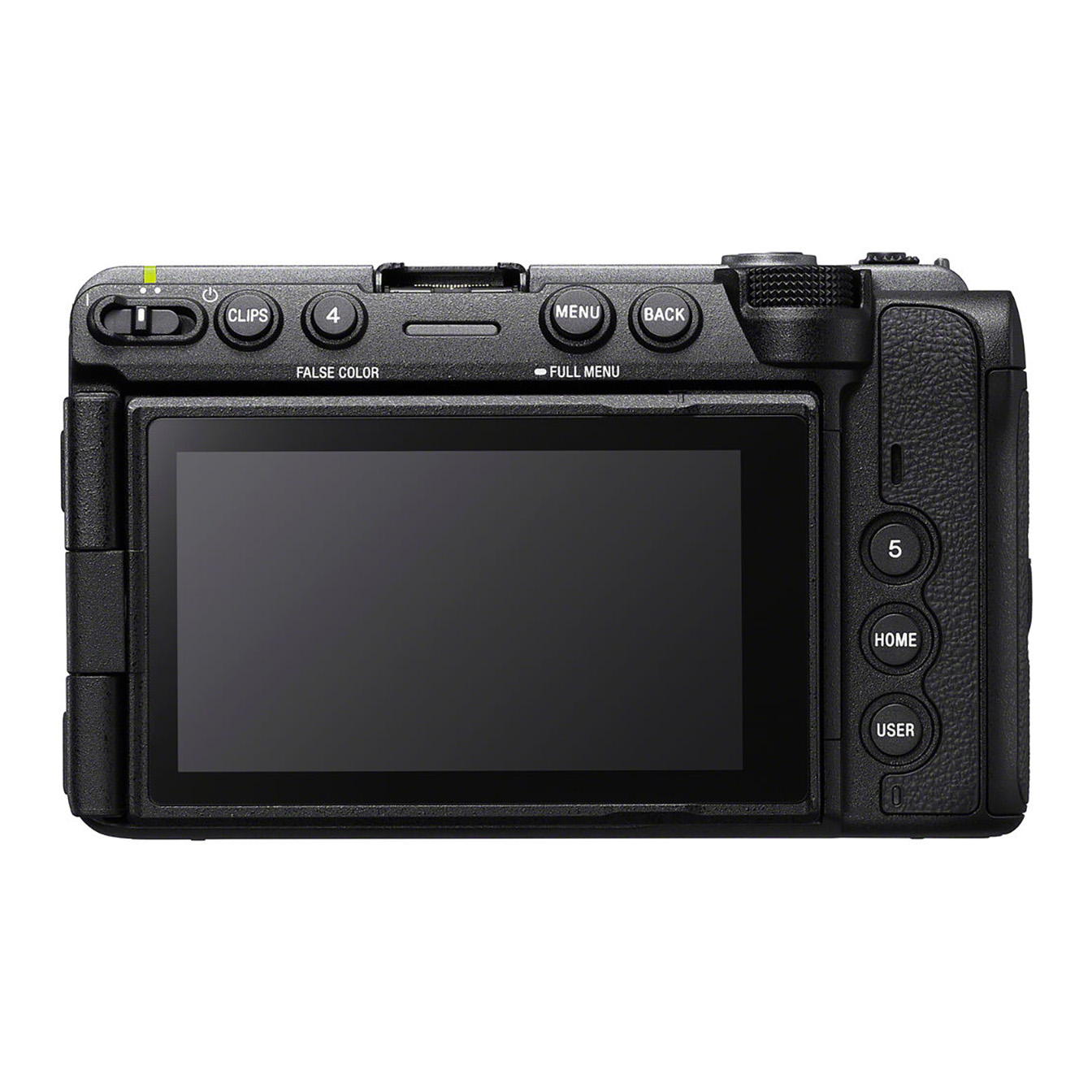

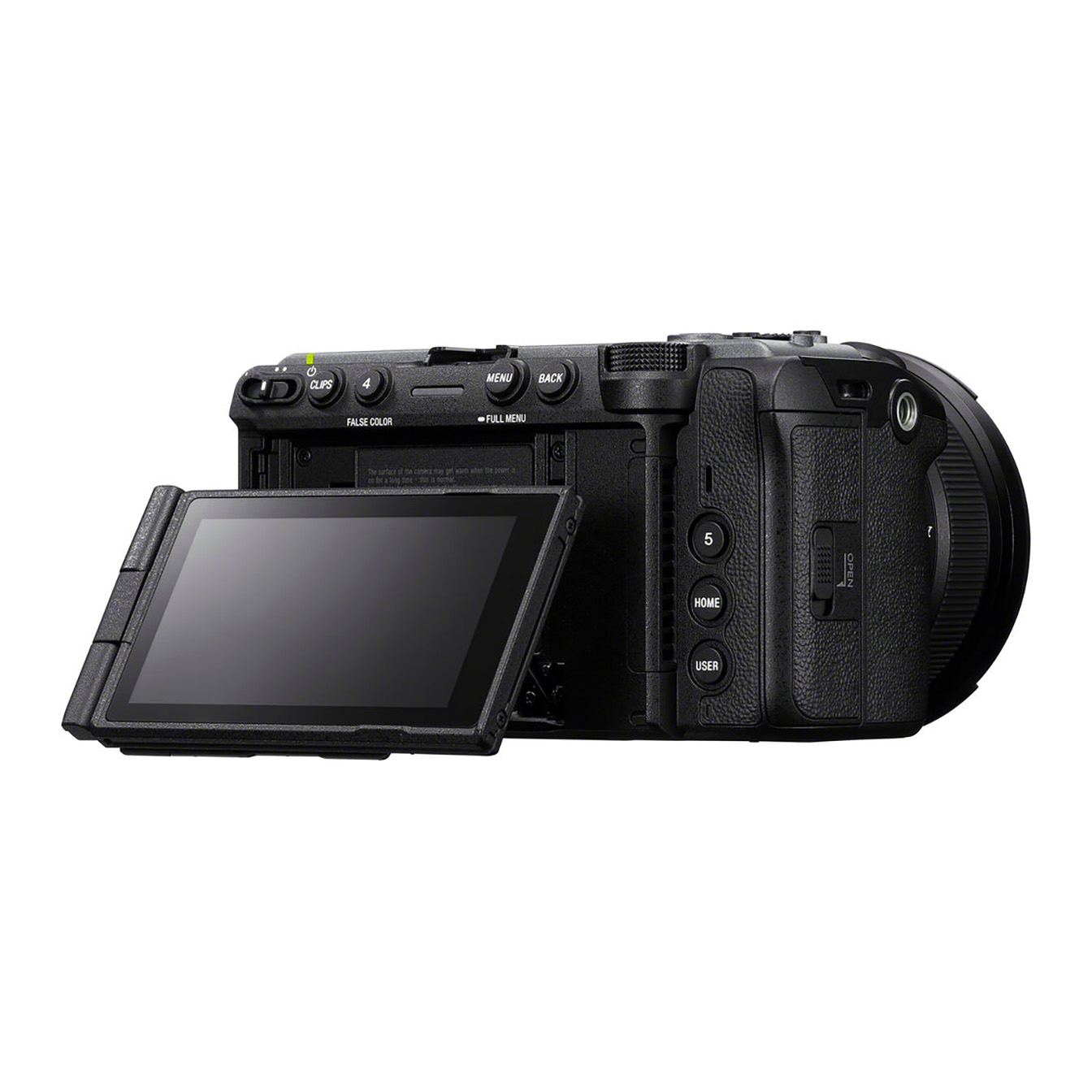

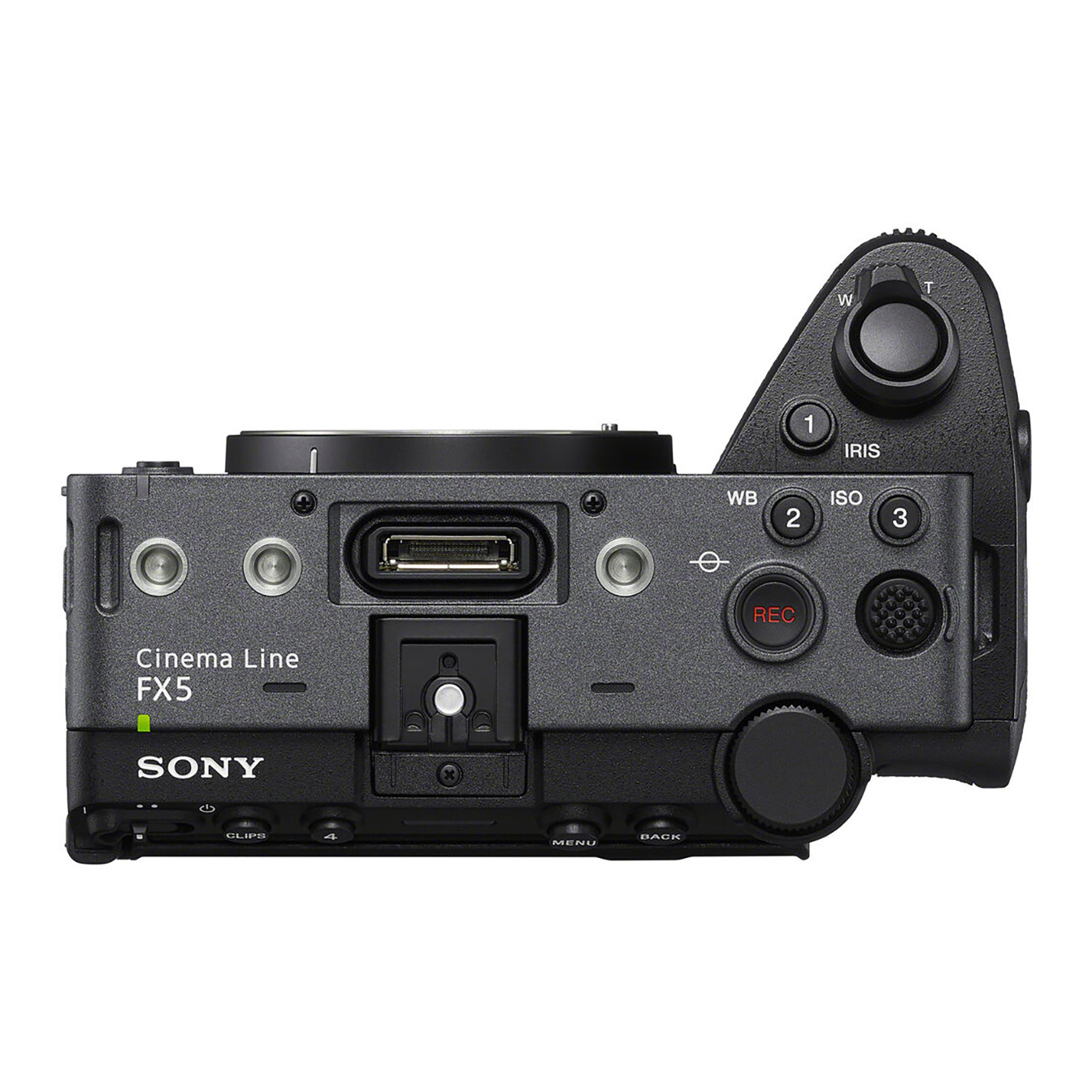

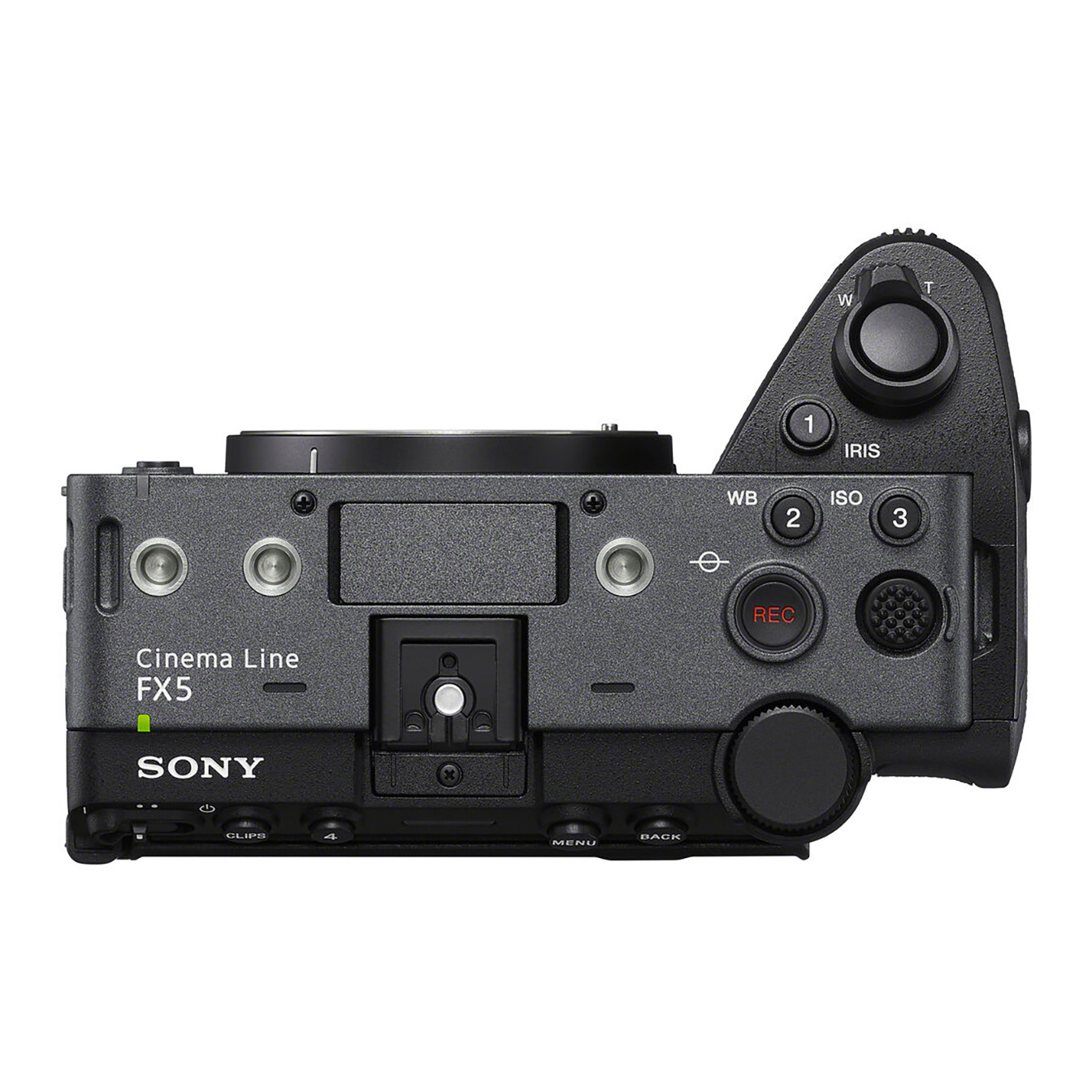

Streamlined Control & “BIG 6” UI: Designed with six customizable physical function buttons, a new multifunction control dial, and the Cinema Line BIG 6 user interface for rapid navigation on set.
Professional Connectivity & Accessory Ecosystem

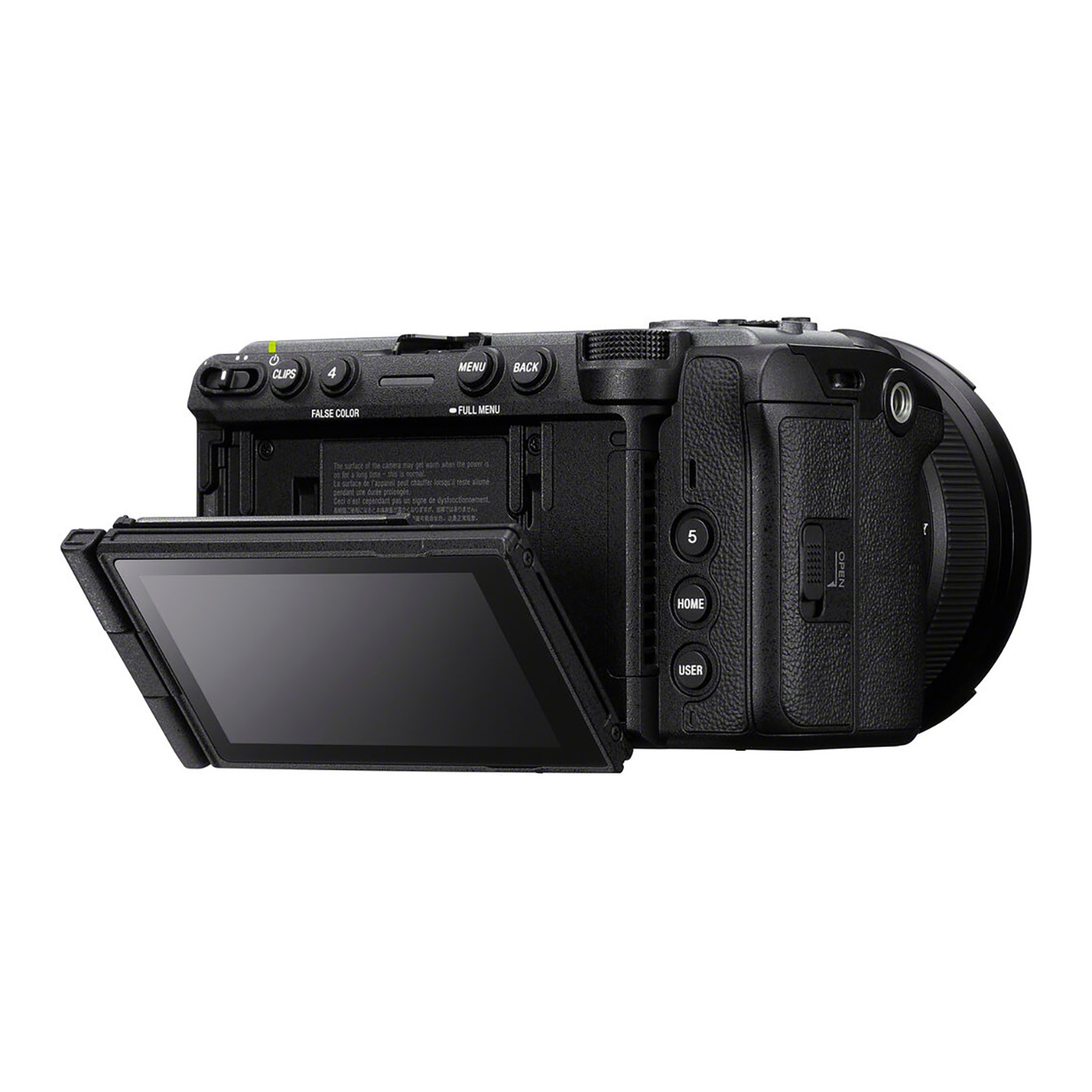

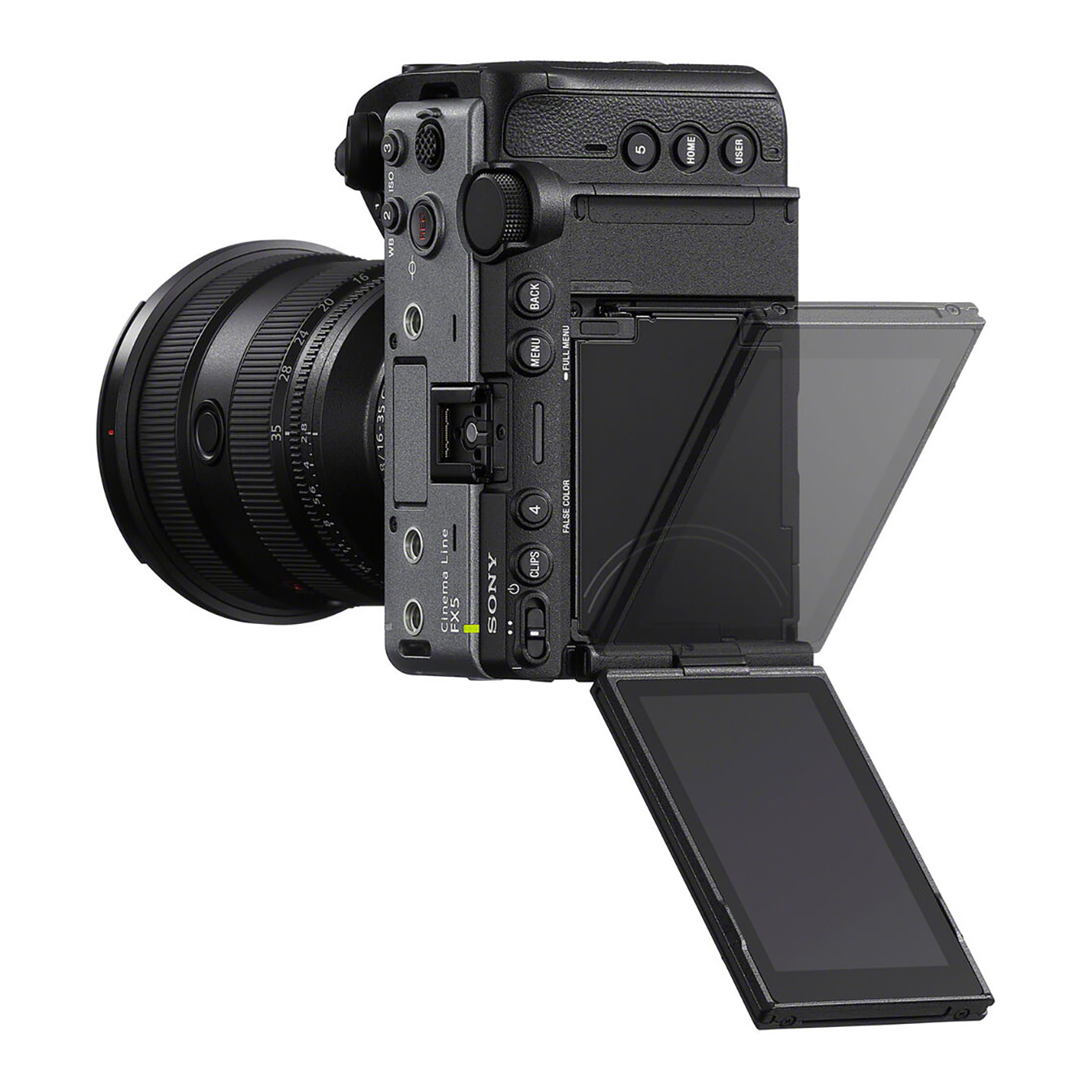

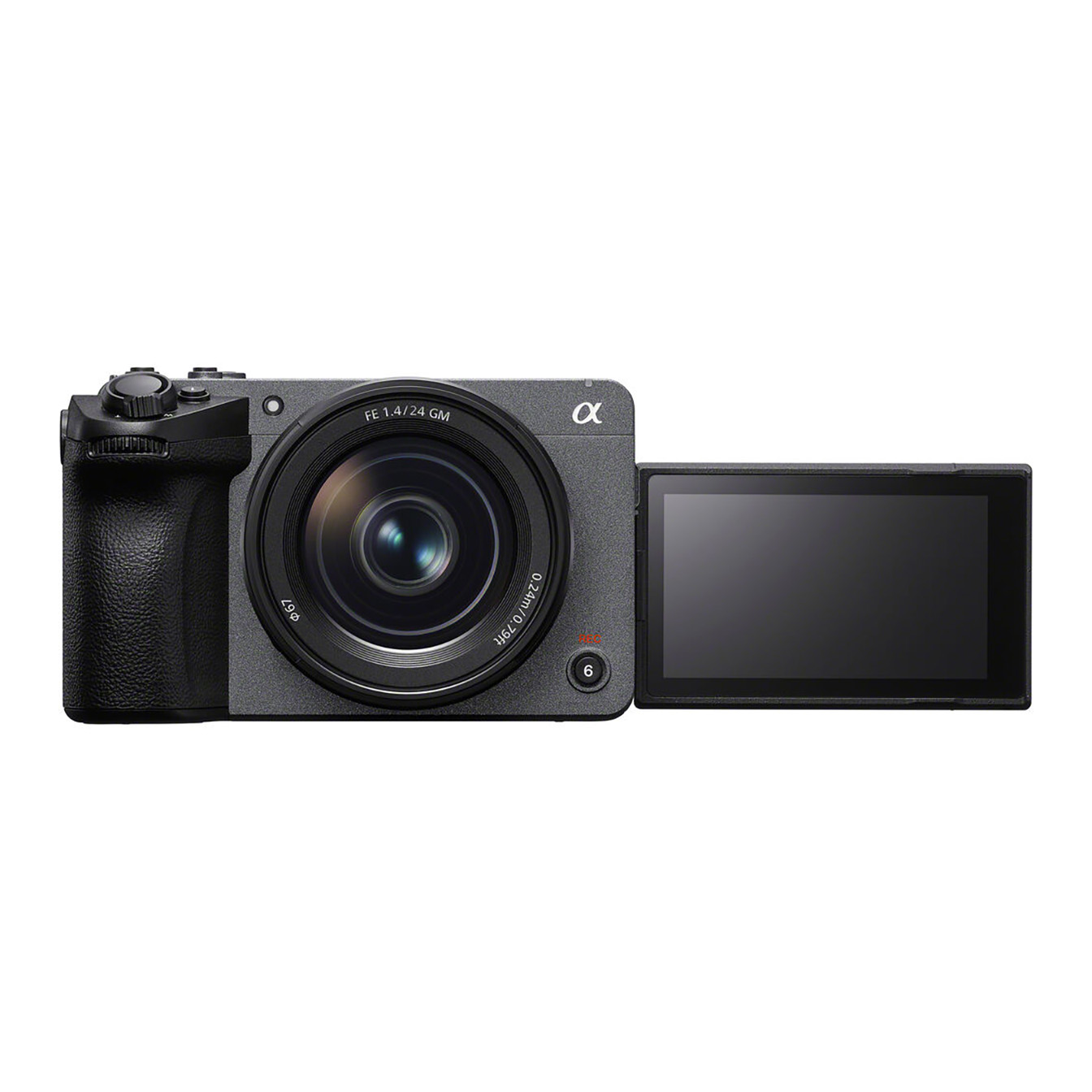

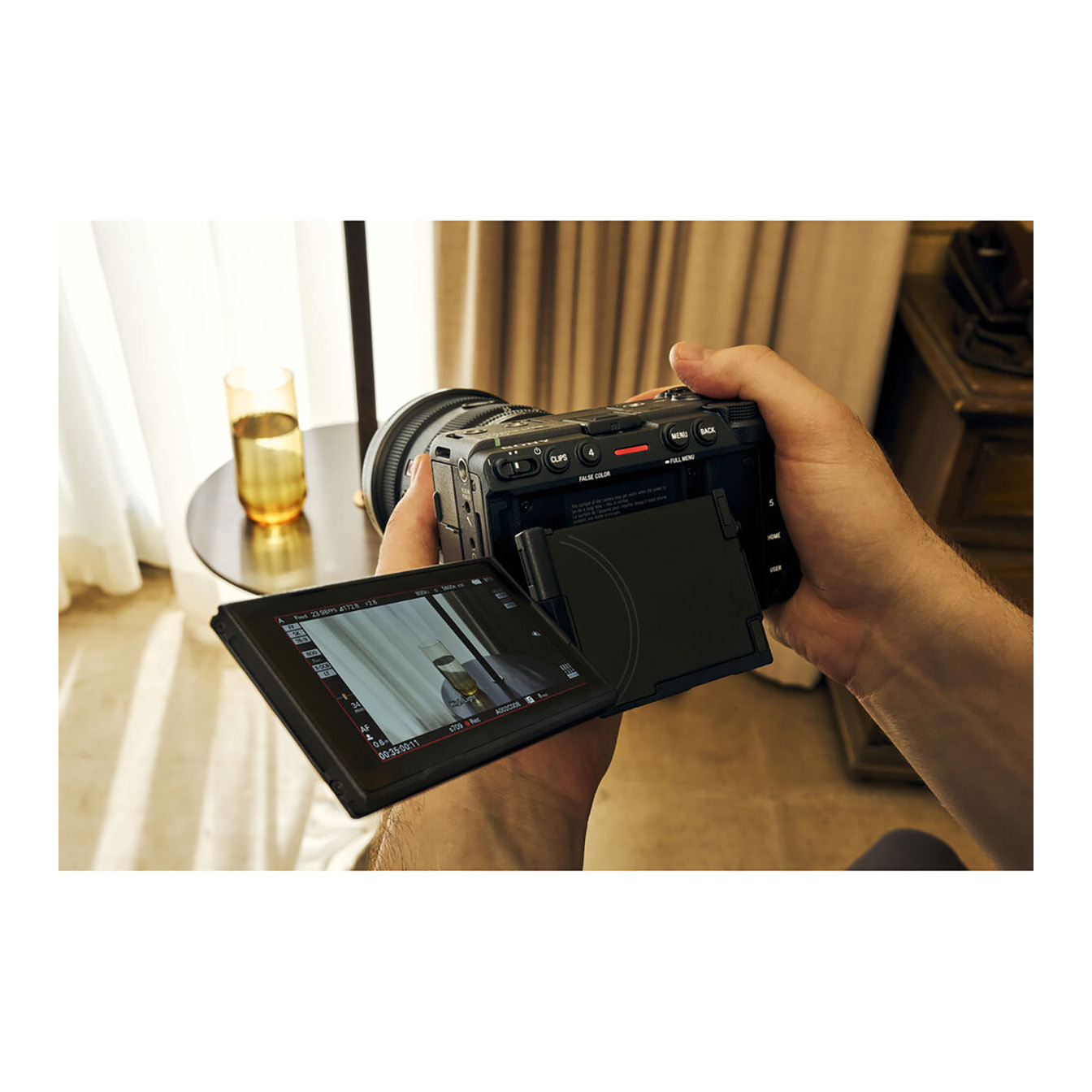

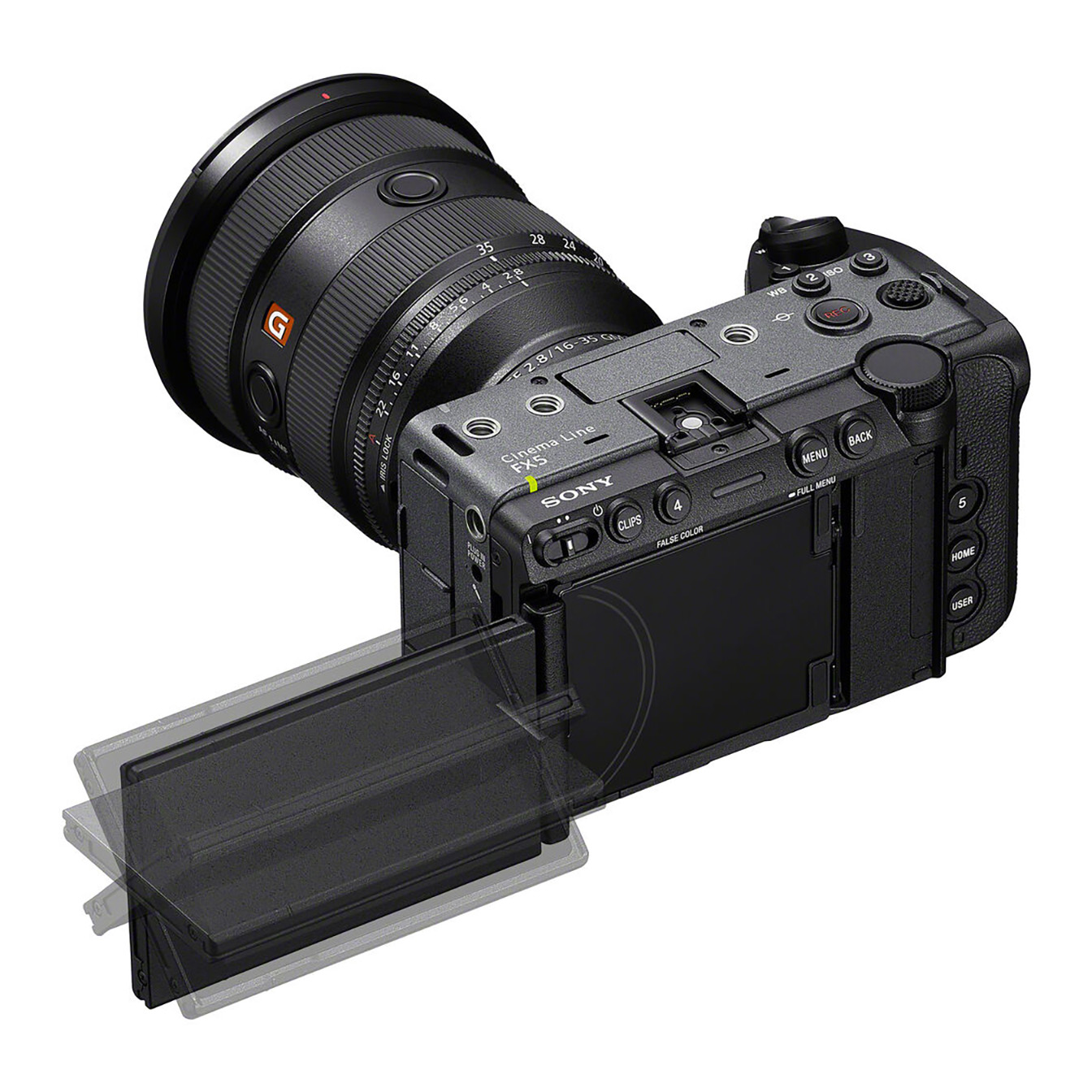

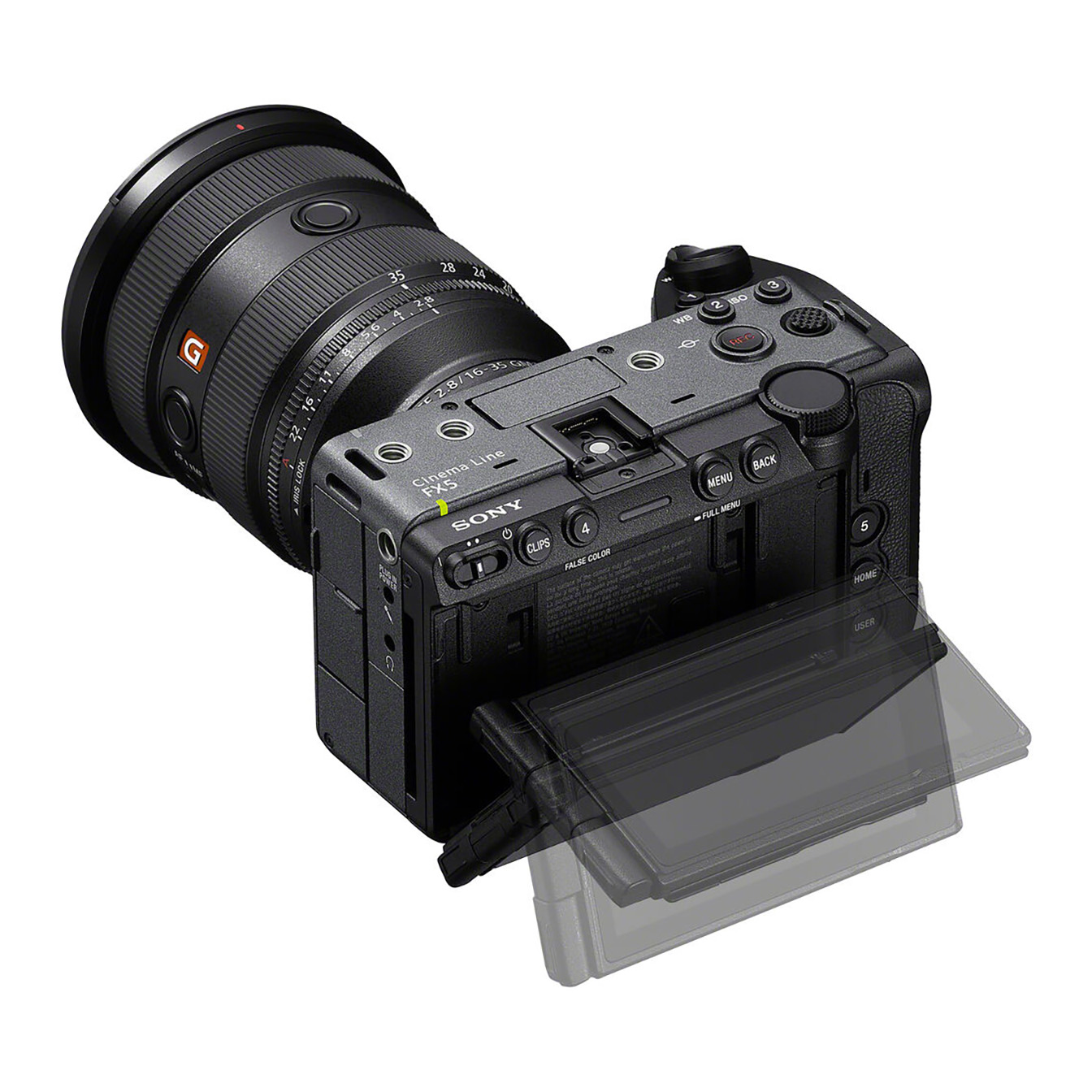

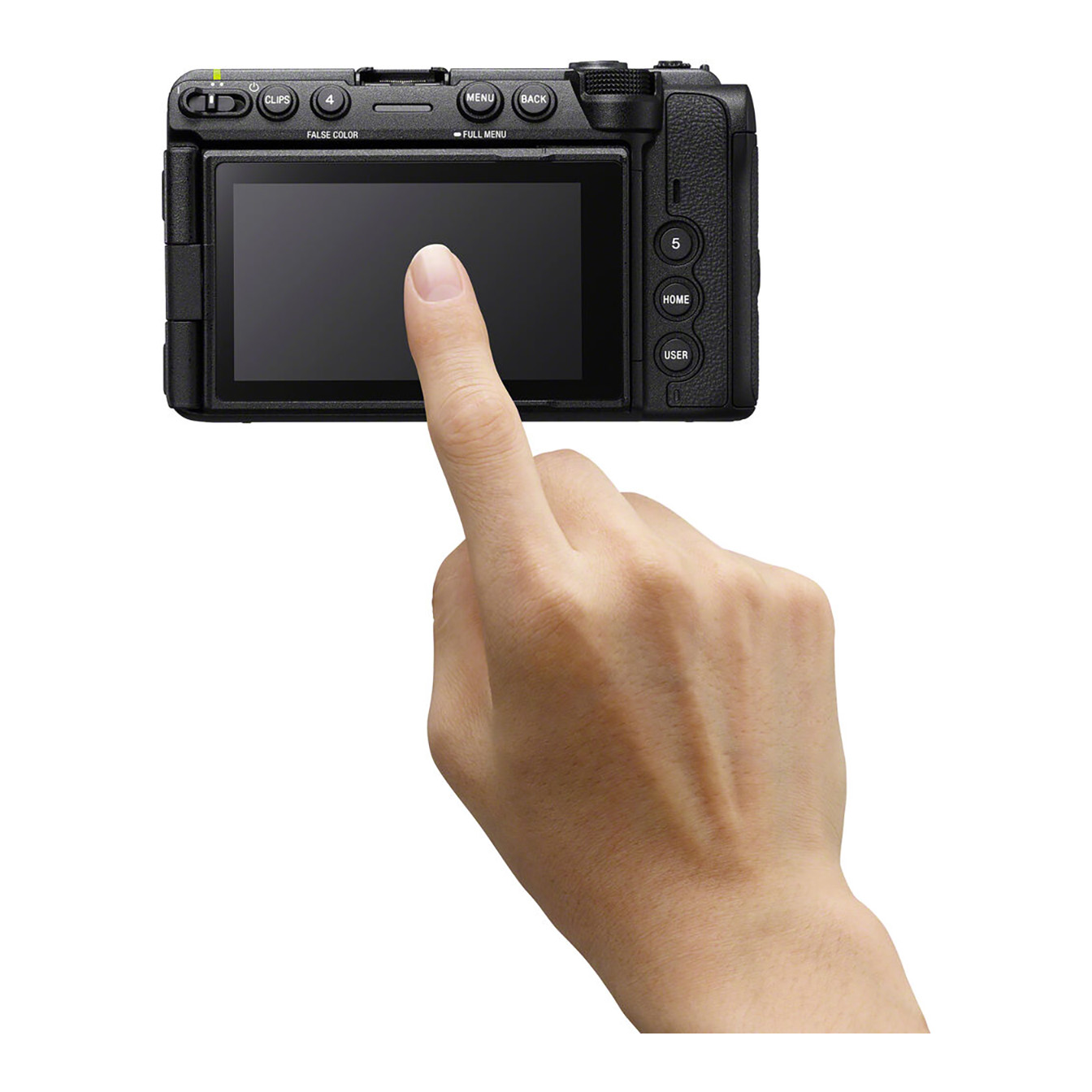

3.5″ 4-Axis Multi-Angle Touchscreen: A large 16:9 widescreen display articulating across four axes to facilitate effortless framing from high, low, or awkward production angles.
32-Bit Float Audio Support: Compatible with the optional XLR-H2 Handle Unit, unlocking 32-bit float audio capture in an FX-series camera alongside dual XLR inputs and physical audio gain dials.
Optional DVF-EL1 Electronic Viewfinder: Supports a dedicated high-brightness, 90° tilting OLED electronic viewfinder (sold separately) that connects via a specialized top terminal for precise eye-level framing in direct sunlight.

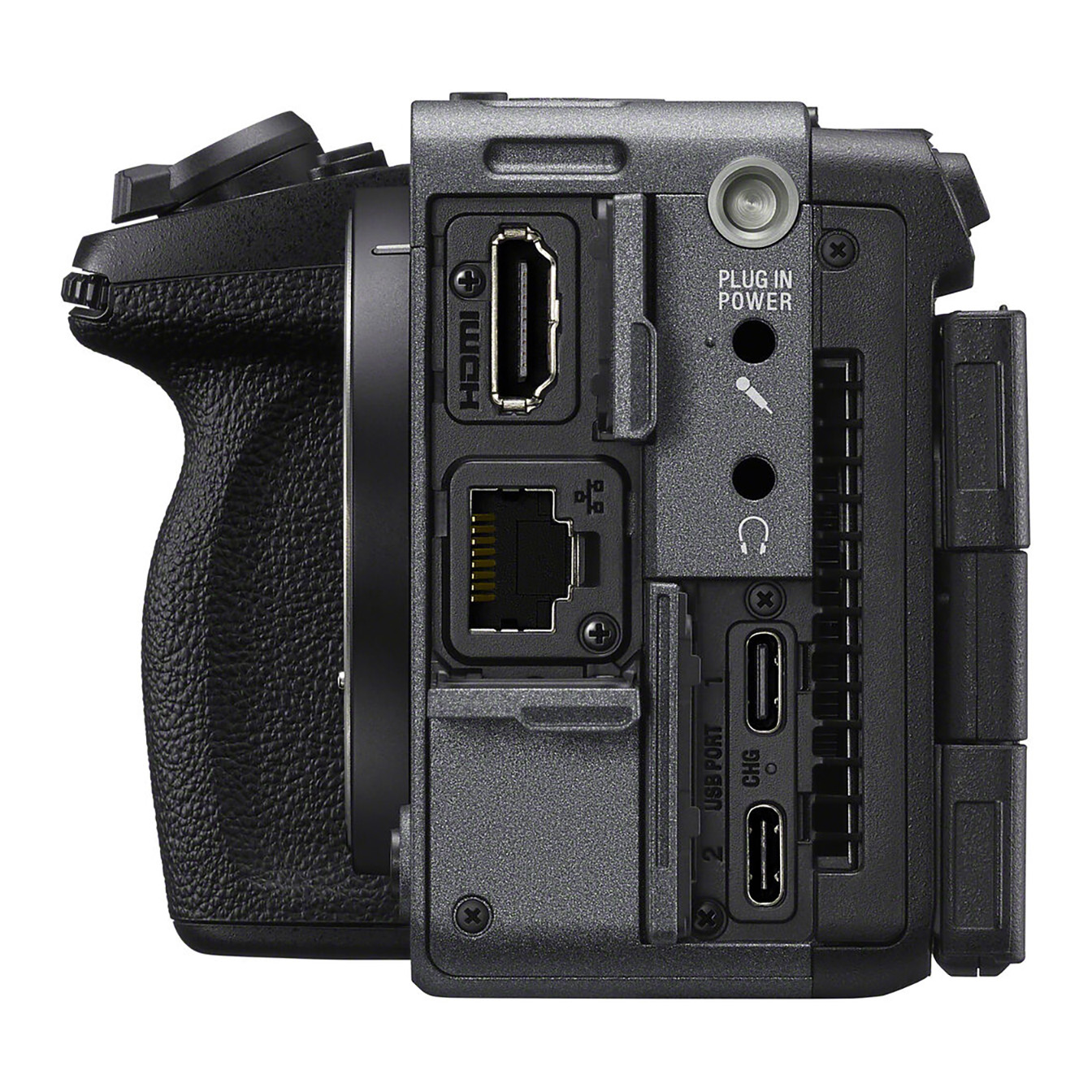

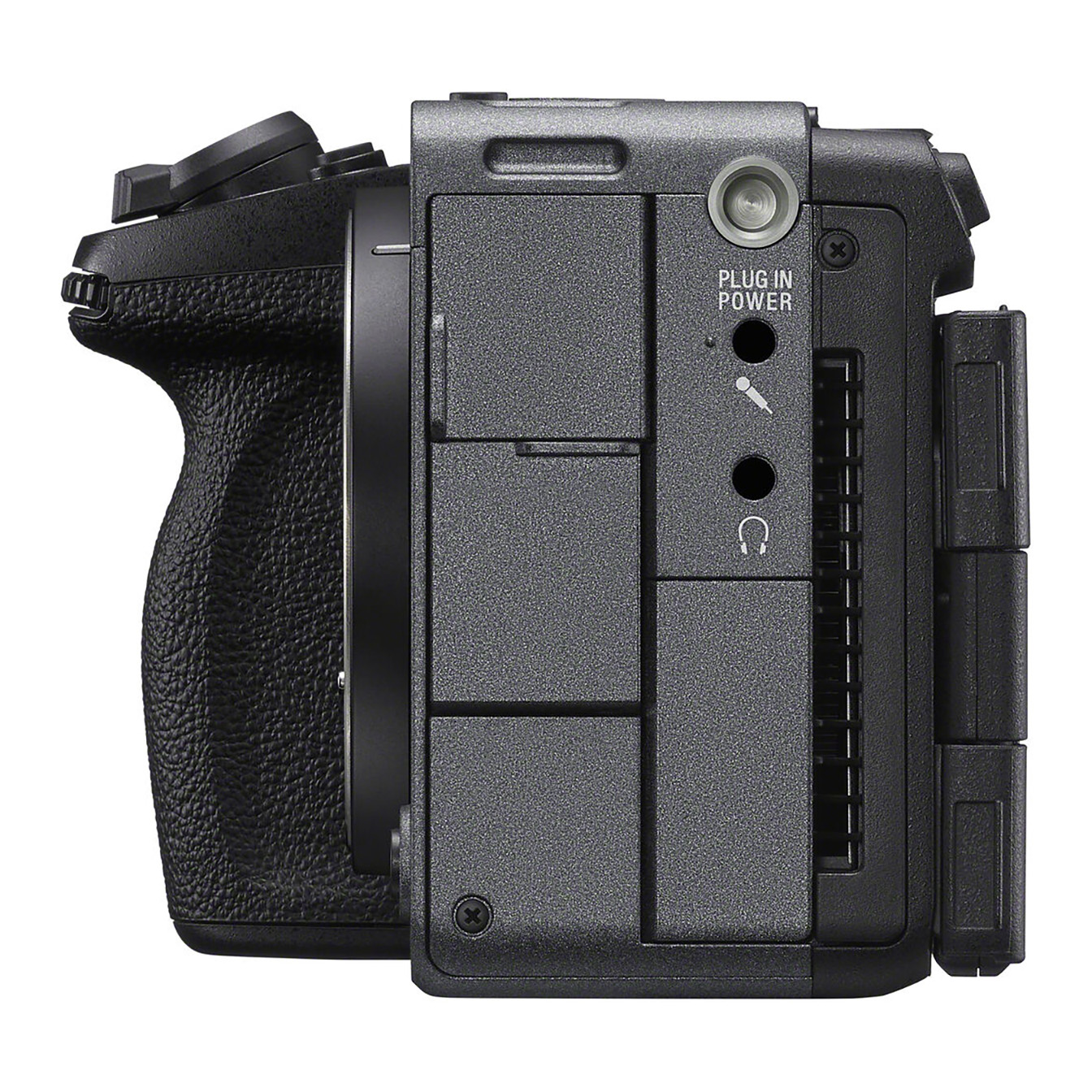

Dual USB-C Ports & BNC Timecode Sync: Equipped with two high-speed USB-C interfaces, full-size HDMI, Ethernet, 3.5mm mic/headphone jacks, and USB-C-to-BNC timecode adapter support for multicamera synchronization.
High-Capacity NP-SA100 Power: Powered by next-generation NP-SA100 lithium-ion battery packs, providing over two hours of continuous internal 5K X-OCN recording per charge.

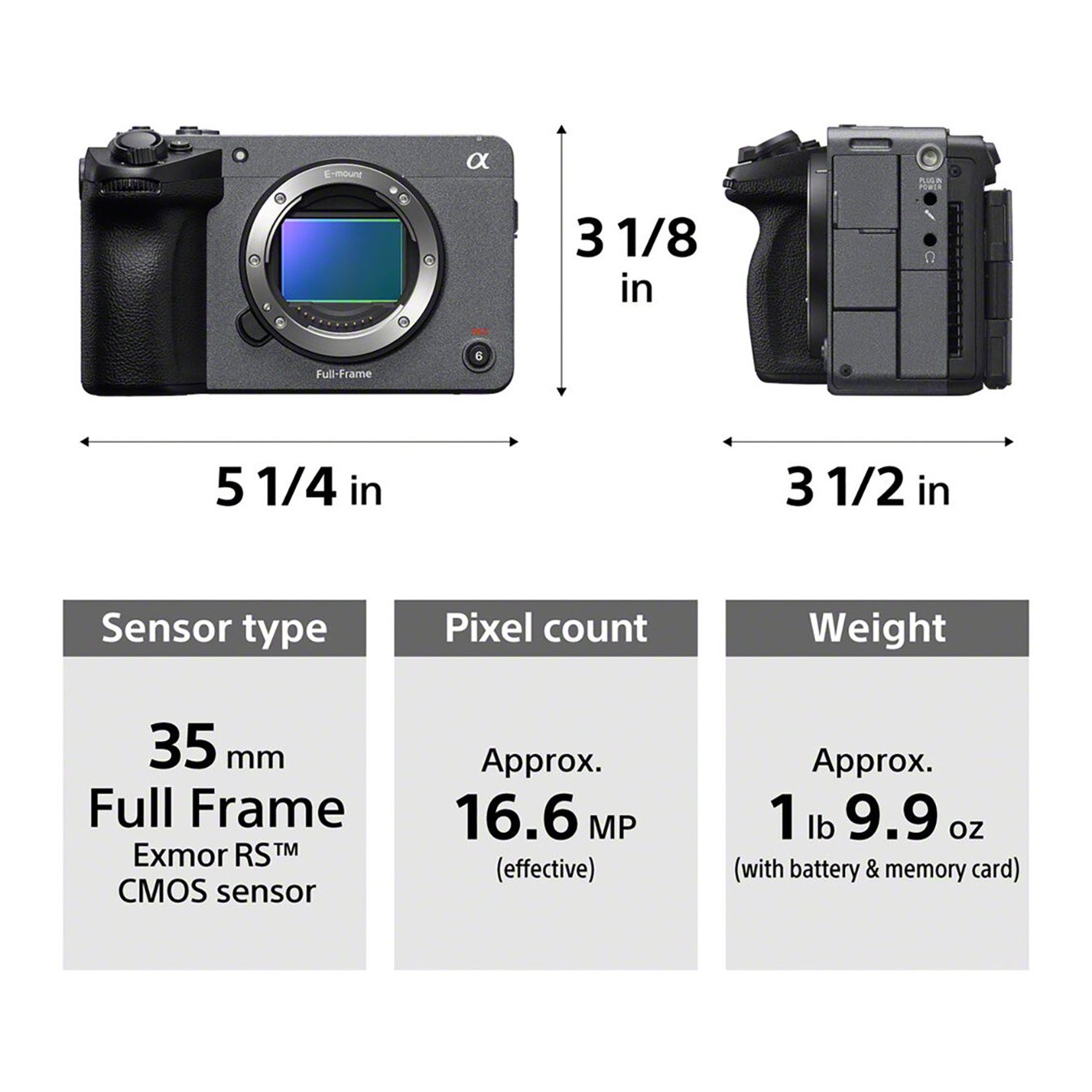

Technical Specifications
Camera Classification: Professional Full-Frame Cinema Line Camera Body

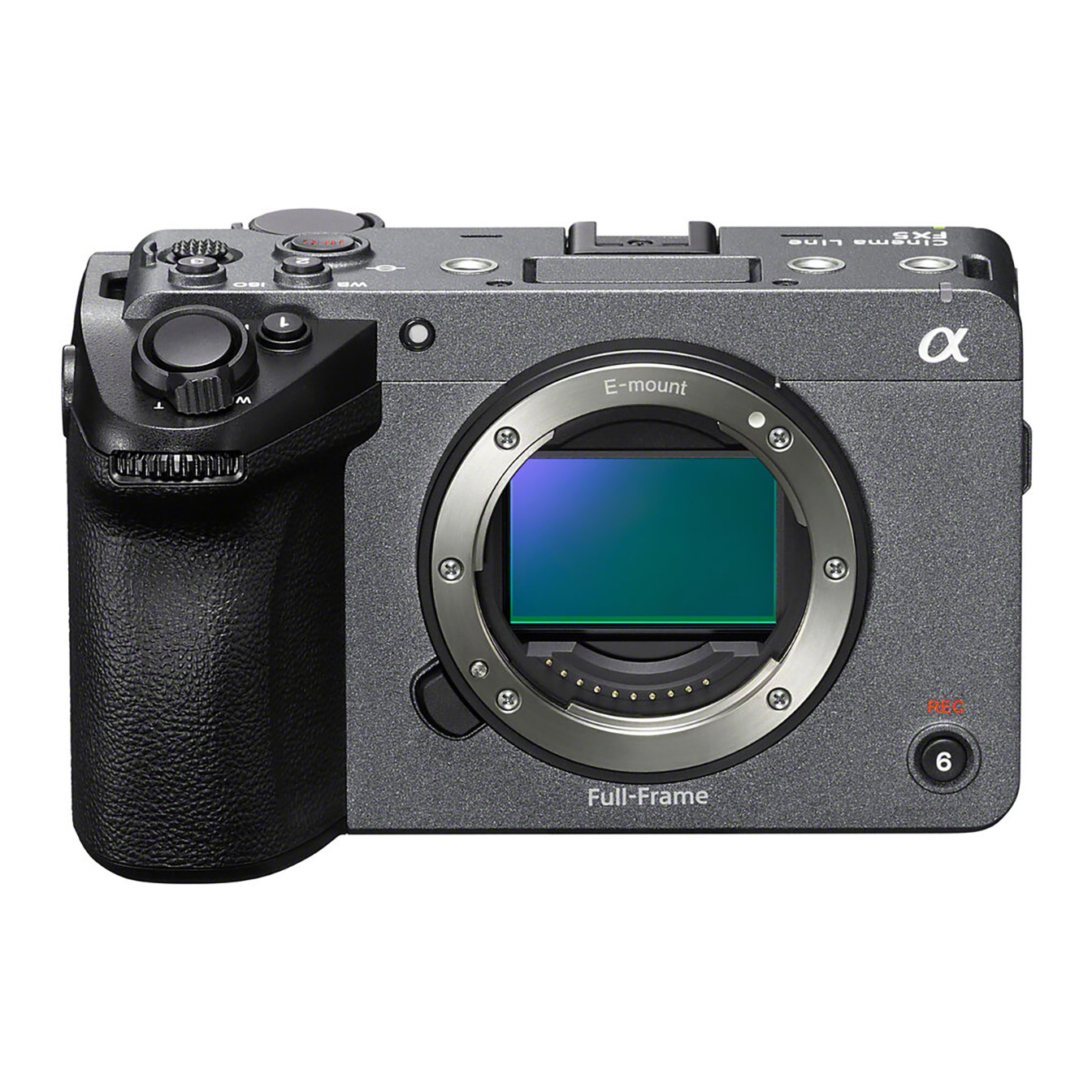

Lens Mount System: Sony E-Mount Native

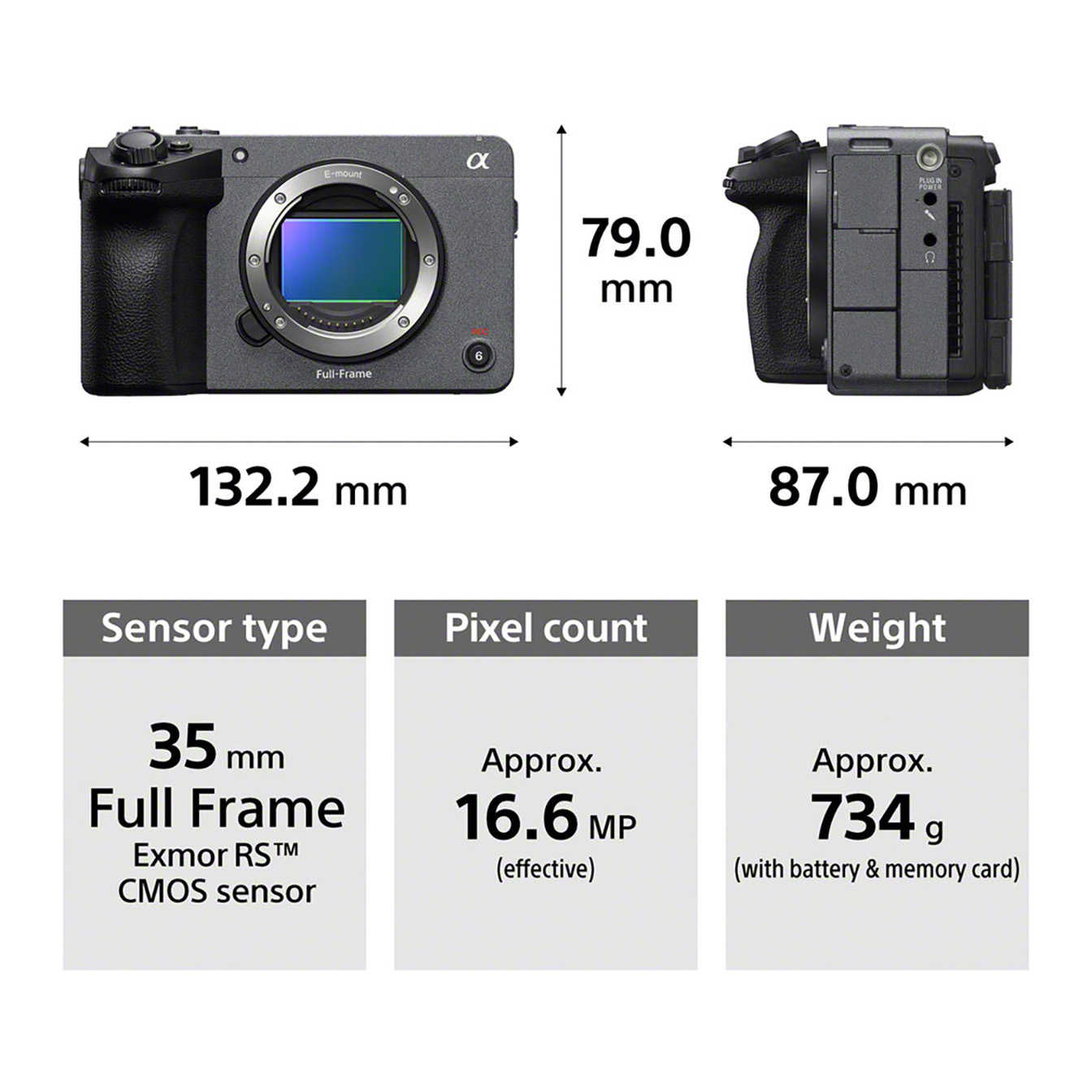

Effective Resolution: 16.6 Megapixels (5K Sensor Capture)
Image Sensor Matrix: Full-Frame Stacked Exmor RS CMOS (3:2 Aspect Ratio)
Native Base ISO Settings: Three Base ISOs (ISO 800 / ISO 4000 / ISO 12800)
Dynamic Range Depth: 16+ Stops (S-Log3 / X-OCN)
Internal Recording Options: 5K Open Gate (3:2) up to 60p in X-OCN (LT, C1, C2) & XAVC Codecs
In-Body Stabilization: 5-Axis Sensor-Shift IBIS with Active Roll Electronic Mode

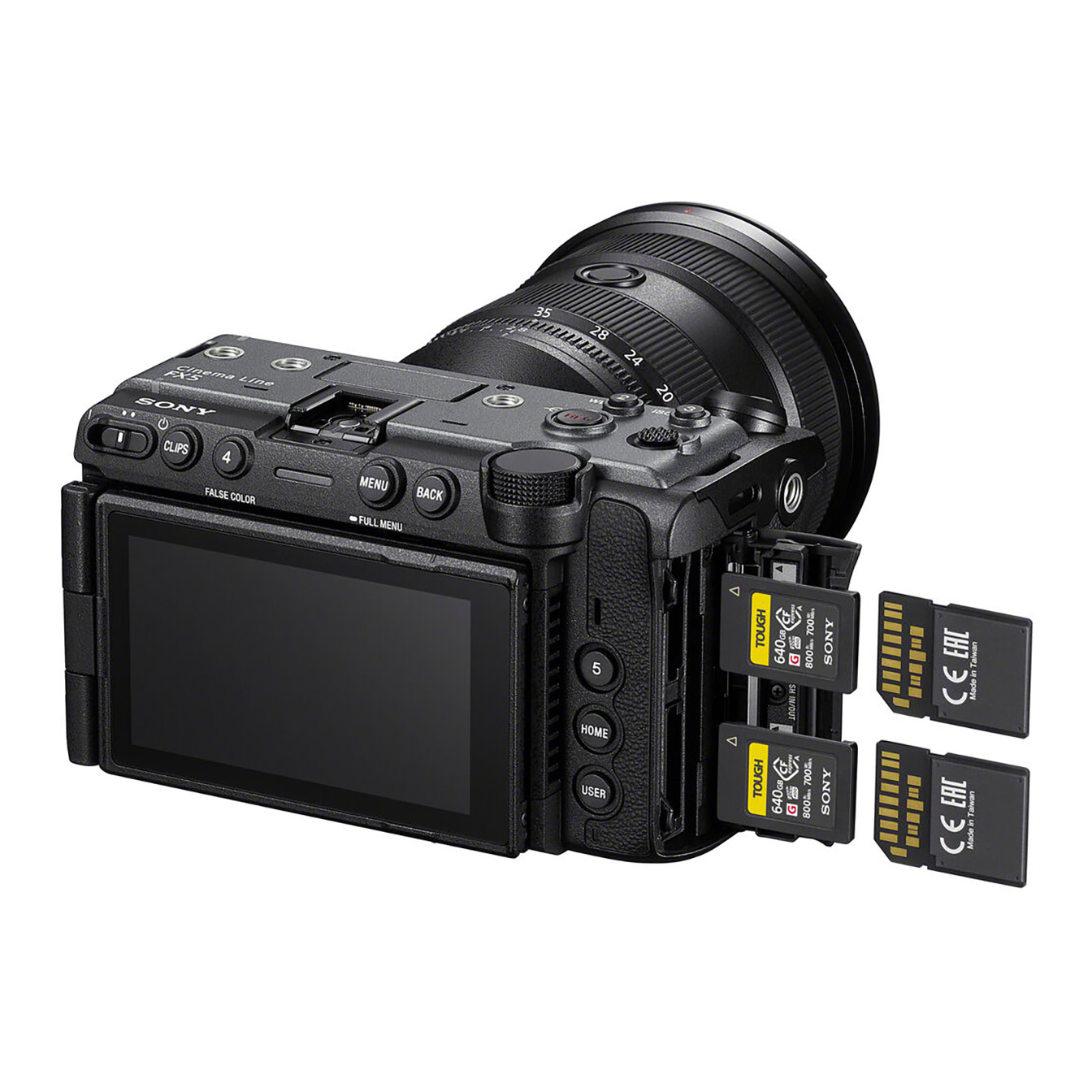

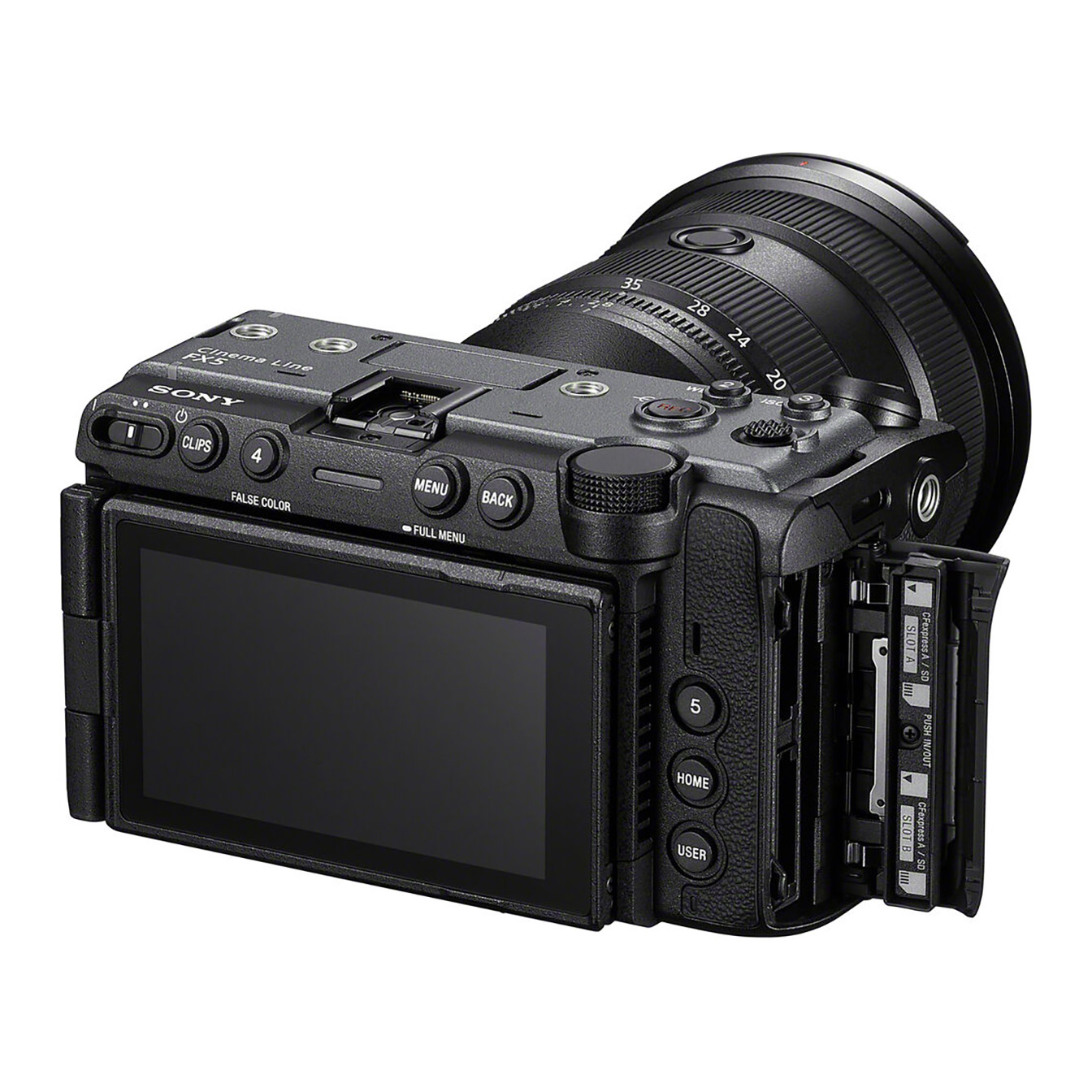

Expansion Storage Interface: Dual Card Slots (Slot 1 & 2: CFexpress Type A / SD UHS-II)
Display Monitor: 3.5-Inch 16:9 4-Axis Multi-Angle Touchscreen LCD
Power Source Requirements: High-Capacity NP-SA100 Rechargeable Battery Pack
Audio Protocol Support: 24-Bit Linear PCM / 32-Bit Float (Via Optional XLR-H2 Handle)
