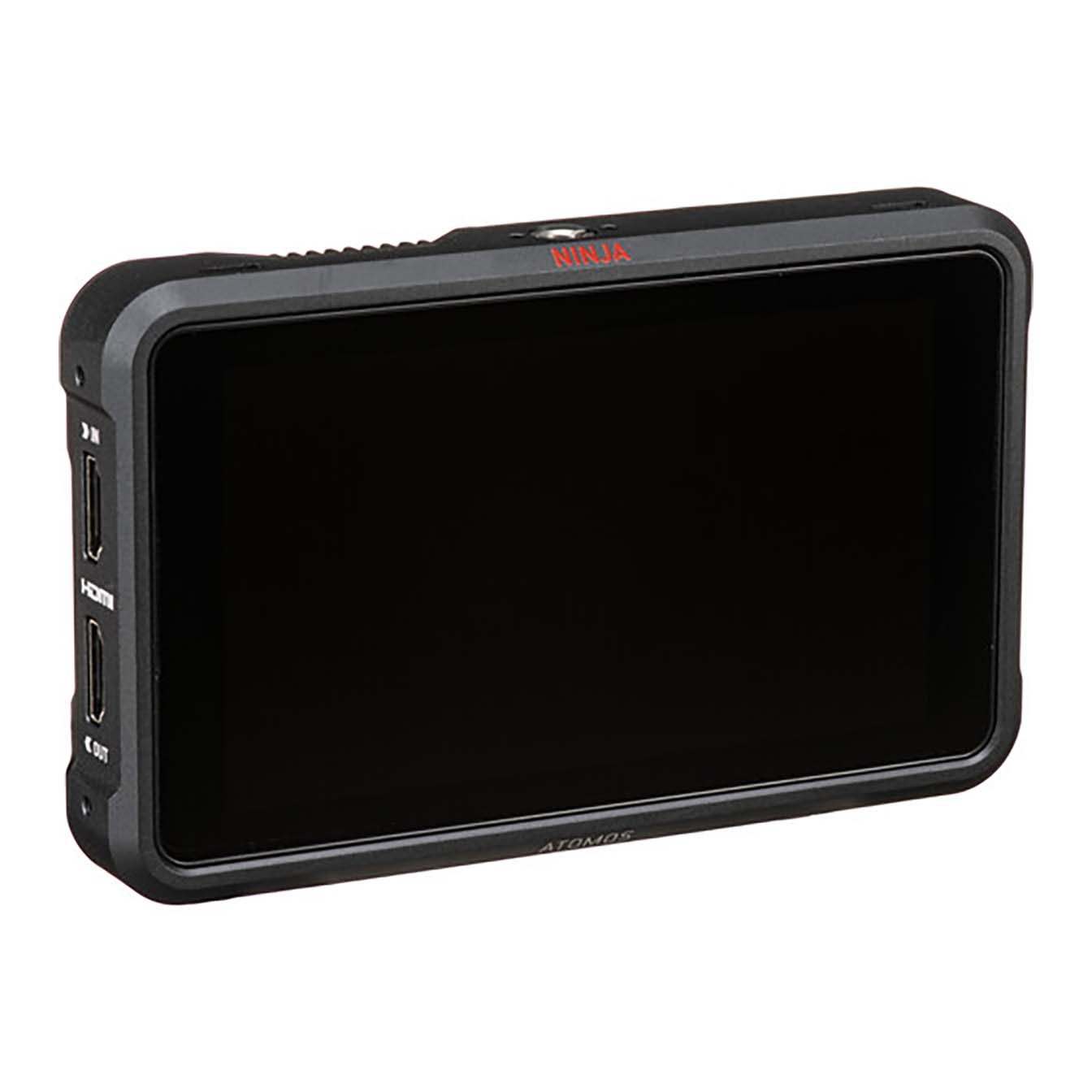

Atomos Ninja V 5″ 4K HDMI Recording Monitor

The Atomos Ninja V is a versatile 5″ on-camera monitor and external recorder designed for DSLR, mirrorless, and cinema cameras. Featuring a daylight-viewable 1000 cd/m² 10-bit IPS display with AtomHDR technology, it allows precise monitoring of log footage across 10+ stops of dynamic range. Capable of recording up to DCI 4K60 video directly from camera sensors, the Ninja V supports high-quality codecs including Apple ProRes RAW, Apple ProRes, and Avid DNxHR/HD onto 2.5″ SSDs or compact AtomX SSDmini drives. Encased in a durable aluminum chassis and powered via Sony L-series (NP-F) batteries, it provides essential focus, exposure, and anamorphic monitoring tools alongside expandable connectivity via modular AtomX accessories.

Key Features and Specifications

• 5″ 1000 cd/m² AtomHDR Display: Daylight-viewable 1920 x 1080 touchscreen display with 10-bit processing, 1000 cd/m² LED backlighting, custom 3D LUT support, and calibration capabilities.
• DCI 4K60 & ProRes RAW Recording: Captures up to DCI 4K at 60 fps (and up to 120 fps in HD) in Apple ProRes RAW, 10-bit 4:2:2 Apple ProRes, or Avid DNxHR/HD over HDMI to bypass internal camera compression.
• SSD Media Support: Uses standard 2.5″ SATA SSDs (via included Master Caddy) or slim AtomX SSDmini drives for high-bitrate recording.
• Professional Exposure & Focus Tools: Built-in waveform, vectorscope, focus peaking, 1:1/2:1 zoom, false color, zebra, frame guides, and anamorphic de-squeeze (2x, 1.5x, 1.33x, 8:3).
• Expansion Module Compatibility: Supports optional AtomX SDI, AtomX SYNC, AtomX CAST (multi-input switcher), and Atomos CONNECT modules for 12G-SDI integration, wireless timecode, and C2C (Camera-to-Cloud) / RTMP live streaming.
• Wireless Remote & AirGlu Timecode: Bluetooth LE connectivity via the AtomRemote app for iOS/macOS and frame-accurate timecode synchronization across multi-cam setups via AirGlu.

Condition and Included Accessories

• Included Accessories: Protective carrying case, NP-F style rechargeable battery, Micro-HDMI to Full-HDMI cable, SmallRig mounting attachments, and 1 Master Caddy drive caddy included. SSD drives, power supply/charger, and additional HDMI cables are NOT included.
