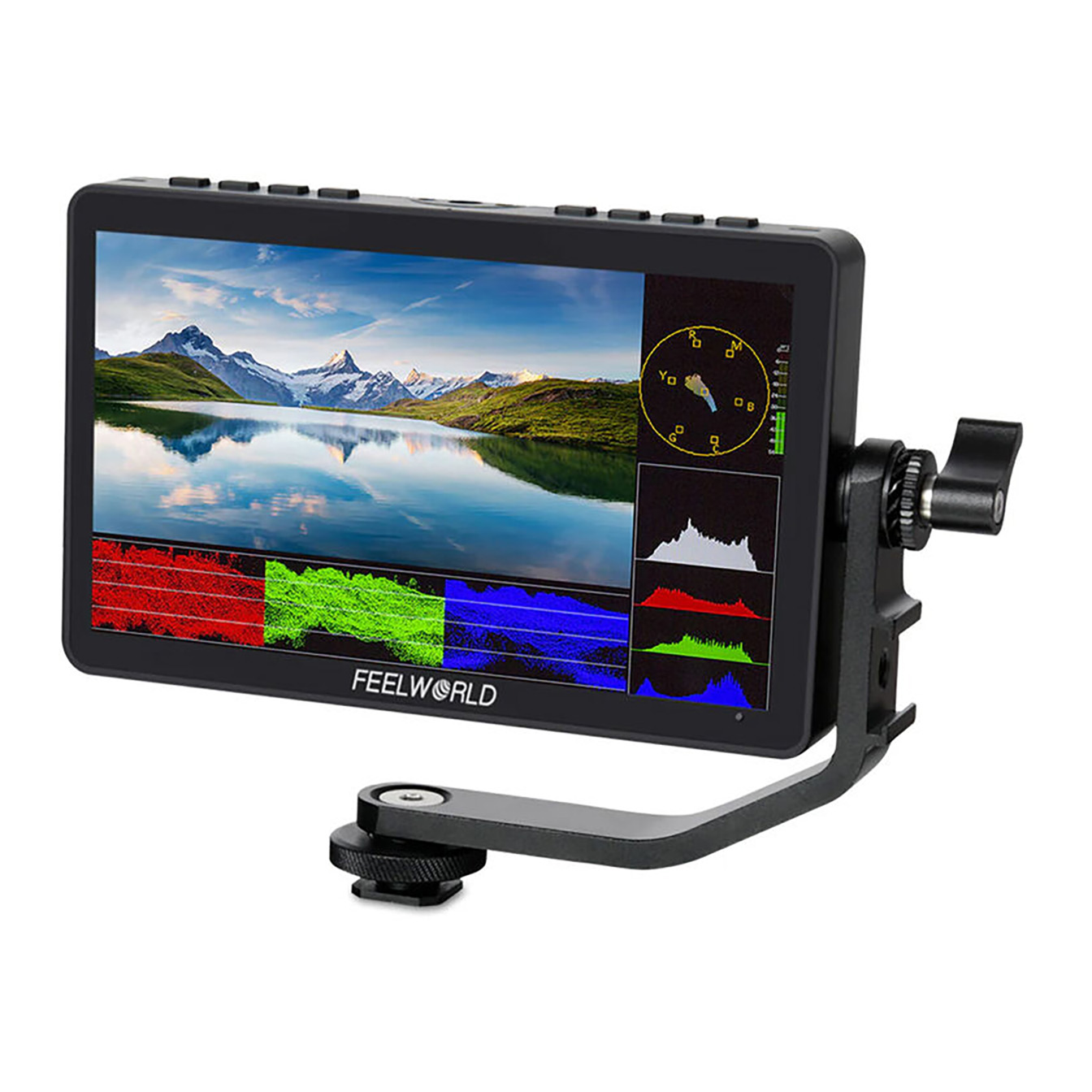

FeelWorld F5 Pro X 5.5″ High-Brightness HDMI Touchscreen Monitor

FeelWorld F5 Pro X 5.5″ High-Brightness HDMI Touchscreen Monitor
The FeelWorld F5 Pro X is a high-performance 5.5″ on-camera monitor designed for filmmakers who need critical focus and exposure tools in any lighting condition. Featuring a massive jump in visibility with its 1600 cd/m² high-brightness display, this 1080p touchscreen ensures your image remains clear even in direct sunlight. With professional monitoring tools like 3D LUT support, vectorscopes, and a unique external installation kit for wireless transmitters, the F5 Pro X is a versatile powerhouse for any 4K camera rig.

High-Brightness Display and Intuitive Control
1600 cd/m² Daylight Viewable: The upgraded high-brightness panel is nearly three times brighter than standard field monitors, allowing for confident monitoring outdoors without a hood.

Touchscreen Interface: Navigate menus and adjust settings with ease. The screen supports pinch-to-zoom gestures for checking critical focus. For traditionalists, the touch function can be disabled to use the physical top buttons.

3D LUT Support: View your footage with its intended final look using four built-in Log-to-Rec.709 profiles. You can also load up to 32 custom user LUTs via the USB input to match specific camera formats or creative grades.

Professional Monitoring Tools
Advanced Scopes: Includes a comprehensive suite of tools for technical accuracy, including Vectorscope, Histogram, False Color, Zebra Exposure, and Anamorphic Mode.

Audio Monitoring: Features on-screen audio level meters and a 3.5mm headphone jack for real-time audio monitoring.

4K HDMI Connectivity: Supports HDMI input and loop-out for signals up to DCI 4K, allowing you to send your feed to a secondary monitor or wireless transmitter simultaneously.

Innovative Mounting and Power Options
F970 External Install Kit: A unique bracket on the rear allows you to mount and power external equipment—like wireless transmitters or converters—directly onto the monitor, cleaning up your cage and saving space.

Triple Power Versatility: Power the monitor via an L-series battery, a DC barrel adapter, or the 5V USB-C input for use with power banks.

Camera Power Output: An 8.4V DC output allows the monitor to act as a power source for your mirrorless or DSLR camera (requires an optional dummy battery).

Included Professional Accessories
Tilt Arm with Cold Shoe: Mounts directly to your camera’s hot shoe, allowing 360° rotation for easy viewing and providing an extra cold shoe mount for a microphone or the included LED light.

Protective Carrying Case: A dedicated hard-shell case to keep your monitor and accessories organized and protected during transit.

Sunshade: Includes a snap-on sun hood for even better visibility in extreme glare environments.

NP-F Style Battery: This kit comes with a battery to get you shooting immediately.

Technical Specifications
Screen Size: 5.5″ IPS Touchscreen

Resolution: 1920 x 1080

Brightness: 1600 cd/m²

Contrast Ratio: 1000:1

Input/Output: HDMI

Mounting: 1/4″-20 Threaded Points (Top, Bottom, Right, Rear)
