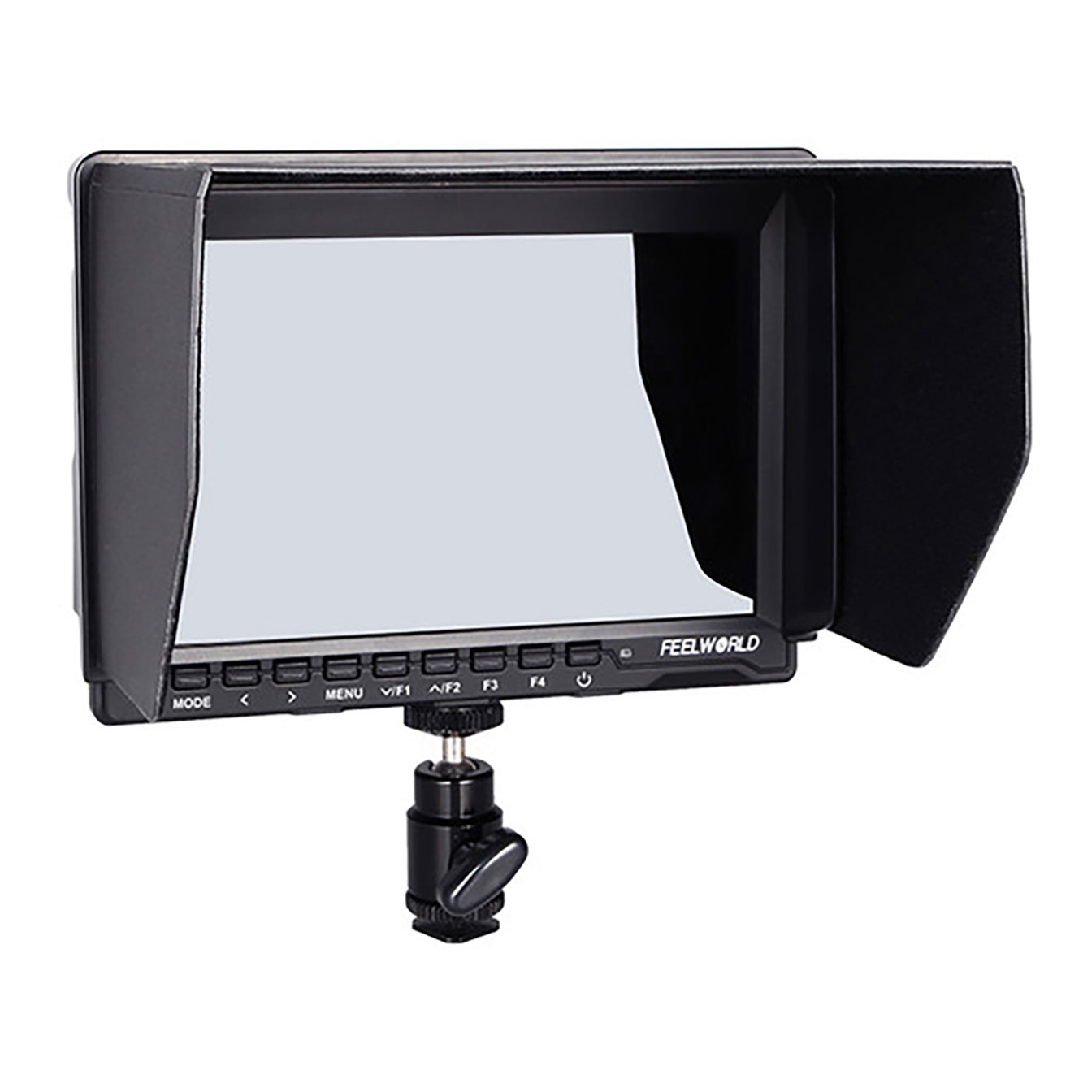

FeelWorld FW759 7″ IPS HDMI 4K On-Camera Monitor with Sunshade and HDMI Lock

The FeelWorld FW759 7″ IPS HDMI 4K On-Camera Monitor with Sunshade and HDMI Lock is a compact field monitor designed to give DSLR, mirrorless, and camcorder users a larger, clearer view than their camera’s built-in screen for sharper focus and better framing. It’s well suited to gimbal, stabilizer, and rig-based shooting where a bigger monitoring display is needed.

The monitor uses a 7-inch IPS-type LCD panel at a native resolution of 1280 x 800 (16:10 aspect ratio), delivering a maximum brightness of 400 cd/m² (nits) and an 800:1 contrast ratio, along with a wide 178-degree viewing angle for consistent, accurate images from virtually any position. It accepts HDMI input signals up to DCI 4K (4096 x 2160 at 24Hz) and UHD 4K (3840 x 2160 at up to 30Hz), along with a 1/8″ (3.5mm) TRRS A/V composite input, making it compatible with most DSLR cameras and camcorders.

Built-in image tools include focus peaking, false color, image flip (horizontal, vertical, and both), image freeze, pixel zoom and pixel-to-pixel zoom, overscan and underscan, anamorphic de-squeeze, customizable aspect ratio markers, and center and safe-area markers (80%, 85%, 90%, 93%, 96%, and 2.35:1), giving photographers and videographers a comprehensive set of monitoring aids for focus and exposure accuracy. Audio monitoring is supported via HDMI-embedded audio output to a 3.5mm stereo headphone jack or the monitor’s built-in speaker.

Build quality features a slim, under-1-inch-thick design weighing approximately 300g (10.58 oz), making it light and portable enough for use with gimbals, stabilizers, and camera rigs. The monitor includes a locking HDMI connector to help reduce stress and accidental disconnection of the HDMI cable during handheld or rig-mounted shooting, along with an included sunshade to improve visibility in bright outdoor conditions. It mounts via a 1/4″-20 female thread on the bottom, accepts DC input from 5.5 to 35V, and uses a Sony L-series type battery plate for portable power (battery and power supply not included). The monitor measures approximately 6.9 x 5.1 x 0.7 in. (17.53 x 12.95 x 1.78cm).

Key Features
– 7″ IPS LCD on-camera field monitor
– Native resolution of 1280 x 800 (16:10 aspect ratio)
– 400 cd/m² (nits) brightness; 800:1 contrast ratio
– 178° viewing angle
– HDMI input up to DCI 4K24 / UHD 4K30
– 1/8″ (3.5mm) TRRS A/V composite input
– Focus peaking, false color, image flip/freeze, pixel zoom tools
– Anamorphic de-squeeze and customizable aspect ratio markers
– Center and safe-area markers (80-96%, 2.35:1)
– 3.5mm headphone output and built-in speaker (HDMI embedded audio)
– Locking HDMI connector
– Included sunshade
– Sony L-series type battery plate (battery/power supply not included)
– 1/4″-20 female mounting thread (bottom)
– DC input: 5.5-35V
– Slim, lightweight design (approximately 300g)
