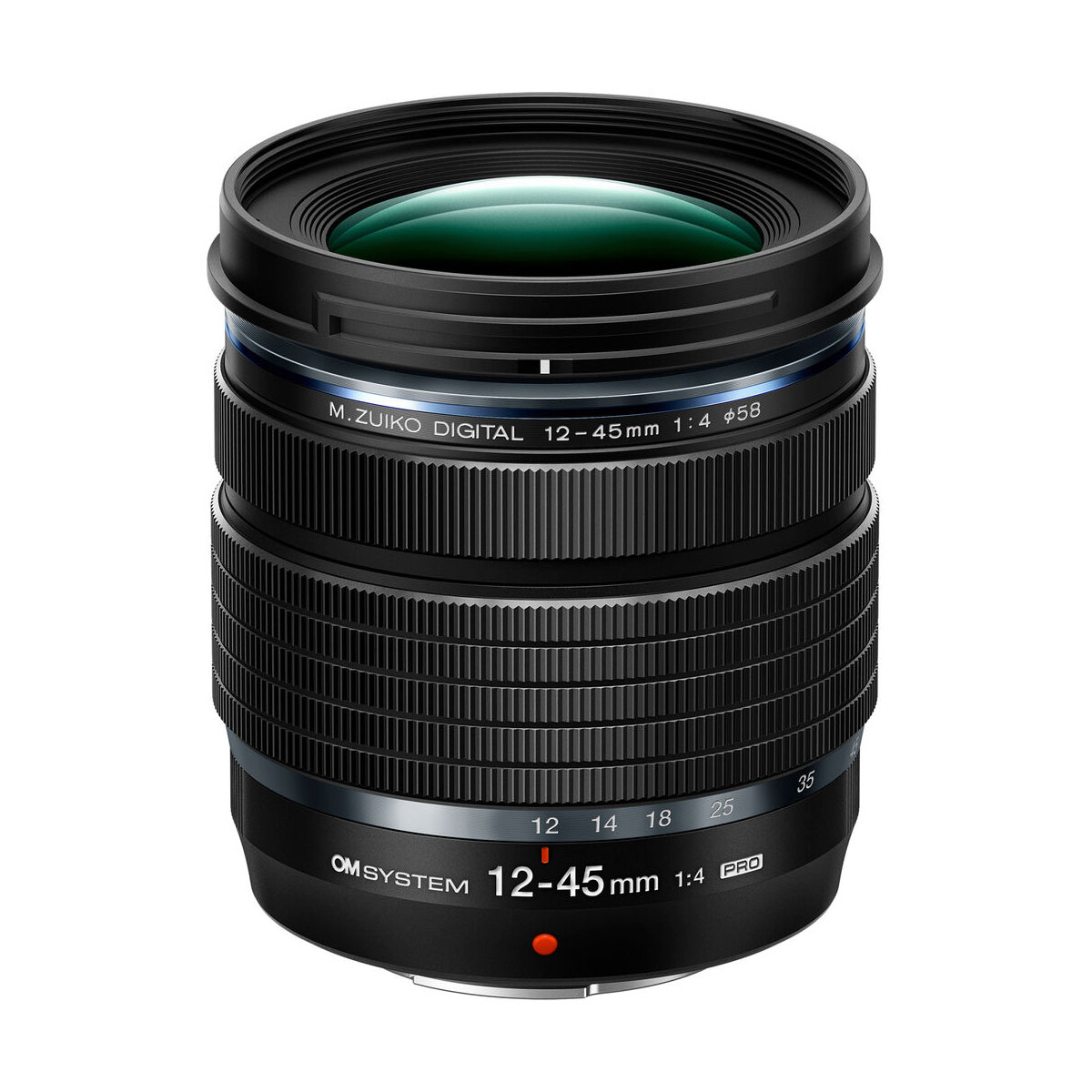

OM SYSTEM M.Zuiko Digital ED 12-45mm f/4 PRO Lens

The OM SYSTEM M.Zuiko Digital ED 12-45mm f/4 PRO Lens is the world’s smallest, lightest medium-range zoom lens with a fixed aperture value, designed to fit right in with OM System’s compact, portable OM-D camera line. Covering a 24-90mm full-frame-equivalent focal range, this standard wide-angle to portrait-length zoom suits a wide variety of everyday shooting situations.

Optically, the lens is built from 12 elements in 9 groups, including one DSA element, one Super HR (High Refractive Index) element, two additional HR elements, two aspherical elements, and two ED (Extra-low Dispersion) elements, generating sharpness right to the edge of the frame across the entire zoom range while suppressing spherical aberrations, color fringing, and distortion. OM System’s ZERO (Zuiko Extra-low Reflection Optical) coating minimizes lens flare and ghosting for improved contrast and color fidelity in strong lighting. A rounded 7-blade diaphragm produces smooth, pleasing bokeh.

Autofocus uses OM System’s MSC (Movie & Still Compatible) high-speed autofocus system, delivering fast, accurate focusing well suited to both stills and video. The lens offers a close minimum focusing distance of 0.12m (4.7 in.) at the wide end, extending to 0.23m (9.1 in.) at the telephoto end, yielding an impressive 0.25x maximum magnification ratio (0.5x 35mm-equivalent), well suited to close-up subjects in addition to standard zoom shooting.

Build quality is a standout feature, with a smart nine-seal weather-sealing system effectively keeping out rain, dust, and dirt, consistent with M.Zuiko PRO-line construction standards. At under 3 inches long and weighing just 254g, it’s remarkably compact and lightweight for a constant-aperture zoom. The lens measures approximately 63.4mm in diameter by 70mm in length and accepts a 58mm filter thread.

As a Micro Four Thirds-specific lens, the M.Zuiko Digital ED 12-45mm f/4 PRO is designed exclusively for Micro Four Thirds mirrorless cameras from OM System/Olympus, Panasonic, and other Micro Four Thirds alliance manufacturers.

Key Features
– 12-45mm standard zoom (PRO series) for Micro Four Thirds
– Approximately 24-90mm full-frame-equivalent focal range
– Constant f/4 maximum aperture
– 12 elements in 9 groups, including 1 DSA, 1 Super HR, 2 HR, 2 aspherical, and 2 ED elements
– ZERO (Zuiko Extra-low Reflection Optical) coating
– MSC (Movie & Still Compatible) autofocus system
– Rounded 7-blade diaphragm
– Dust-, splash-, and freeze-resistant (nine-seal) construction
– Minimum focusing distance of 0.12m (wide) / 0.23m (tele); 0.25x maximum magnification
– 58mm filter thread
– World’s smallest, lightest fixed-aperture medium-range zoom (at release)
– Compact, lightweight design (approximately 254g)
– Compatible with Micro Four Thirds mirrorless cameras (OM System/Olympus, Panasonic, and alliance partners)
