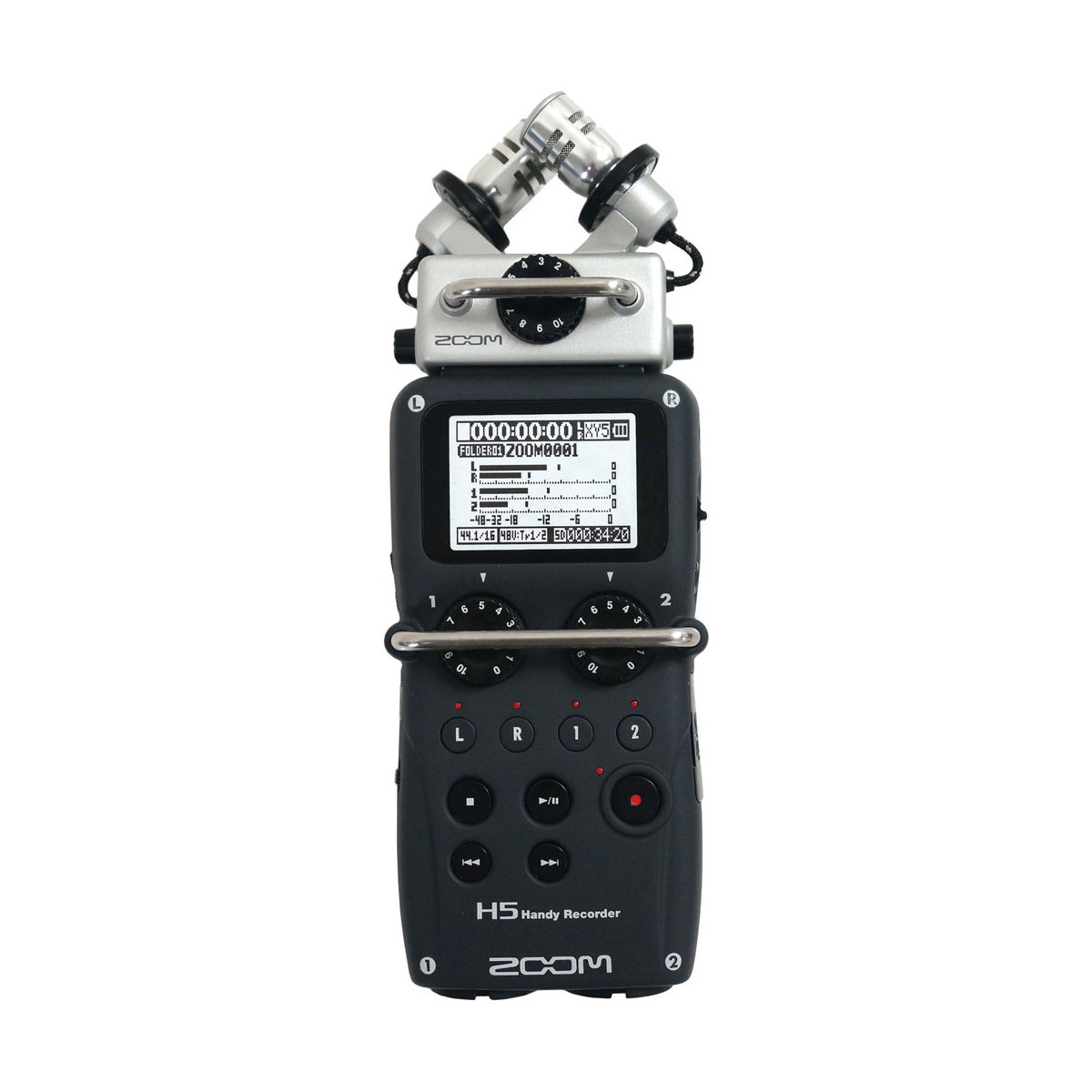

Rent NowThe Zoom H5 4-Input / 4-Track Portable Handy Recorder is a flexible, portable audio recorder built for documentaries, podcasting, audio for video, and professional sound design, letting users quickly record up to four input signals regardless of their audio experience. With a swappable stereo microphone capsule, versatile 2-channel inputs, and up to 4-track recording, it’s both user-friendly and easily expandable.
The H5 ships with Zoom’s XYH-5 interchangeable stereo microphone capsule, providing clear, phase-accurate capture in a classic 90-degree X/Y configuration for a tight stereo image, with shock-mounted mics to reduce handling noise and a design capable of handling up to 140dB SPL. The capsule system lets photographers and videographers swap input capsules as easily as changing a camera lens, with the recorder compatible with all Zoom input capsules for added versatility. Two XLR/TRS combo inputs provide dedicated mic/line connections, each with selectable phantom power and a -20dB pad, along with independent analog-style gain control knobs protected by “roll-bar” type covers to prevent accidental movement.
Recording capability includes up to 24-bit/96kHz resolution in BWF-compliant WAV format, or a variety of MP3 formats, with a maximum of 6 simultaneous monophonic (or up to 3 stereo) WAV files. Multi File mode allows simultaneous recording of the X/Y mic capsule and two external sources at once, useful for capturing both room sound and a stereo feed from a mixer. Built-in signal processing includes low-cut filtering, compression, and limiting, along with a chromatic tuner and metronome, Auto-record, Pre-record, and Backup-record functions (the latter simultaneously records a second, -12dB safety track to guard against unexpected audio spikes), and variable playback speed and pitch control without affecting one another.
Handling centers on a backlit LCD display (128 x 64 pixels), a built-in monophonic speaker (400mW, 8-ohm) for quick playback reference, and 3.5mm stereo mini-jack line and headphone outputs for simultaneously feeding a camera/DSLR and a pair of headphones, with a dedicated side-panel headphone volume control. The recorder also functions as a multichannel and stereo USB audio interface for PC, Mac, or iPad with loop-back functionality.
Build quality centers on a rugged, rubberized, ergonomic body suited to handheld use, with the recorder also mountable to a DSLR or camcorder using the optional HS-01 Hot Shoe Mount. Storage uses SD cards (16MB to 2GB) or SDHC cards (4GB to 32GB), and power comes from 2 AA batteries, rated for approximately 10 hours of continuous recording, or an optional AD-17 AC adapter for extended, indefinite recording time.
Key Features
– 4-input, 4-track portable handheld recorder
– Interchangeable XYH-5 X/Y stereo microphone capsule (90° configuration, handles up to 140dB SPL)
– Compatible with all Zoom input capsules
– Two XLR/TRS combo mic/line inputs with selectable phantom power and -20dB pad
– Dedicated gain control knobs with protective roll-bar covers
– Records up to 24-bit/96kHz BWF-compliant WAV, or various MP3 formats
– Up to 6 simultaneous monophonic (or 3 stereo) WAV files
– Multi File recording mode
– Low-cut filter, compression, and limiting
– Chromatic tuner and metronome
– Auto-record, Pre-record, and Backup-record functions
– Variable playback speed and pitch control
– Backlit LCD display (128 x 64 pixels)
– Built-in mono speaker (400mW, 8-ohm)
– 3.5mm line and headphone outputs with dedicated headphone volume control
– USB audio interface functionality (multichannel/stereo, with loop-back)
– SD (up to 2GB) and SDHC (up to 32GB) card compatibility
– Mountable via optional HS-01 Hot Shoe Mount
– Powered by 2 AA batteries (~10 hours) or optional AD-17 AC adapter
– Rugged, rubberized, ergonomic body
