Rent NowPORTKEYS LH7P 7″ High-Bright Touchscreen Monitor with Wireless Camera Control (Black)
Professional On-Camera Field Monitor – 7.0″ Full HD 1920×1080 Touchscreen Display, 1000 Nits Daylight-Viewable High Brightness, Integrated Wi-Fi & Bluetooth Wireless Camera Control Modules (Supports Sony Mirrorless & Blackmagic Pocket Cinema Cameras), 4K HDMI Input & Loop-Through Output with 3D LUT Downstream Output, Custom 3D LUT Support via USB, 4K-to-1080p Oversampling, Real-Time Anamorphic De-Squeeze (0.25x-4.00x), Custom Image Crop & JPG Freeze Frame Ghosting/Overlay, Vertical Shooting Leg Stretch Display & HDMI Output, Advanced Exposure & Focus Tool Suite (Custom Peaking Frame, RGB/Waveform Before & After 3D LUT, False Color, Zebra), Integrated Sony NP-F Battery Plate, Native Field Production & Gimbal Rigging (Excellent Condition)
The PORTKEYS LH7P is an advanced 7-inch daylight-viewable on-camera touchscreen monitor engineered to unify precision exposure monitoring with direct wireless camera control for solo filmmakers, commercial videographers, gimbal operators, and content creators. Built with a 1000-nit high-brightness 1920×1080 Full HD display, the LH7P delivers clear, daylight-viewable monitoring in outdoor locations without requiring an unwieldy sunhood. The monitor accepts DCI 4K and UHD 4K video signals over HDMI, featuring 4K-to-1080p oversampling to produce clean, sharp, high-fidelity monitoring images with reduced moiré and edge artifacts.
Distinguishing itself from traditional displays, the LH7P incorporates built-in Wi-Fi and Bluetooth wireless control modules that interface directly with select Sony Alpha mirrorless cameras and Blackmagic Design Pocket Cinema Cameras (BMPCC 4K/6K/6K Pro). Operators can adjust essential camera parameters—including recording start/stop, ISO, aperture, shutter speed, and focus point selection—directly on the monitor’s responsive touchscreen interface. The monitor supports custom 3D LUT importing via USB, with the capability to send LUT-corrected signals downstream through the 1080p60 HDMI loop output. A full suite of production monitoring tools is integrated into the OS, including custom freeze-frame JPG image overlays for continuity matching, real-time vertical shooting stretch adjustments with HDMI output, flexible anamorphic de-squeeze ratios, dual-stage waveform and RGB signal analysis before and after LUT application, and customizable peaking frames. Powered by a standard Sony NP-F style battery plate or DC barrel input, the LH7P delivers an agile monitoring solution in top-tier shape.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
1000 Nits Daylight-Viewable Display: Bright 7.0″ 1920×1080 Full HD touchscreen panel allows confident framing and exposure monitoring in direct outdoor sunlight.
Built-In Wireless Camera Control: Features onboard Wi-Fi and Bluetooth to wirelessly control camera settings (recording, ISO, aperture, shutter, focus) on select Sony and BMPCC cameras.

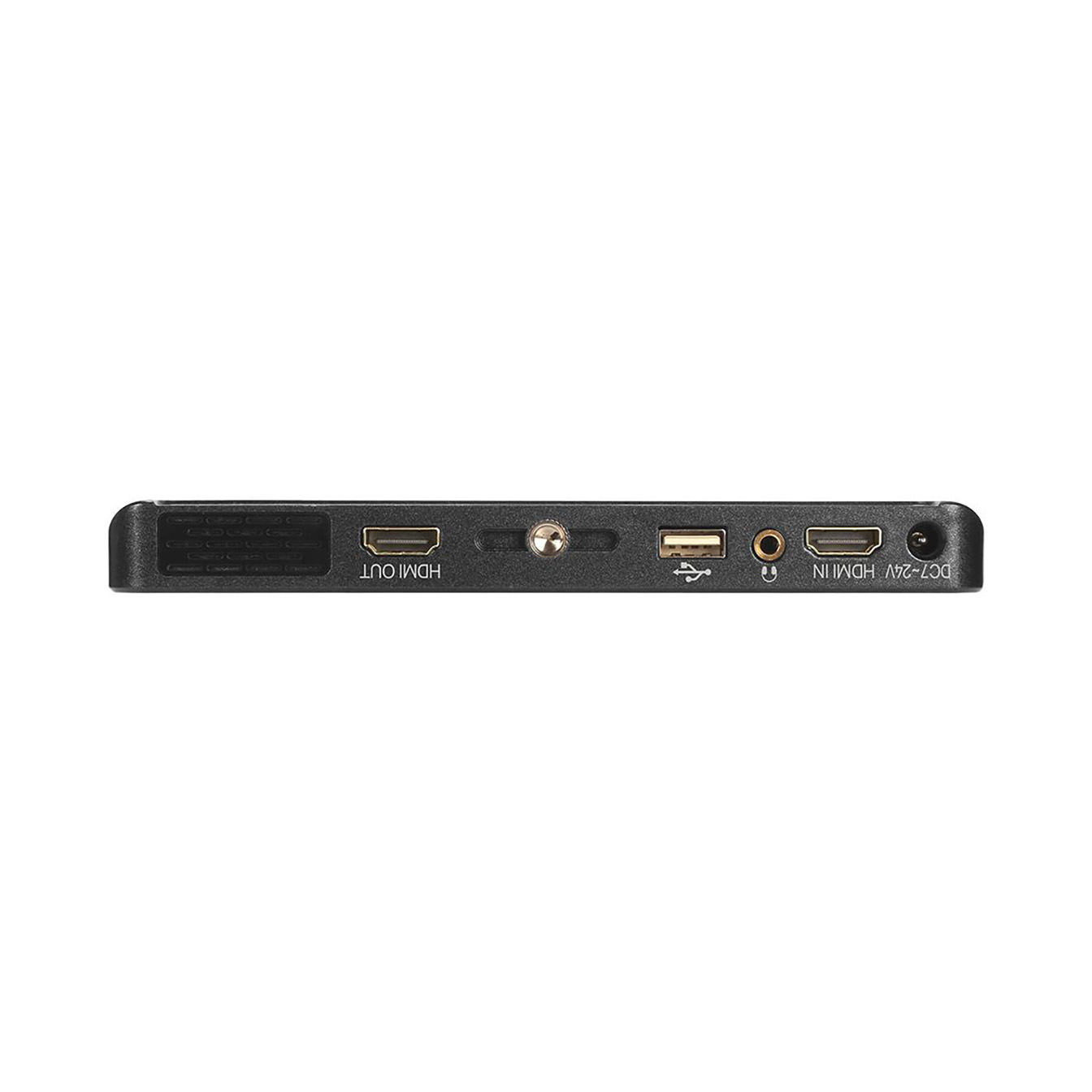

4K HDMI In & 1080p60 Loop-Out with 3D LUT: Accepts 4K HDMI video signals and sends a processed 1080p60 feed—including applied 3D LUT profiles—to external monitors or transmitters.
4K-to-1080p Oversampling Engine: Downsamples incoming 4K signals to 1080p internally, delivering enhanced micro-contrast and fine detail across the monitoring panel.
Dual-Stage Waveform & RGB Detection: Analyzes brightness and color levels both before and after 3D LUT processing for precise signal evaluation.
Custom JPG Freeze-Frame Ghosting: Captures on-set stills (1920×1080 16:9 JPG) and overlays them semi-transparently over live video for seamless shot continuity and framing alignment.
Vertical Shooting & Leg Stretch Feature: Stretches vertical mobile-format compositions in real time for social video workflows and outputs the stretched feed over HDMI.
Comprehensive Anamorphic De-Squeeze: Supports standard ratios (1.00x, 1.33x, 1.42x, 1.50x, 1.60x, 1.66x, 1.85x, 2.00x, 2.35x) with customizable adjustments from 0.25x to 4.00x.
Advanced Custom Peaking Range: Refined focus peaking algorithms allow users to define a custom peaking frame area to evaluate critical focus precisely where needed.
On-Screen Parameter Overlay: Overlays key camera exposure metadata and recording parameters on the monitor interface even when the camera HDMI clean output omits them.
