Rent NowPORTKEYS HD7T 7″ Daylight-Viewable Touchscreen On-Camera Monitor
Professional High-Bright Field Production Display – 7.0″ IPS LCD Panel with 1280×800 HD Resolution, 1000 Nits (cd/m²) Daylight-Viewable High Brightness, 1000:1 Contrast Ratio with Rec.709 8-Bit Color Reproduction, DCI 4K24 & UHD 4K30 HDMI Video Input, Legacy Coax Composite A/V Input (NTSC/PAL), Custom 3D LUT Support via USB-A (Stores up to 20 .cube Files), Full Suite of Production Exposure & Focus Scopes (RGB/Luma Waveform, Peaking, False Color, Zebra, Real-Time Eye Focus, Anamorphic De-Squeeze), Dual Operation (Capacitive Touchscreen Gestures + Top Programmable Physical Shortcut Buttons), Integrated Sony L-Series / NP-F Battery Plate & DC Barrel Input, Includes Snap-On Sunhood Bracket & Ball Head Shoe Mount (Excellent Condition)

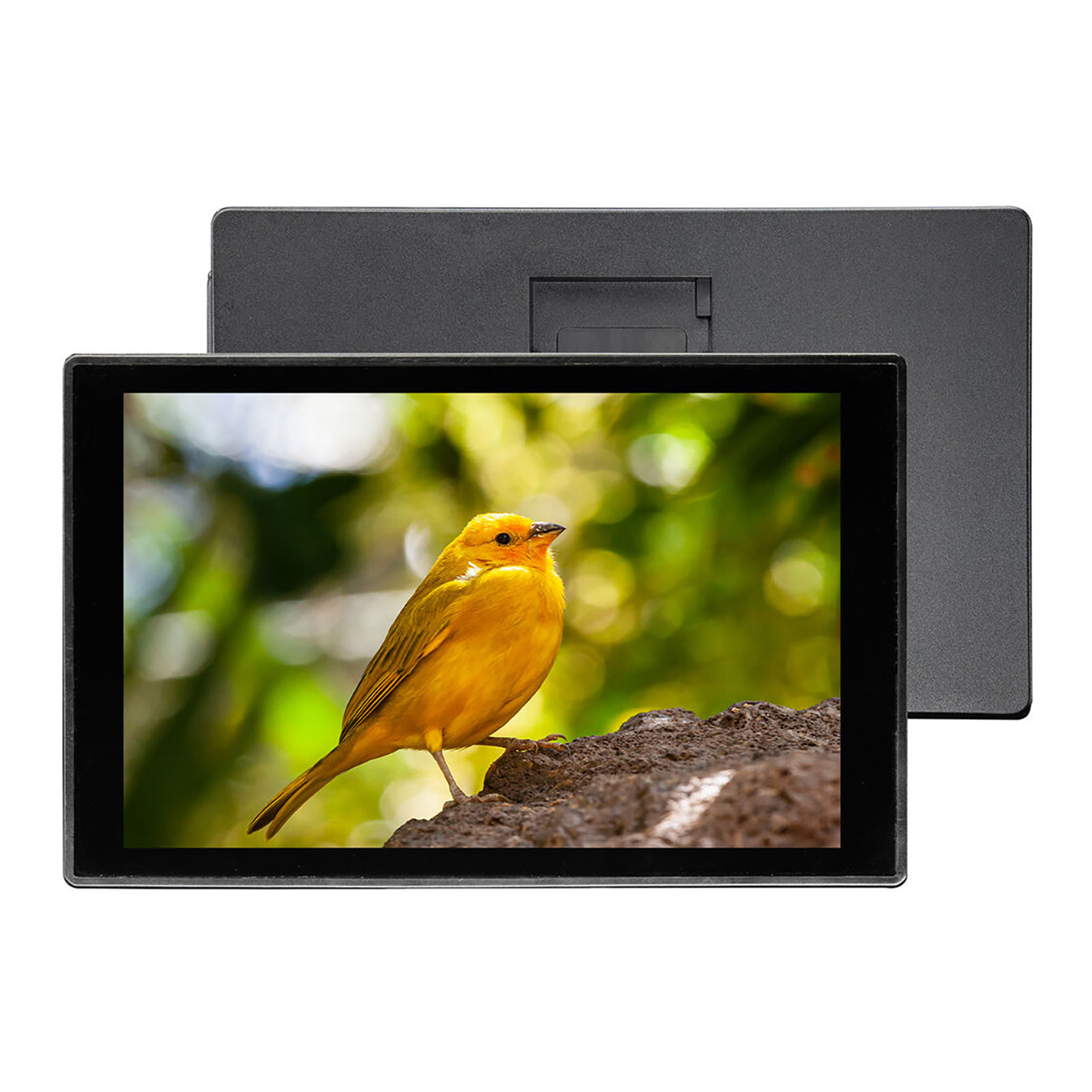

The PORTKEYS HD7T is a versatile, high-brightness 7.0-inch on-camera field monitor engineered to provide accurate framing, critical exposure evaluation, and streamlined color grading workflows for cinematographers, broadcast operators, indie filmmakers, and video crews. Featuring a robust 1000 cd/m² (nits) daylight-viewable IPS LCD panel with a 1000:1 contrast ratio, the HD7T cuts through intense ambient sunlight, allowing operators to monitor outdoor sets confidently without relying strictly on a hood. The display reproduces standard Rec.709 color gamuts with clean 8-bit depth and wide 178-degree viewing angles, maintaining consistent color balance and contrast even when multiple crew members view the screen off-axis.
The HD7T features flexible dual-generation input connectivity: it accepts modern digital signals up to DCI 4K at 24p and UHD 4K at 30p over HDMI, while incorporating an analog coaxial composite A/V input to monitor legacy SD formats (NTSC/PAL), making it equally suitable for modern mirrorless video rigs and retro video or drone receiver setups. The monitor supports up to 20 custom 3D LUT profiles loaded via the front USB-A port, allowing directors and DPs to preview finished film looks, Log-to-Rec.709 conversions, and HDR/HLG profiles on set. Operators can navigate settings using either intuitive capacitive touch gestures or four tactile, customizable shortcut keys positioned on the top edge. Outfitted with an integrated Sony L-series (NP-F) battery plate, a locking 7-24V DC input, and multiple 1/4″-20 mounting sockets, the HD7T provides an agile, daylight-ready monitoring solution.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
1000 Nits Daylight Viewability: High-brightness 1000 cd/m² 7.0″ IPS LCD panel delivers clear visibility under direct midday sun without image washout.
DCI 4K & Analog Coaxial A/V Inputs: Accepts modern HDMI signals up to DCI 4K24 and UHD 4K30, as well as legacy composite coaxial A/V feeds for versatile camera compatibility.
Custom 3D LUT Loading & Storage: Imports 3D LUT .cube files via USB-A and stores up to 20 custom LUT presets internally for instant on-set color previewing.
Comprehensive Image Analysis Suite: Includes RGB/Luma Waveform, Luma Histogram, Zebra stripes, and False Color for precise exposure monitoring across dynamic ranges.
Critical Focus Calibration Tools: Features real-time eye focus assist, customizable peaking algorithms, image cropping, and pixel-to-pixel magnification.
Dual Navigation Interface: Combines responsive capacitive touchscreen gesture navigation with top tactile shortcut buttons for operation while wearing gloves or working from behind.
Anamorphic De-Squeeze: Supports industry-standard anamorphic stretch factors for monitoring widescreen cinema lenses without optical distortion.
Snap-On Sunhood Protection: Includes a quick-install sunhood and bracket that blocks extreme side reflections while maintaining full access to monitor controls.
Dual Powering Options: Operates cord-free via the integrated Sony L-Series (NP-F) battery plate or continuously via the 7-24V DC barrel power input.
TECHNICAL SPECIFICATIONS
Product Type: On-Camera Daylight-Viewable Field Monitor
Brand: PORTKEYS
Model: HD7T
Screen Size: 7.0 Inches Diagonal
Display Type: IPS LCD Touchscreen Panel
Resolution: HD 1280 x 800 Pixels
Aspect Ratio: 16:10
Brightness: 1000 cd/m² (Nits)
Contrast Ratio: 1000:1
Color Depth: 8-Bit (16.7 Million Colors)
Color Gamut: Rec. 709 Standard
Viewing Angle: 178° Horizontal / 178° Vertical

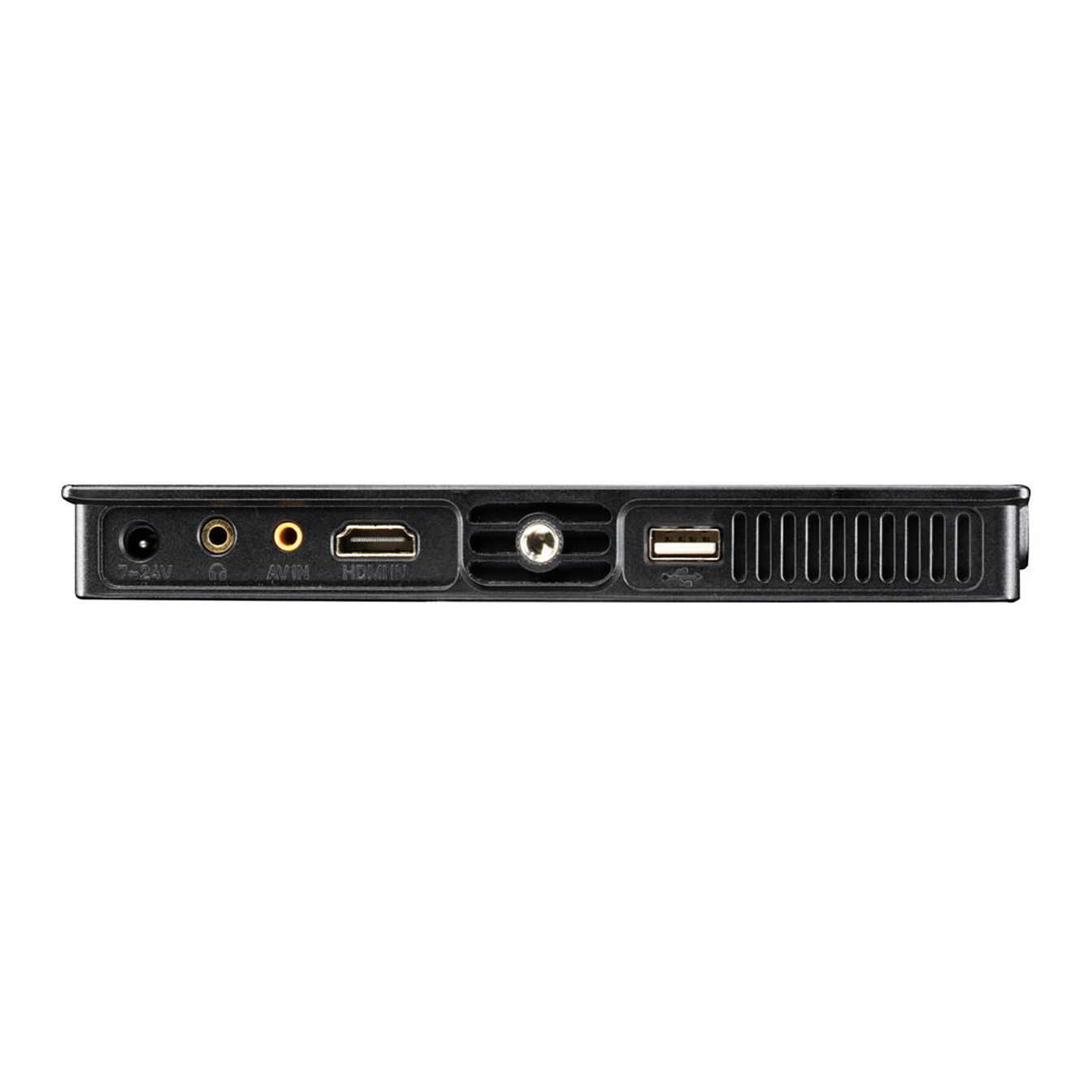

Video Inputs: 1x HDMI Type-A, 1x Coaxial A/V Composite Input (RCA/Coax compatible)
Input Video Resolutions (HDMI): DCI 4K (4096 x 2160) at 24p; UHD 4K (3840 x 2160) at 23.98p / 24p / 25p / 29.97p / 30p; 1080p up to 60p; 1080i; 720p
Input Video Resolutions (Coax A/V): NTSC / PAL Standard Definition
Audio Output: 1x 3.5mm Stereo Headphone Output Jack
USB Interface: 1x USB-A (Supports Custom 3D LUT .cube File Uploads & Firmware Updates)
LUT Storage Capacity: Up to 20 Custom 3D LUT Profiles
Gamma & Color Standards: Supports Rec.709, HDR, and HLG Profiles
Software Tool Suite: Luma Waveform, RGB Waveform, Luma Histogram, Peaking, Real-Time Eye Focus, False Color, Zebra, Check Field, Rectangular Crop, Anamorphic De-Squeeze, Frame Guides, Crosshair, Grids, Image Flip, Audio Meters
Navigation Controls: Full Touchscreen UI Gestures & 4x Customizable Top Tactile Function Buttons

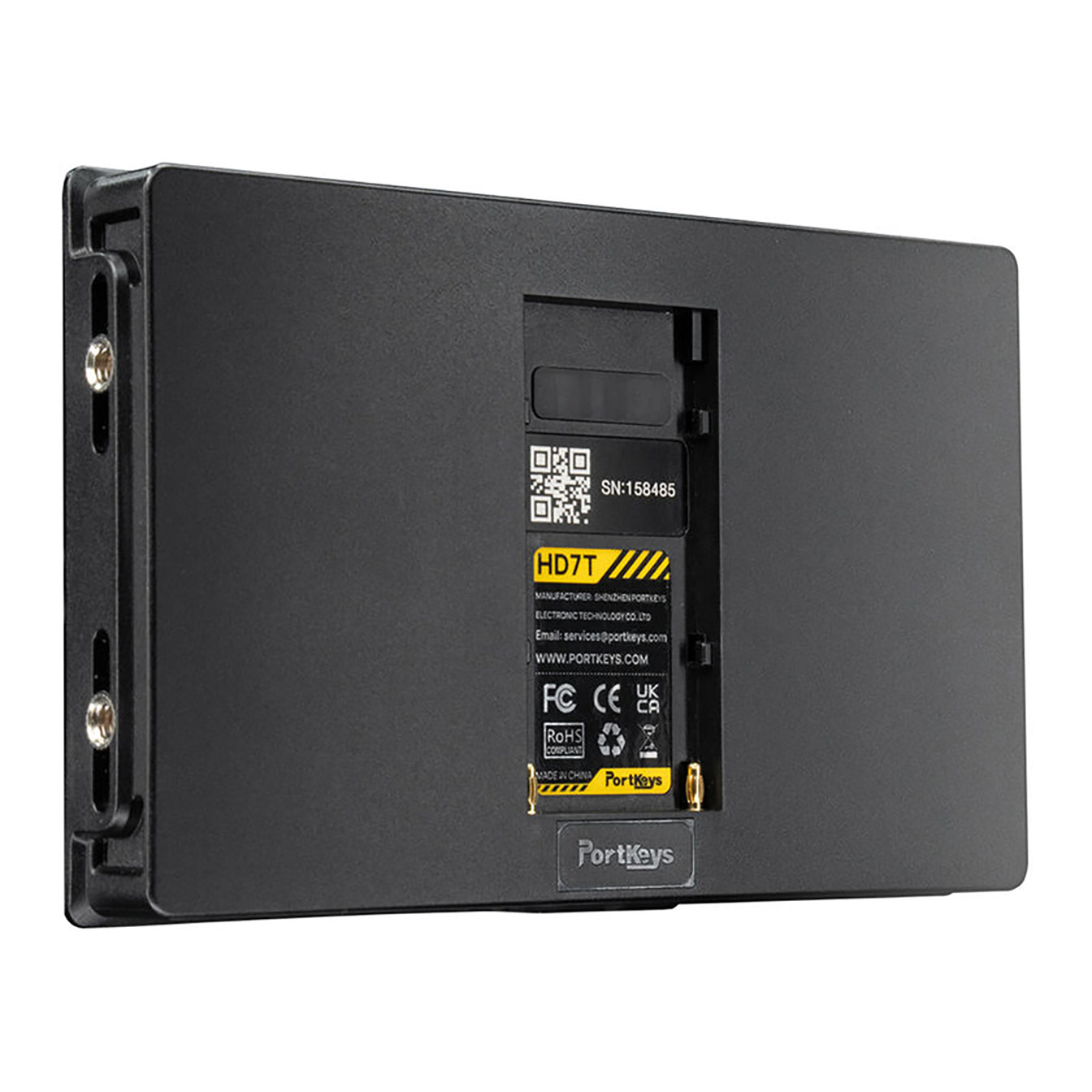

Power Options: Integrated Sony L-Series / NP-F Battery Plate (NP-F550/F750/F970); 1x 5.5×2.1mm DC Barrel Input (7 to 24V DC)

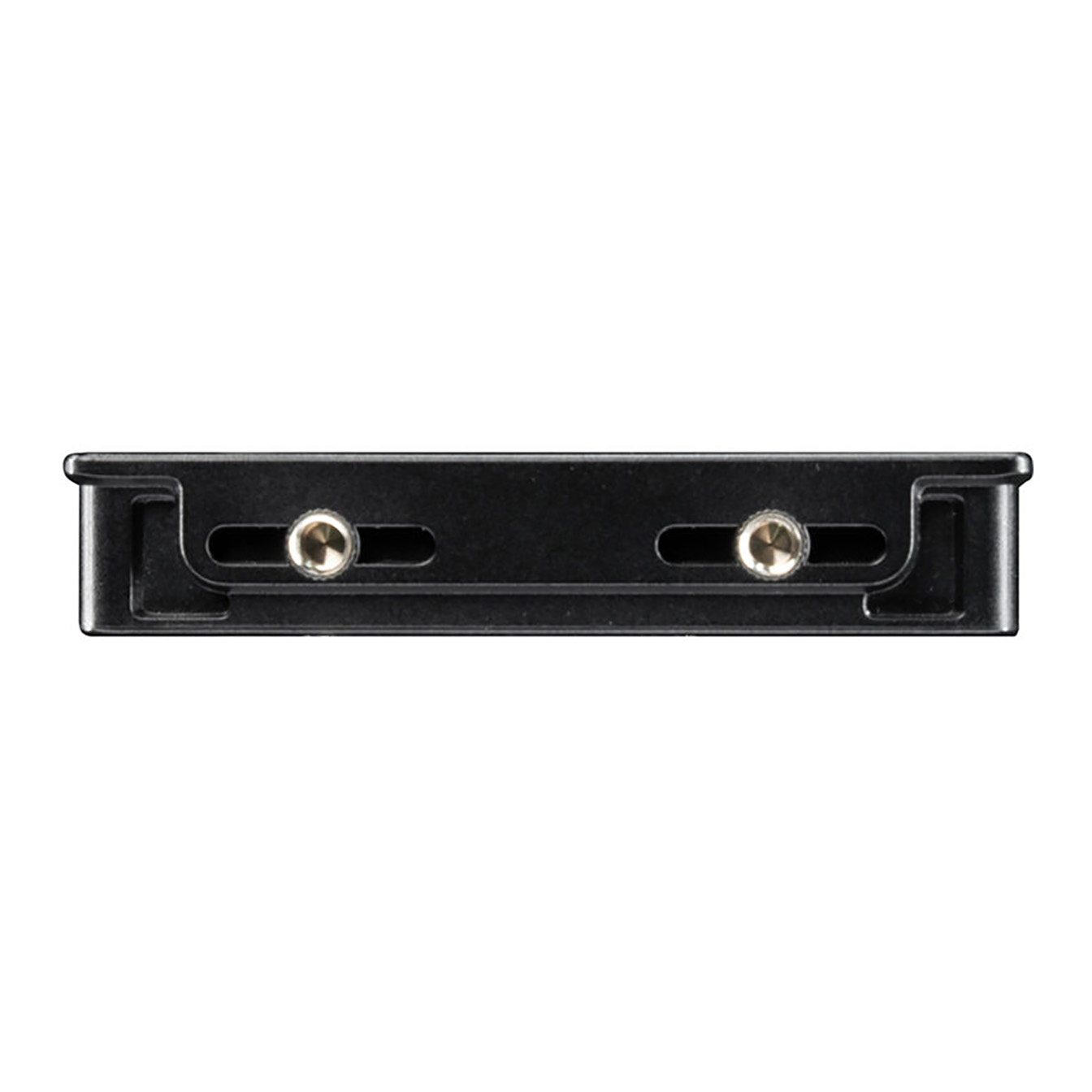

Mounting Points: 3x 1/4″-20 Threaded Sockets (Bottom, Left Side, Right Side)
Included Accessories: Snap-On Rigid Sunhood with Mounting Frame, Cold Shoe Ball Head Adapter
Dimensions: Approx. 7.1 x 4.6 x 1.0 inches / 180.0 x 117.0 x 25.0 mm
Unit Weight: Approx. 11.3 oz / 320 g
Physical Condition: Excellent cosmetic, optical, and fully operational condition (Bench tested)
Finish: Textured Matte Black Engineering Composite Chassis
Function: On-Camera Exposure & Focus Monitoring, Daylight Video Production, 3D LUT Color Management, Gimbal & Shoulder Rigging
